Chapter 2 Contact input/output communication
HRR Series 2.4 Setting and checking
2-7
Set value Explanation
Initial value
(Default setting)
No output signal
―
Operation status signal output
○
Remote status signal output
―
Unused
―
Ready completion (TEMP READY) signal output
―
TEMP OUT (temperature is out of the range) signal output
―
FLT (operation stop) alarm signal output
―
WRN (operation continue alarm) signal output
―
Notice for maintenance signal output
―
Alarm status signal output
―
Pass through signal of the contact input signal 1
―
Pass through signal of the contact input signal 2
―
Selected alarm status signal output
―
Selected notice for maintenance signal output
―
Contact output signal 1 operation

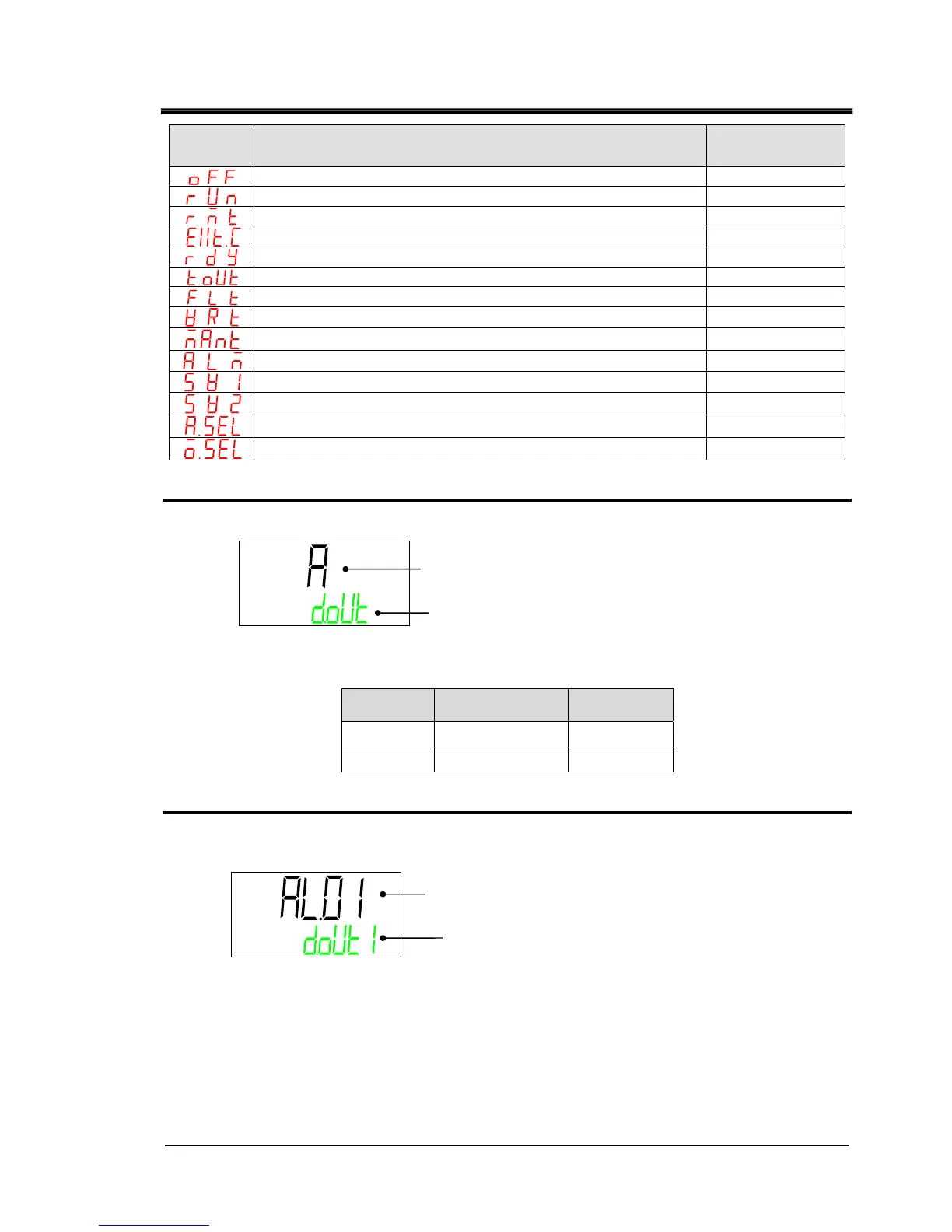

9. Press the [▼] key. Displays screen for setting the operation for the Contact output signal 1.
Select the Contact output signal 1 operation.
Set value Contents
Initial value
A
N.O. type
○
B
N.C. type
―
Contact output signal 1 selected alarm
10. Press the [▼] key. Displays screen for setting the selected alarm for the Contact output
signal 1. The alarm is valid when the “selected alarm status signal output” is active.
Select the alarm No. to be allocated to Contact output signal 1
●Setting range：AL.01～AL.32(Initial value：AL.01)
DOUT ⇒ TYPE(Alternately displayedd)
Contact output signal 1 operation
Contact output signal 1 selected alarm No.
DOUT1 ⇒ ALARM ⇒ CODE(Alternately displayed)
