SMC Networks HRR012-A*-20 Series - Contact Output Signal

HRX-OM-W004
Chapter 2 Contact input/output communication
2.6 Contact output signal HRR Series
2-16
2.6 Contact output signal
There are three contact output signals. As the default setting, contact output
signal 1 is for operating condition (N.O type), contact output signal 2 is for
remote signal (N.O type), and contact output signal 3 is for alarm signal (N.C
type). Refer to Table 2-6-1.Depending on the product condition, contact
output signal is turned on (closed) or turned off (open).
The signals can be customized depending on the customer’s application. The
Table 2.6-2 shows operation of contact output signal.
【Tips】
All contact output signals are turned off (open) when the power is not supplied.

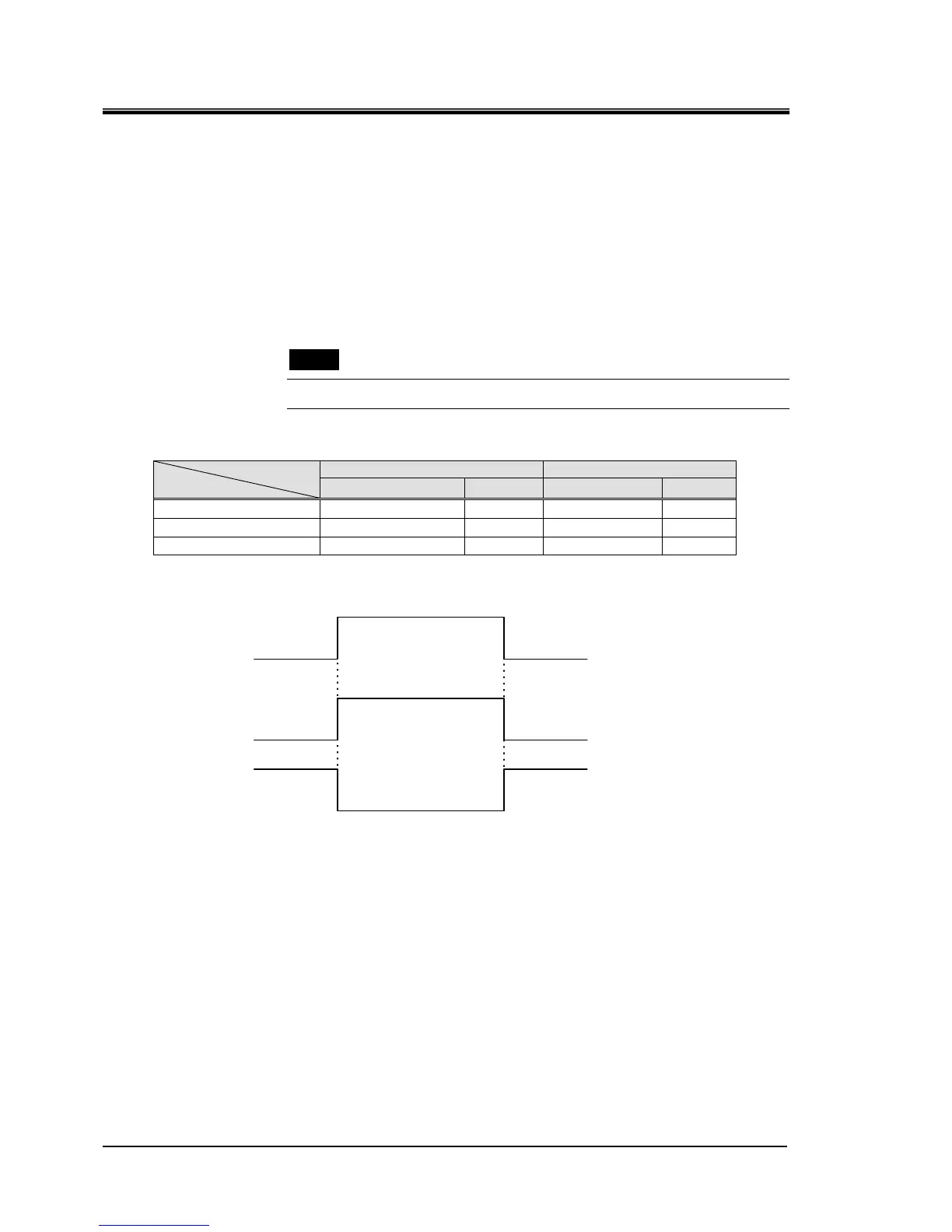

Table2.6-1 Contact output signal (Default setting)
Class of signal Signal configuration
Description Display
Description ∗1
Display
Contact output signal 1 Run status signal RUN
N.O type
A
Contact output signal 2 Remote signal RMT
N.O type
A
Contact output signal 3 Alarm signal ALM
N.C type
B
∗1 N.O.type：normally open (N.O.), N.C.type：normally open (N.O.)
Non ｇeneration（not set）
Generation（set）
ON
OFF
Digital output signal
（N.O type）
Product condition
（Set condition）
ON
OFF
Digital output signal
（N.C type）
