SMC Networks HRR012-A*-20 Series Operation Manual

HRX-OM-W004
Chapter 2 Contact input/output communication
HRR Series 2.4 Setting and checking
2-9
Select the contact output signal 2 operation.
Set value Contents
Initial value
A
N.O. type
○
B
N.C. type
―
Contact output signal 2 selected alarm

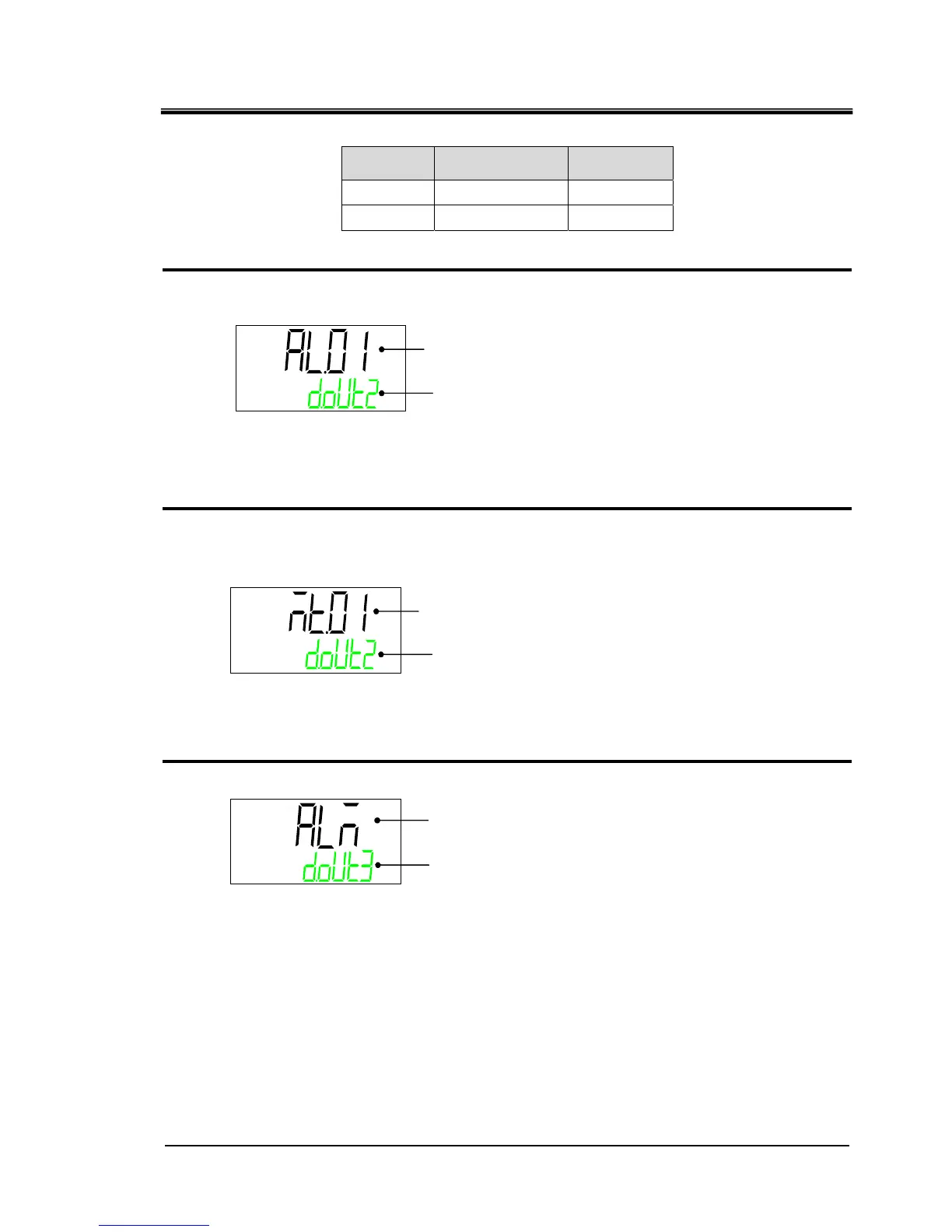

14. Press the [▼] key. Displays screen for setting the selected alarm for the Contact output signal 2.
The alarm is valid when the “selected alarm status signal output” is active.
Select the alarm No. to be assigned to contact output signal 2.
●Setting range：AL.01～AL.32(Initial value：AL.01)
Contact output signal 2 Select maintenance
15. Press the [▼] key. Displays screen for setting the selected maintenance of the Contact
output signal 2. The alarm is valid when the “selected maintenance status signal output” is
selected.
Select the maintenance alarm No. to be allocated to Contact output signal 2.
●
Setting range: MT.01 to MT.05 (Initial value: MT.01)
Contact output signal 3 Select function
16. Press the [▼] key. Displays screen for setting the function of the Contact output signal 3
Select
contact output signal 3 function
Contact output signal 2 selected alarm No.
DOUT2 ⇒ ALARM ⇒ CODE(Alternately displayed)
Contact output signal 2 Selected maintenance alarm No.
DOUT2 ⇒ MANT ⇒ CODE(Alternately displayed)
Contact output signal 3 function
DOUT3 ⇒ SEL(Alternately displayed)
