HRX-OM-W004
Chapter 2 Contact input/output communication
2.4
Setting and checking HRR Series
2-10

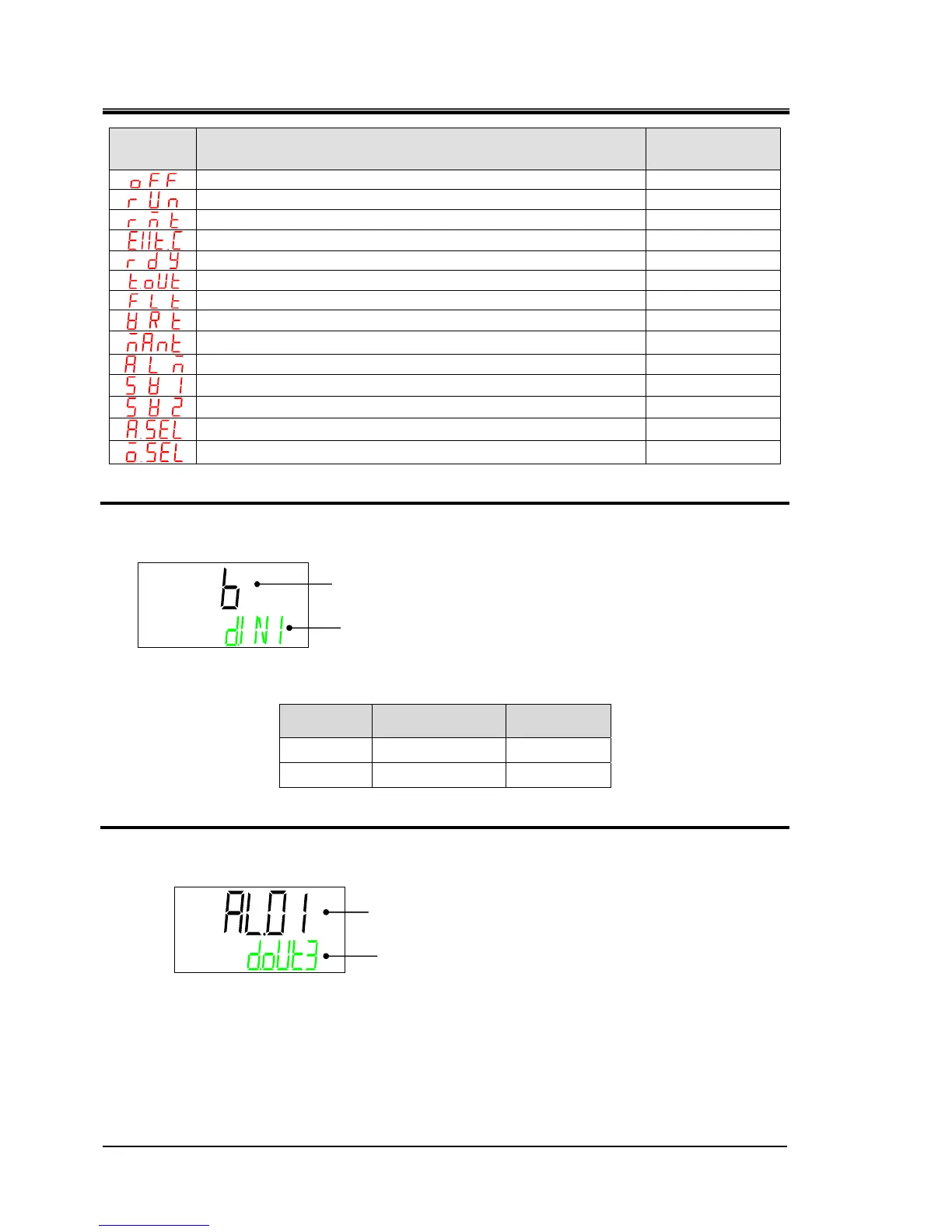

Contact output signal 3 operation
17. Press the [▼] key. Displays screen for setting the operation of the Contact output
signal 3.
Contact output signal 3 operation
Set value Contents
Initial value
A
N.O. type
―
B
N.C. type
○
Contact output signal 3 select alarm
18. Press the [▼] key. Displays screen for setting the selected alarm of Contact output
signal 3. The alarm is valid when the “selected alarm status signal output” is active.
Select the alarm No. to be allocated to Contact output signal 3
●Setting range: AL.01 to AL32 (Initial value: AL01)
Set value Explanation
Initial value
(Default setting)
No output signal
―
Operation status signal output
―
Remote status signal output
―
Unused
―
Ready completion (TEMP READY) signal output
―
TEMP OUT (temperature is out of the range) signal output
―
FLT (operation stop) alarm signal output
―
WRN (operation continue alarm) signal output
―
Notice for maintenance signal output
―
Alarm status signal output
○
Pass through signal of the contact input signal 1
―
Pass through signal of the contact input signal 2
―
Selected alarm status signal output
―
Selected notice for maintenance signal output
―
DOUT ⇒ TYPE(Alternately displayed)
Contact output signal 3 operation
Contact output signal 3 selected alarm No.
DOUT3 ⇒ ALARM ⇒ CODE(Alternately displayed)
