3.3 Outside dimension diagram

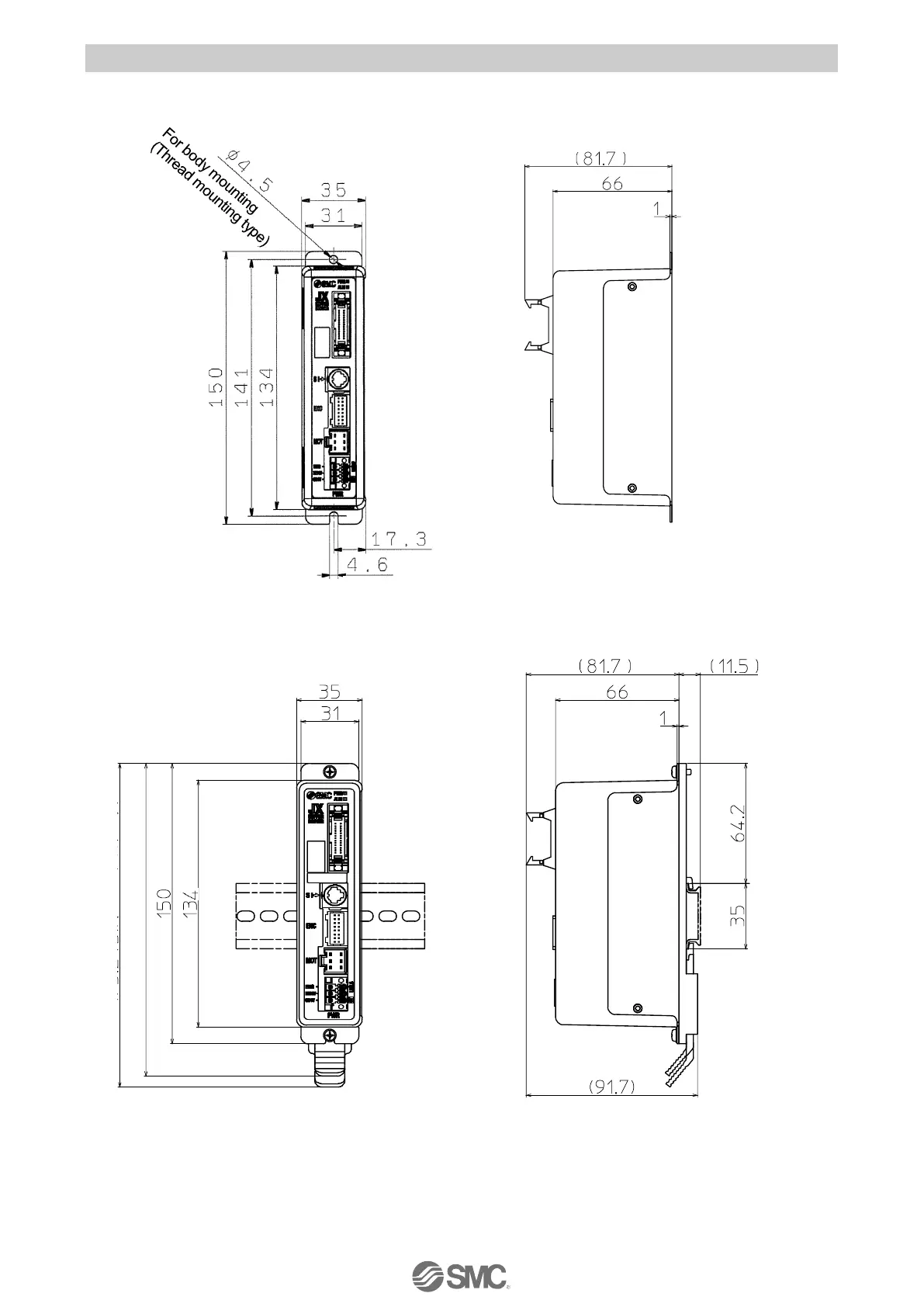

The outside view of this product is as shown in the diagram below:
(1) Screw mount type （JXC517#-#, JXC617#-#）
(2) DIN rail mount type （JXC518#-#, JXC618#-#）
For body mounting
(Thread mounting type)
DIN rail (35mm)
can be mounted
167.3 (when DIN rail is locked)
167.3 (when DIN rail is locked)
