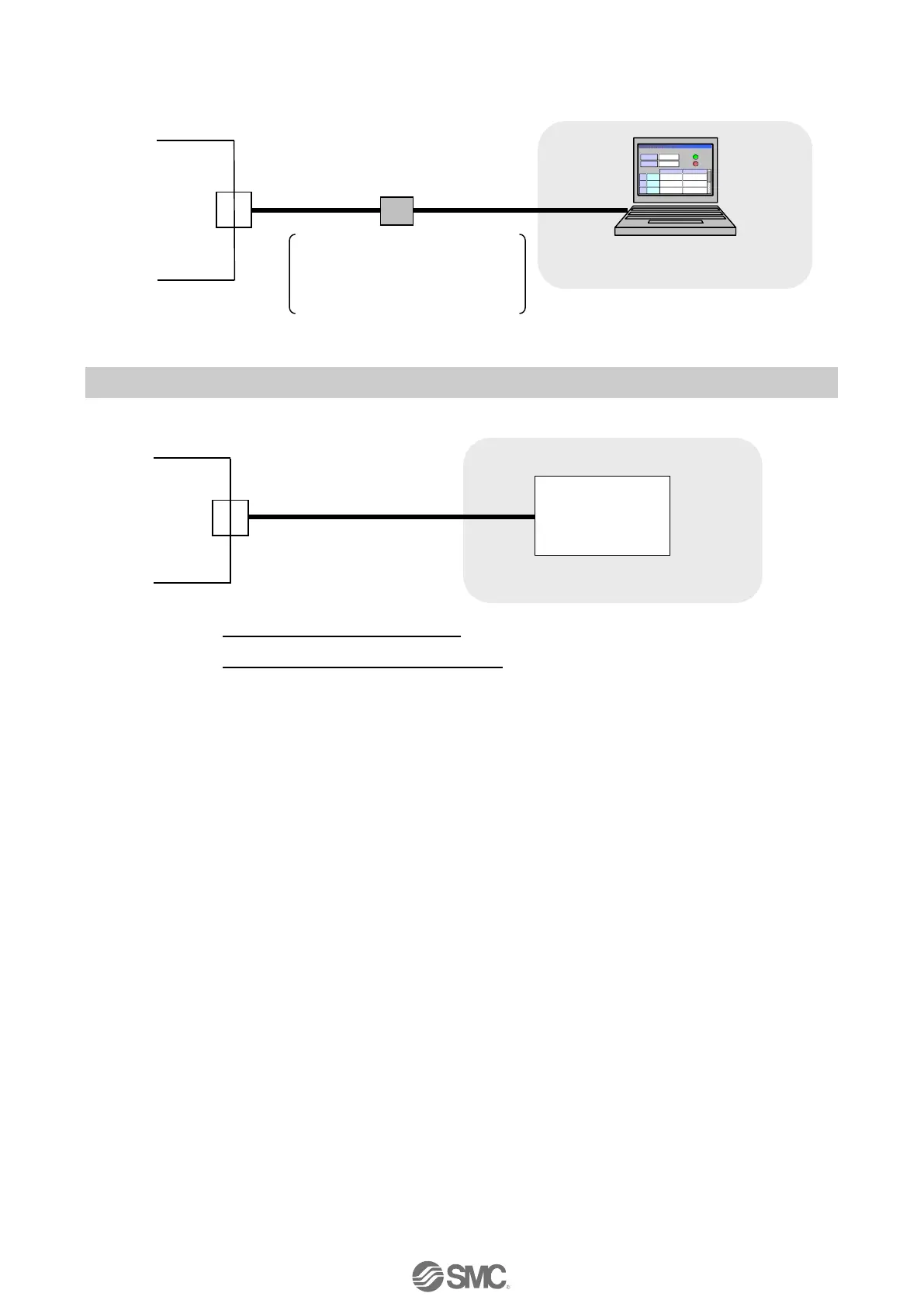

(2) Connection with a PC
Controller
SI
4.4 Parallel I/O connector
Controller
I/O cable
Parallel I/O
connector
Please refer to "6.4 Parallel I/O Wiring Example" for how to wire the Parallel I/O connector.
Please refer to "6.3 The parallel I/O signal is detailed" for details of each signal of parallel I/O.
位置 速度
100
500
200
1000
50
200
1
2
3
ﾃｽ ﾄ
ﾃｽ ﾄ
ﾃｽ ﾄ
現在位 置
120 .3
現在速 度
200
mm
mm/s
動作中
アラー ム
モニタ
設定
位置 速度
100
500
200
1000
50
200
1
2
3
ﾃｽ ﾄ
ﾃｽ ﾄ
ﾃｽ ﾄ
現在位 置
120 .3
現在速 度
200
mm
mm/s
動作中
アラー ム
モニタ
設定
USB cable
(A-miniB type connector)
When using the LEC-W2, it is
necessary to connect a conversion
unit (P5062-5) to the
communication cable.
Communication
cable
