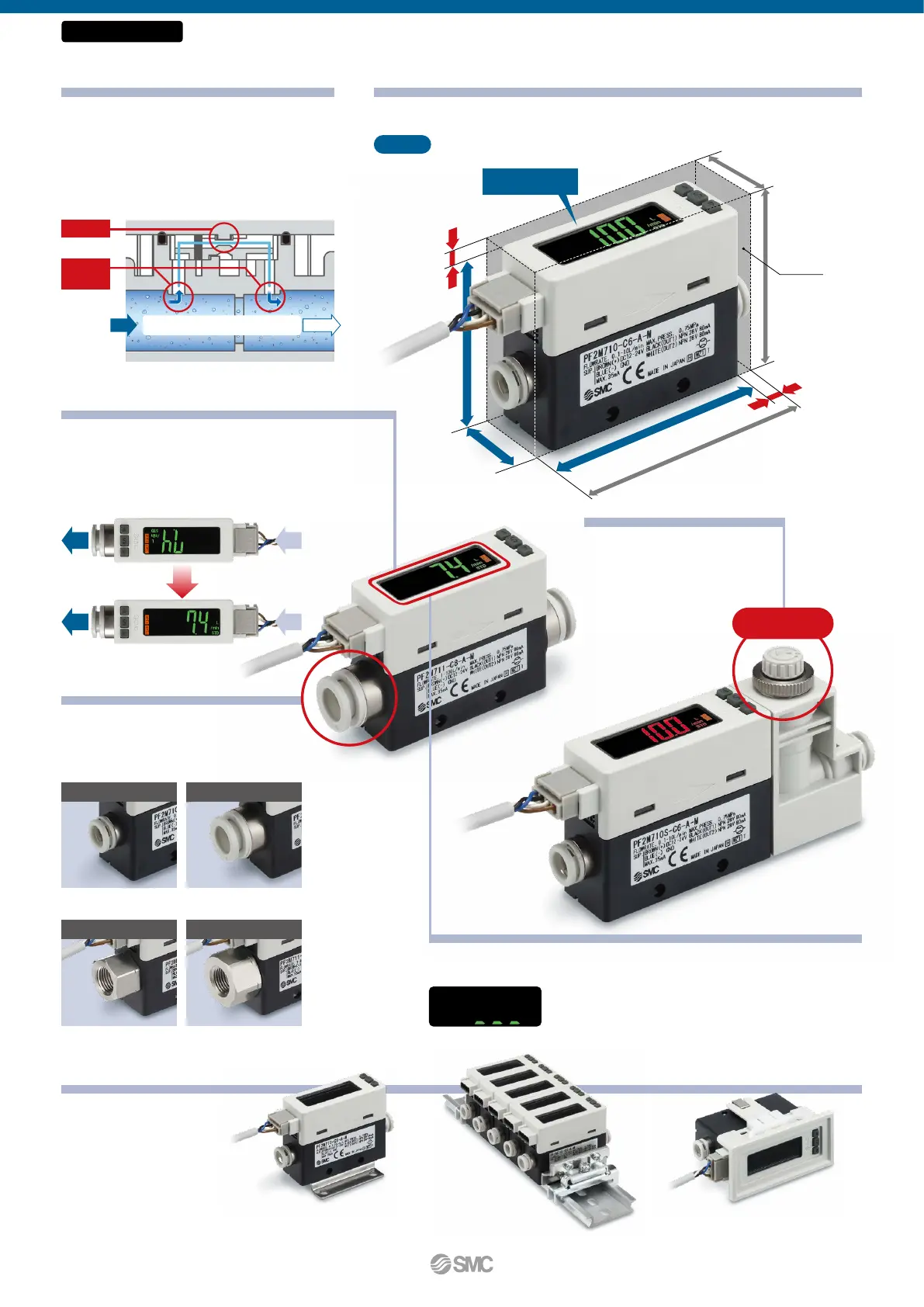

Air containing moisture or foreign matter
IN OUT
Bypass
construction
Sensor unit
Mounting
variations
A flow adjustment
valve is integrated
into the product.
Piping variations
¡One-touch fitting
* ø4: Made to order (Produced upon receipt of order)
¡Female thread
Reversible display mode
When the product is mounted upside down, the
orientation of the display can be rotated to make it
easier to read.
DIN railBracket P
anel mounting
Straight,
ø6
Straight,
ø8
Rc, NPT, G
1/8
Rc, NPT, G
1/4
IN
IN
OUT
OUT
Reversible display
mode setting
¡ Space-saving
design
¡ Reduced piping
labor
Flow adjustment
valve
Display OFF mode
LEDs can be turned off and checked when necessary.
The product can also be used as a remote sensor.
The bypass construction reduces the moist air or
foreign matter in contact with the sensor, reducing
sensor accuracy deterioration and damage.
Improved resistance to
moisture and foreign matter
Compact, Lightweight
27.3% lighter (55 g a 40 g)
59.9
64.6
18
18
38.5
4.5
mm
shorter
Height
43
PFM7
Length
4.7
mm
shorter
PF2M7
Weight
* Port size: ø6
* There is no bypass construction for the 1 and 2 L ranges.
1
2-Color Display
Digital Flow Switch PF2M7(-L) Series
