SMC Networks PF2M7 Series Manual

Female thread
PF2M705/710/725/750-C4/C6 (-L)
w q e r t y u i o r
PF2M711-C8 (-L)
PF2M701/702 (-L) PF2M711S (-L)
!0
!1
!4
!5
!3
!2
w
e w

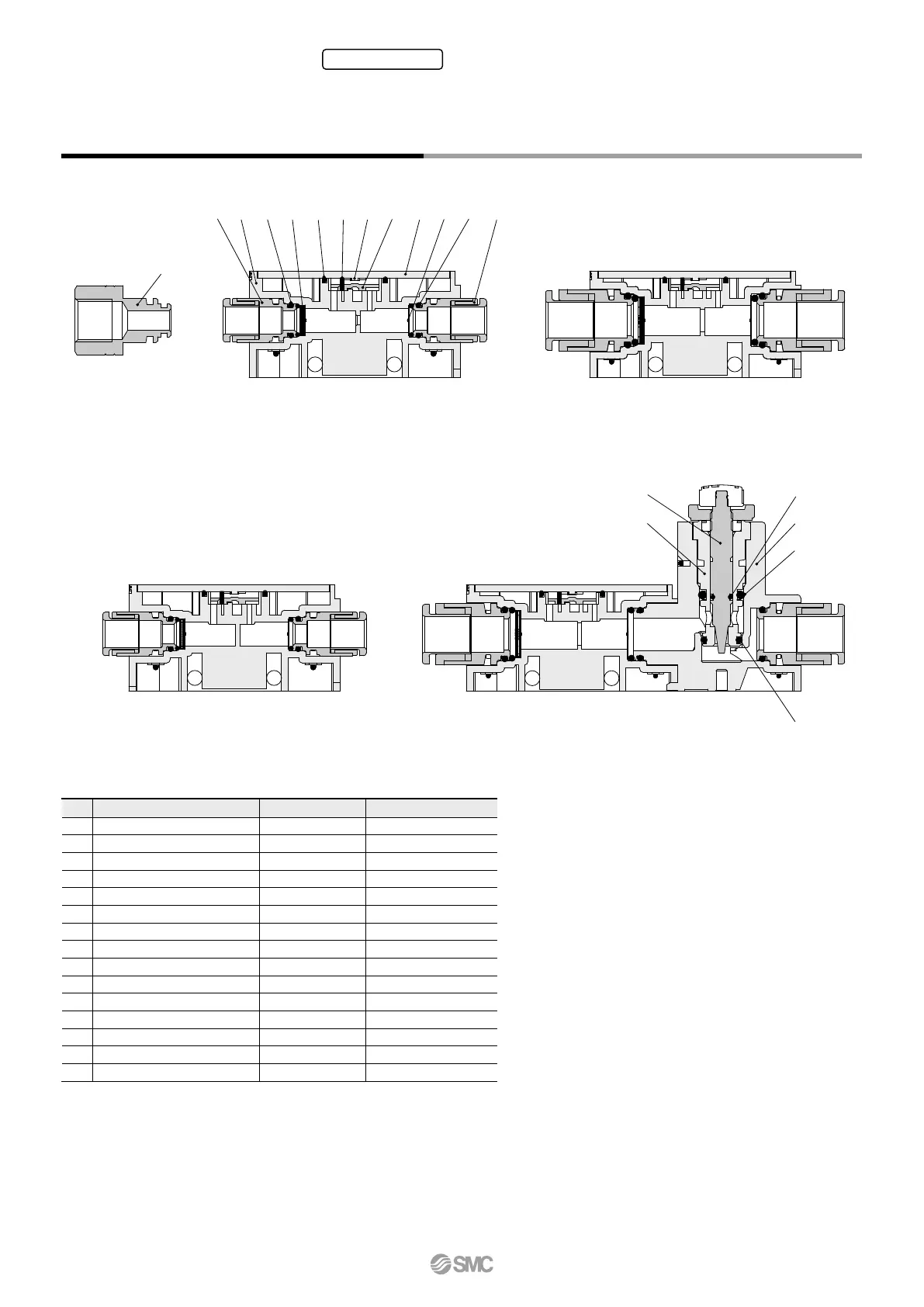

Construction: Parts in Contact with Fluid
Component Parts
No. Description Material Note
1 Body PPS
2 Fitting for piping Brass Electroless nickel plating
3 O-ring FKM
4 Flow rectifier Stainless steel 304
5 Seal FKM
6 Flow rectifier Stainless steel 304
7 Sensor chip Silicon
8 Body B PPS
9 Printed circuit board GE4F
10 O-ring FKM Fluoro coating
11 Flow adjustment valve body PBT
12 Body Brass Electroless nickel plating
13 Needle Brass Electroless nickel plating
14 O-ring FKM Fluoro coating
15 O-ring FKM Fluoro coating
PF2M701/702/705/710/725/750/711(-L)
* There is no bypass construction for the 1 and 2 L ranges.
18
2-Color Display
Digital Flow Switch
PF2M7(-L) Series
