Configuring Your Gateway
49
SMCD3GN2 Wireless Cable Modem User Manual

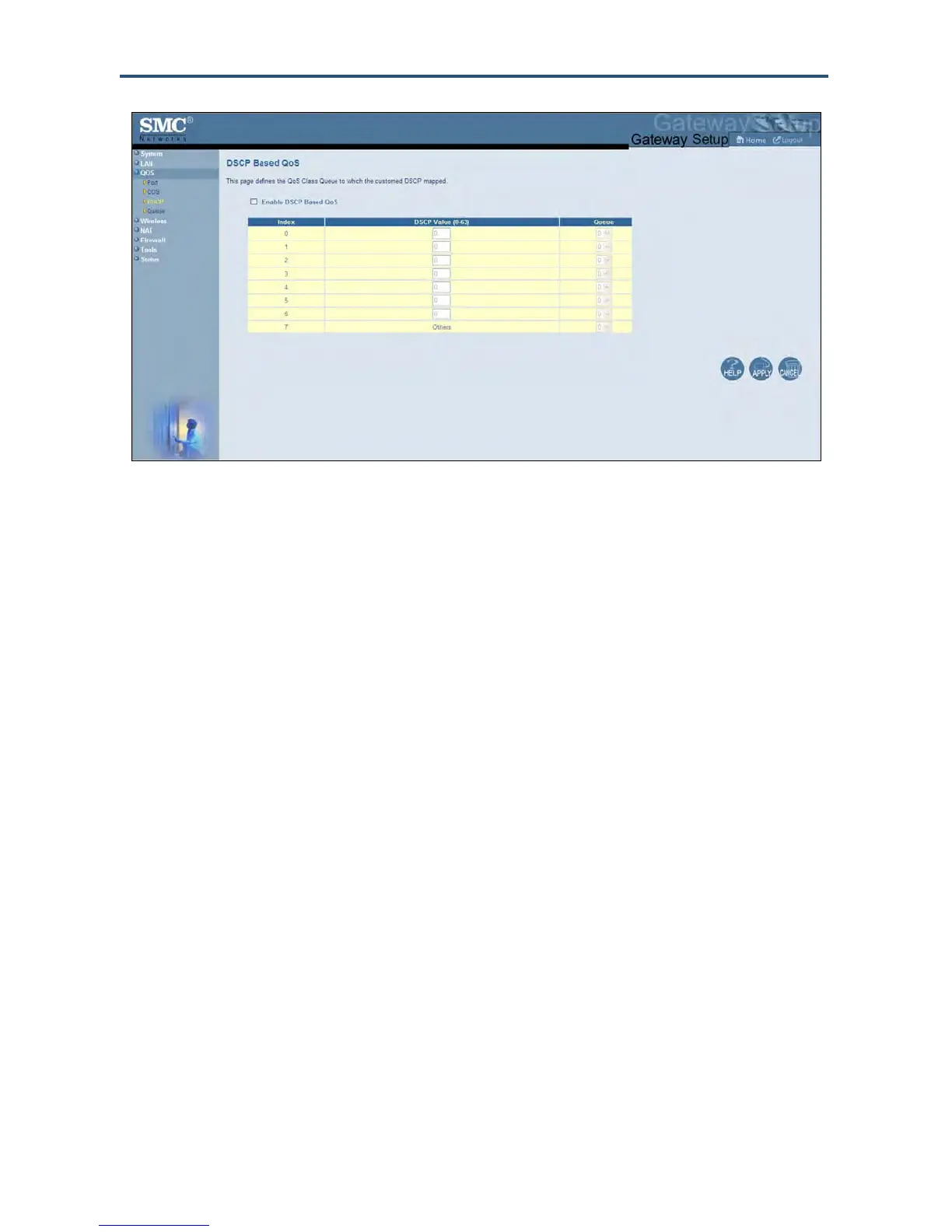

Figure 26. DSCP Based QoS Menu
To define DSCP-based QoS settings:
1. Check Enable DHCP Based QoS.
2. For each index, enter a DSCP value from 0 to 63.
3. Under Queue, select a queue (from 0 to 3) you want to map to this DSCP value. Higher
priority values are evaluated as being of higher importance than lower priority values.
4. To define DSCP-based QoS values for other queues, repeat steps 2 and 3.
5. Click Apply.
