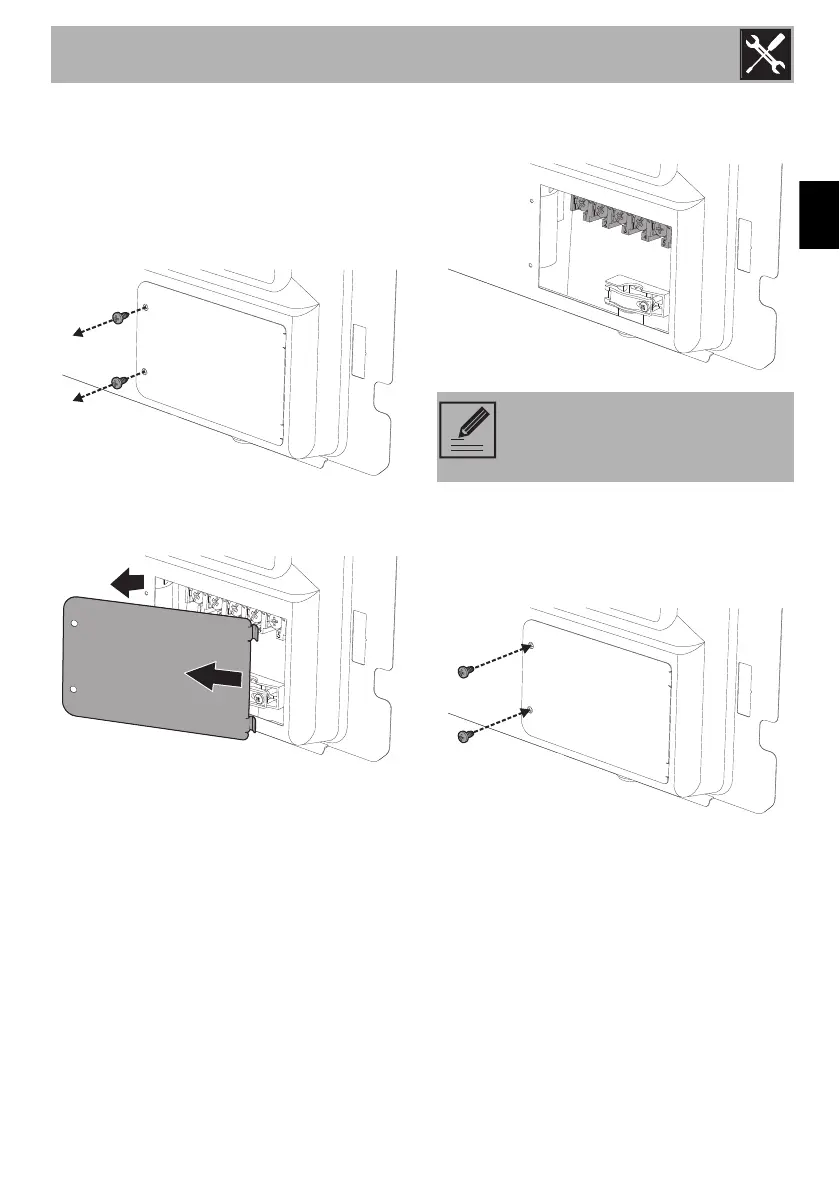

Accessing the terminal board
To connect the power supply cable, you
must access the terminal board on the rear
casing:
1. Remove the screws fastening the plate to
the rear casing.
2. Gently rotate the plate and remove it
from its seat.
3. Proceed with installation of the power
supply cable.
4. When finished, replace the plate on the
rear casing and secure it in place using
the screws that were previously
removed.
It is recommended to slacken off
the cable clamp screw before
installing the power supply cable.
