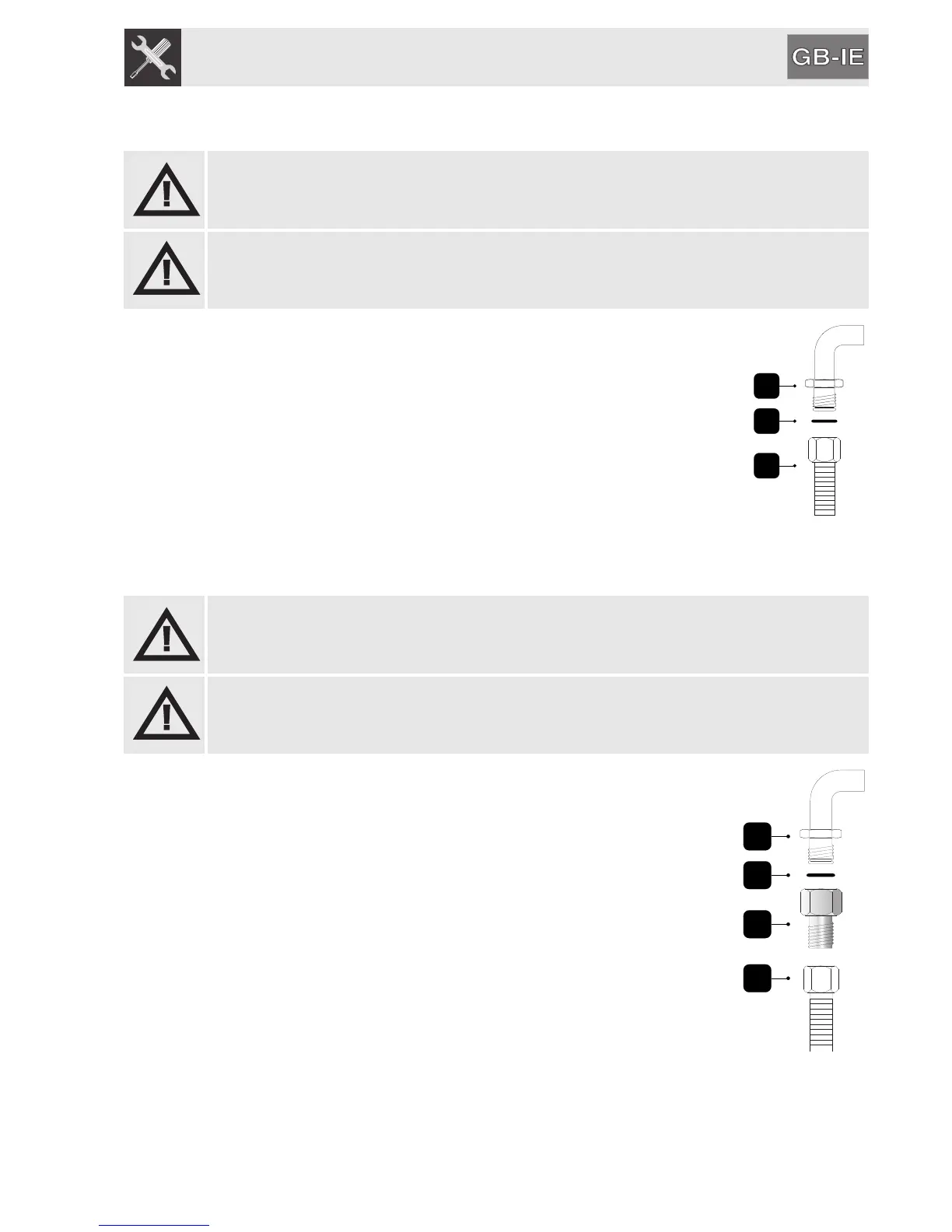

Instructions for the installer
99
11.3.2 Connection with a flexible steel hose
WARNING: The following instructions are valid for all types of installation,
see fig. A, B, C in chapter “11.1 Installing in kitchen units”.
Only use standards-compliant continuous wall steel hoses no longer than 2
metres.
This type of installation can be used for both built-in and free-
standing appliances.
Make the connection to the gas mains using a continuous wall
flexible steel hose whose specifications comply with the
applicable standard.
Carefully screw the connector 3 to the appliance’s gas connector
1 (1/2” thread ISO 228-1), placing the seal 2 between them.
11.3.3 Connection with a flexible steel hose with conical fitting (where
present)
WARNING: The following instructions are valid for all types of installation,
see fig. A, B, C in chapter “11.1 Installing in kitchen units”.
Only use standards-compliant continuous wall steel hoses no longer than 2
metres.
This type of installation can be used for both built-in and free-
standing appliances.
Make the connection to the gas mains using a continuous wall
flexible steel hose whose specifications comply with the
applicable standard.
Carefully screw the connector 3 to the appliance’s gas
connector 1 (½” thread ISO 228-1), placing the seal 2 between
them. Apply insulating material to the thread of the connector 3,
and then tighten the flexible steel hose 4 to the connector 3.
2
1
3
2
1
4
3
