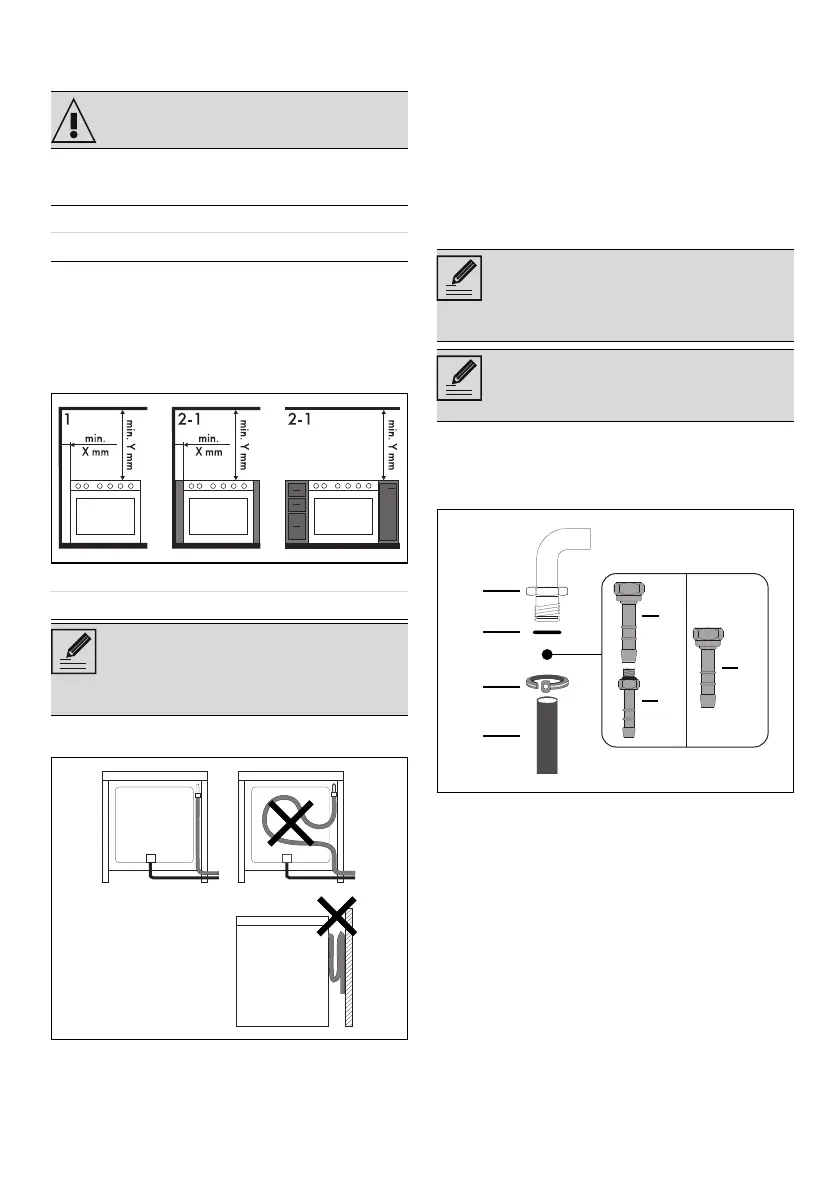

Positioning
Depending on the type of installation, this
appliance belongs to classes:
The appliance can be placed against walls that
are higher than the work surface, at a minimum
distance of X mm from the side of the appliance.
Any wall units installed above the appliance’s
worktop must be positioned at least Y mm from
it.
Connection with a rubber hose
Verify that all following conditions are met:
• The hose is attached to the hose connector
with safety clamps
• No part of the hose is in contact with hot
walls (max. 50 °C)
• The hose is not under traction or tension and
has no kinks or twists
• The hose is not in contact with sharp objects
or sharp corners
• If the hose is not perfectly airtight and leaks
gas, do not try to repair it; replace it with a
new hose
• verify that the hose is not past its expiry date
(serigraphed on the hose itself).
Make the connection to the gas mains using a
rubber hose whose specifications comply with
current standards (verify that the reference
standard is stamped on the hose).
Carefully screw the hose connector 3 onto the
appliance’s gas connector 1 (½” thread ISO
228-1), placing the seal 2 between them. Hose
connector 4 can also be screwed to hose
connector 3, depending on the diameter of the
gas hose used.
After tightening the hose connector(s), push gas
hose 6 onto the hose connector and secure it
with the clamp 5, which must be compliant with
current regulations.
Connection with a steel hose
Make the connection to the gas mains using a
continuous wall steel hose whose specifications
See General safety instructions.
Class 1 Free-standing
Class 2 - subclass 1 Built-in
X 150 mm
Y 750 mm
If a hood is installed above the
appliance, refer to the hood instructions
manual to make sure the correct
clearance is left.
üü
Connection using a rubber hose
complying with current standards is only
permitted if the hose can be inspected
along its entire length.
The inside diameter of the hose must be
8 mm for LPG and 13 mm for Natural
gas and Town gas.
1
2
5
6
3
3
4
