INSTALLATION - 6191477A418/A
e
The nozzles not provided are available at Authorised Service Centres.

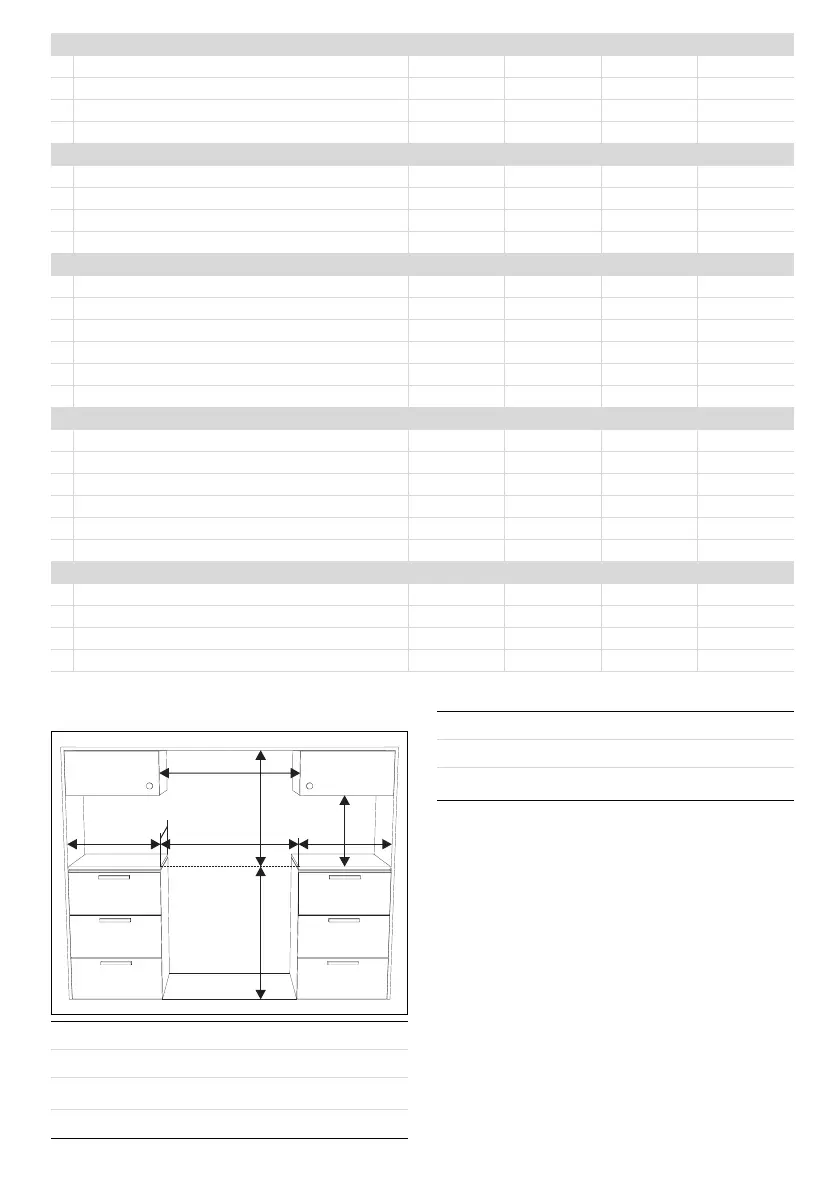

Appliance overall dimensions
1
Minimum distance from side walls or other
flammable material.
2
Minimum cabinet width (=A)
3 Natural Gas G25.1 - 25 mbar AUX SR R UR2
Rated heating capacity (kW) 1.1 1.8 3.0 4.1
Nozzle diameter (1/100 mm) 77 100 134 152
Pre-chamber (printed on nozzle) (F1) (Y) (F3) (F3)
Reduced flow rate (W) 400 500 800 1200
4 Natural Gas G2.350 - 13 mbar AUX SR R UR2
Rated heating capacity (kW) 1.0 1.75 2.9 3.7
Nozzle diameter (1/100 mm) 94 120 165 190
Pre-chamber (printed on nozzle) (Y) (Y) (F3) (F3)
Reduced flow rate (W) 400 500 800 1200
5 LPG G30/31 - 30/37 mbar AUX SR R UR2
Rated heating capacity (kW) 1.0 1.8 3.0 4.0
Nozzle diameter (1/100 mm) 50 65 85 100
Pre-chamber (printed on nozzle) - - - -
Reduced flow rate (W) 400 500 800 1300
Rated flow rate G30 (g/h) 73 131 218 291
Rated flow rate G31 (g/h) 71 129 214 286
6 LPG G30/31 - 37 mbar AUX SR R UR2
Rated heating capacity (kW) 1.1 1.9 3.0 4.2
Nozzle diameter (1/100 mm) 50 65 81 95
Pre-chamber (printed on nozzle) - - - -
Reduced flow rate (W) 450 550 900 1500
Rated flow rate G30 (g/h) 80 138 218 305
Rated flow rate G31 (g/h) 79 136 214 300
7 Town gas G110 – 8 mbar AUX SR R UR2
Rated heating capacity (kW) 1.0 1.75 2.8 3.3
Nozzle diameter (1/100 mm) 145 185 260 340
Pre-chamber (printed on nozzle) (/8) (/2) (/3) 0190
Reduced flow rate (W) 400 500 800 1000
A 900 mm
B 600 mm
C
1
min. 150 mm
D 873 ÷ 913 mm
LL
HH
II
CC CC
AA
BB
DD
H 750 mm
I 450 mm
L
2
900 mm
