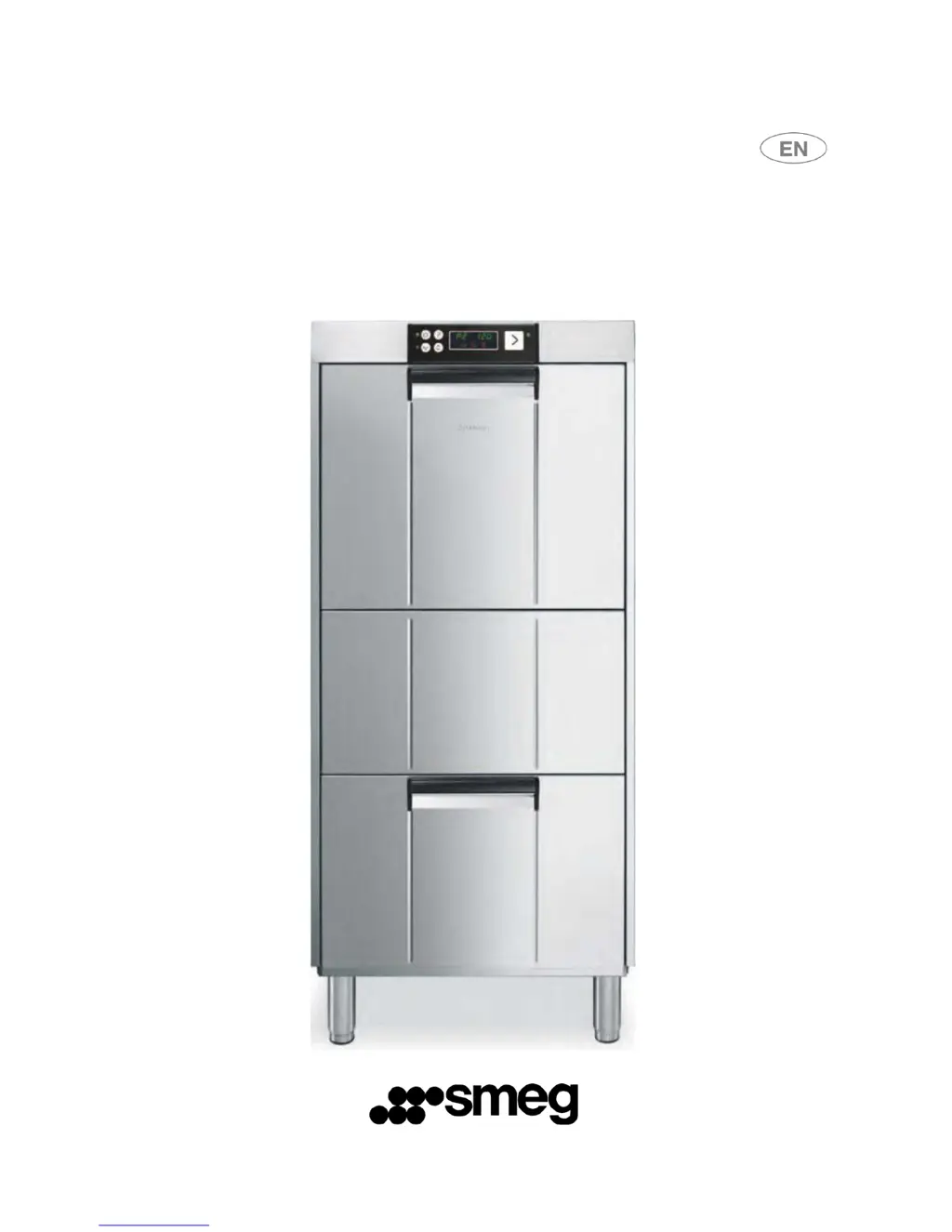

PROFESSIONAL DISHWASHER

Table of Contents

Questions and Answers

  • L
    lisa22Aug 2, 2025
    What to do if my Smeg CWH520D dishes are not properly dried?
    • O
      oliAug 2, 2025
      If your Smeg Dishwasher dishes are not drying properly, it could be due to unsuitable rinse aid or incorrect delivery, or water hardness being above 12°dF or large amounts of dissolved salts. Check the rinse aid container to ensure it's suitable for your water type. Try restoring T Stop ON and/or connecting the appliance to a hot water supply. If the problem persists, contact the after-sales service.
  • W
    william52Aug 6, 2025
    What to do if washing program does not start on Smeg Dishwasher?
    • J
      Justin EdwardsAug 6, 2025
      If the washing program on your Smeg Dishwasher does not start, it could be because the dishwasher has not yet finished filling; wait for the word FILL to disappear. Alternatively, if the word CLOSE remains on the display even with the door closed, call the after-sales service.
  • C
    Carol JonesAug 11, 2025
    What to do if my Smeg CWH520D Dishwasher has inadequate rinsing?
    • S
      Sarah FloresAug 11, 2025
      Inadequate rinsing in your Smeg Dishwasher can be caused by unsuitable rinse aid or incorrect delivery, or the rinsing temperature being too low. Check the container of rinse aid and whether it is suitable for the type of mains water. Check boiler temperature setting. If the problem persists, contact the after-sales service.
  • M
    Mary RushAug 15, 2025
    Why are there stains on glasses and cutlery in my Smeg CWH520D Dishwasher?
    • J
      Jonathan BallardAug 15, 2025
      Stains on glasses and cutlery in your Smeg Dishwasher may be caused by a drain hose that is incorrectly positioned or partially obstructed. Check that the dishwasher drain hose and rain are unobstructed and the drain is not too high up; see connection diagram.
  • S
    Sheri NortonAug 25, 2025
    Why is there water in the tank of my Smeg CWH520D Dishwasher after pump-out?
    • T
      Timothy BensonAug 25, 2025
      If there is water in the tank of your Smeg Dishwasher after pump-out, the drain hose may be incorrectly positioned or partially obstructed. Check that the dishwasher hose and drain are unobstructed and the drain is not too high up; see connection diagram.
  • V
    Vanessa SchwartzSep 10, 2025
    How to fix light S1 if it does not come on in Smeg Dishwasher?
    • M
      Megan JonesSep 12, 2025
      If light S1 does not come on in your Smeg Dishwasher, it may be due to a mains power failure. Check the electrical mains connection.
  • T
    Theresa RobinsonOct 28, 2025
    Why are there poor washing results from my Smeg Dishwasher?
    • R
      ruizjaredOct 28, 2025
      Poor washing results from your Smeg Dishwasher can occur for several reasons: * Spray arm washing holes may be blocked by dirt or limescale. Remove the spray arms and clean them. * The filter may be fouled; clean the filter. * You might be using too little or unsuitable detergent or rinse aid. Check the type and quantity of detergent you are using. * There may be no or not enough detergent or rinse aid being supplied because the pipe inside the detergent and/or rinse aid peristaltic pump is worn or broken. Have it replaced by the After-Sales Service. * Plates/glasses may be badly arranged; arrange them correctly. * The washing temperature may be low; check the temperature shown on the display and call the after-sales service if it is less than 50. * You may have set an inapp...

Summary

PRECAUTIONS FOR SAFETY AND USE

INSTALLATION AND POSITIONING

Plumbing hookup

Instructions for connecting the water supply and drain for the dishwasher.

INSTRUCTIONS FOR TECHNICAL STAFF

Electrical connection

Guidelines for safely connecting the dishwasher to the electrical system.

FIRST START-UP

Preparing for use (important)

Steps to prepare the dishwasher for operation, including dispensers.

SET-UP

Dishwasher parameter modification procedure

Step-by-step guide to access and modify dishwasher settings.

Rinsing temperature setup

How to set the desired rinsing temperature for the dishwasher.

Washing temperature setup

How to set the desired washing temperature for the dishwasher.

Quantity of rinse aid dispensed

Adjusting the amount of rinse aid dispensed per cycle.

Quantity of detergent dispensed

Adjusting the amount of detergent dispensed per cycle.

MALFUNCTIONS SHOWN ON THE DISPLAY (FOR THE TECHNICIAN)

INSTRUCTIONS FOR THE USER

Control panel

Explanation of the dishwasher's control panel buttons and indicators.

First use each day (tank and boiler empty)

TROUBLESHOOTING

LIGHT S1 DOES NOT COME ON

WASHING PROGRAM DOES NOT START

POOR WASHING RESULTS

Diagnosing and fixing issues related to inadequate washing performance.

INADEQUATE RINSING

DISHES NOT PROPERLY DRIED

STAINS ON GLASSES AND CUTLERY

WATER IN TANK AFTER PUMP-OUT

MALFUNCTIONS SHOWN ON THE DISPLAY (FOR THE USER)

Err01

Anti-flooding system activation error.

Err04

Tank temperature probe malfunction error.

Err05

Tank water filling malfunction error.

Err06

Water pump-out malfunction error.

Err09

Tank water level too high error.

Err23

Err24

Err25

Err26

Err27

Err28

Smeg CWH520D Specifications

General IconGeneral
TypeFreestanding
Noise level47 dB(A)
Number of programs5
Half Load OptionYes
InstallationFreestanding
Water Consumption11 L
Delay StartYes
Dimensions (H x W x D)84.4 x 60 x 60 cm
