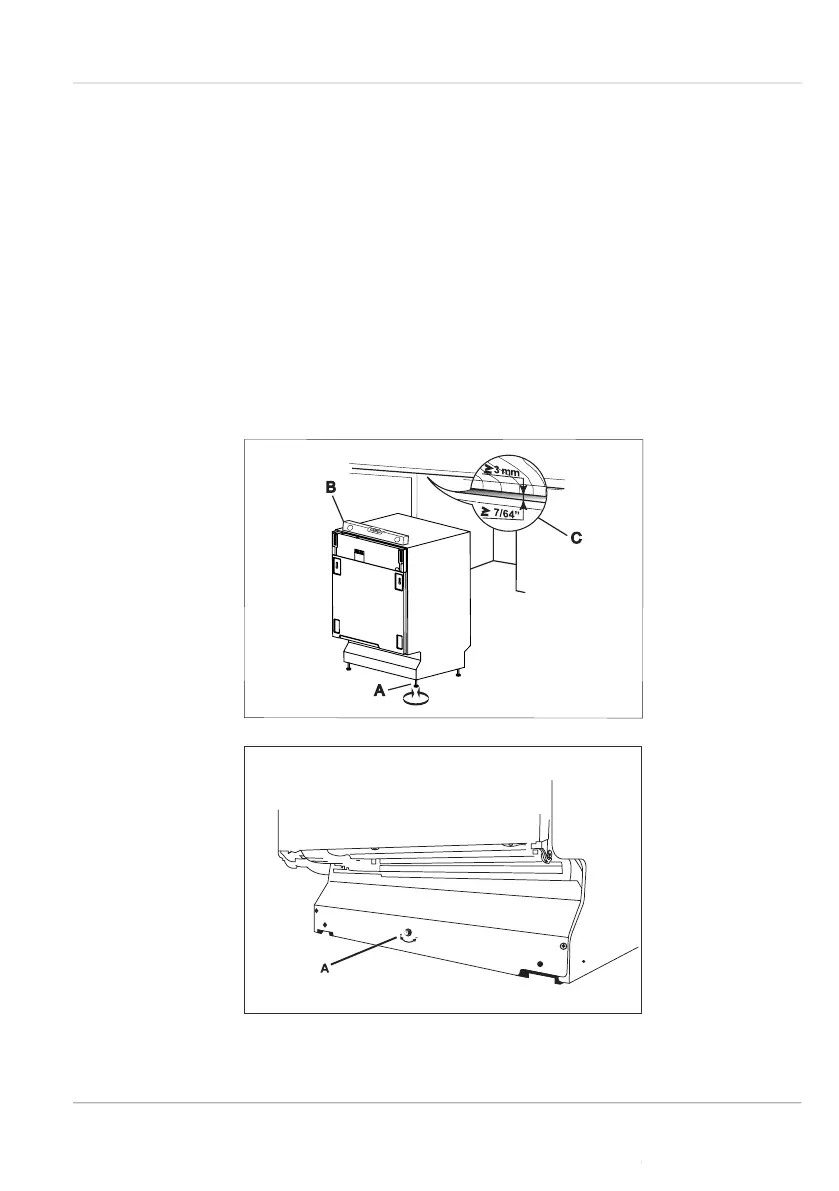

Level the appliance using the relative adjustable feet (e.g.: ref. A fig. 5);
use an open-ended wrench to rotate the feet until the dishwasher is
perfectly level. Some models are fitted with just one rear foot which can be
adjusted with a screw located at the bottom front of the appliance (ref. A
fig. 6); use a suitable Phillips screwdriver to turn the screw until the
dishwasher is perfectly level.
Use a spirit level to check the appliance is perfectly level (ref. B fig.
6).Leveling is vital for assuring correct dishwasher operation.
Make sure to leave a gap of at least 3 mm (7/64”) between the top of the
dishwasher and the worktop (ref. C fig. 6).
INSTALLATION INSTRUCTION
Fig. 6
Fig. 5
5.1 Leveling
EN
12
