5.3.2 Door panel assembly procedure
(fully integrated)
Mount the door panel.

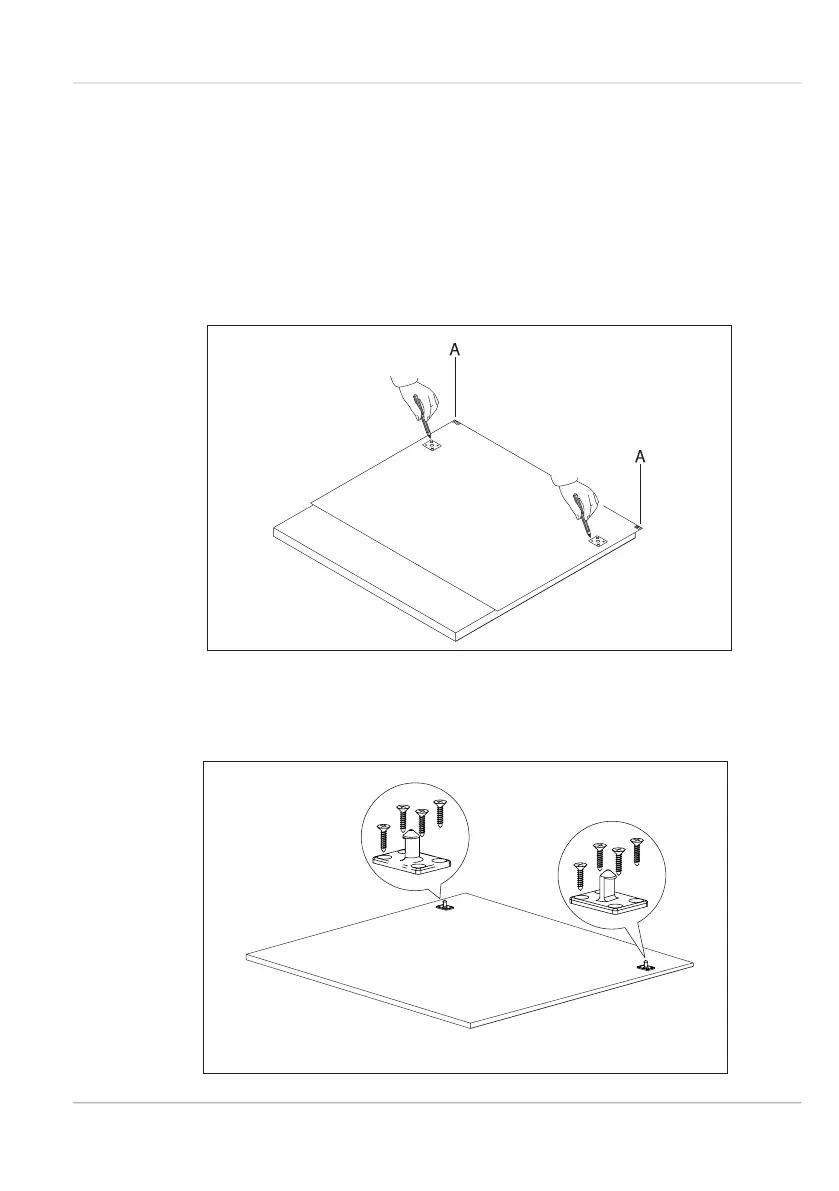

Place the template on the inner surface of the panel, centering it along the
upper side and matching up the reference locators (ref. A Fig. 24); mark
the position of the door hooks with a pencil (see Fig. 24). Remove the
template and use a drill with a suitable bit to make holes at the points
marked on the panel.
Use the screwdriver to secure the door hooks with the 8 supplied screws
(see Fig.25) at the marked reference points.
