INSTALLATION INSTRUCTION
5.2.1.2 Connecting to a drain hose

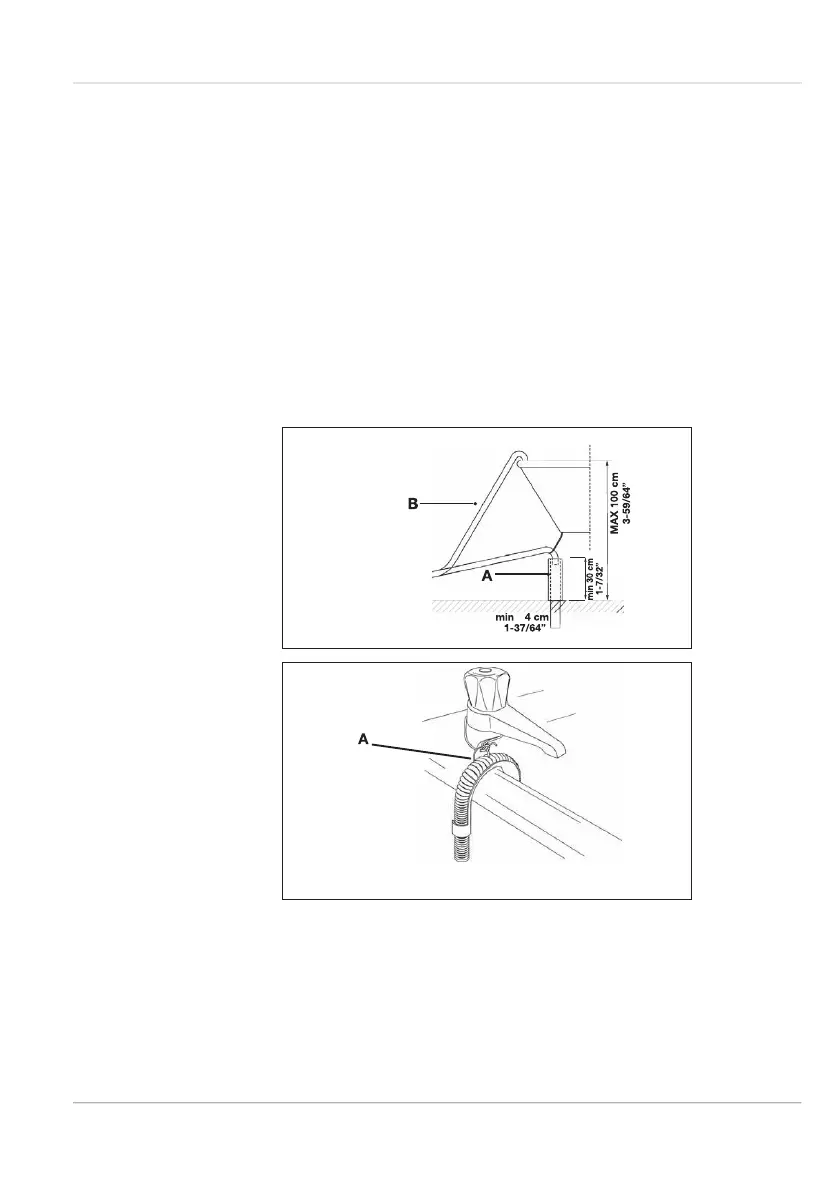

Insert the relative hose into a drain with a minimum diameter of 4 cm
(1-37/64") (ref. A fig.12); alternatively, place the hose on the sink
(ref. B fig. 11) using the supplied hose support (see fig.13), but taking care to
avoid obstructions or excessive curving. Make sure the hose cannot fall out.
For this purpose, the hose support is fi tted with a hole (ref. A fig. 13) which
can be used to fi x it to the wall or the tap with a piece of string.
The free end must lie at a height ranging from of 30 to 100 cm (from of 1-
7/32" to 3-59/64") (see fig.12) and must never be immerged in water.
If horizontal extension hoses with a maximum length of 3m are used, position
the drain hose at a maximum height of 85 cm (3-11/32") above the floor.
Fig. 12
Fig. 13
EN
16
