INSTALLATION INSTRUCTION
*The adhesive protection is suitable for kitchens with worktops that do not
allow the steel protection to be fixed with screws (e.g.+ marble or
masonry), but it can be also used with other materials.

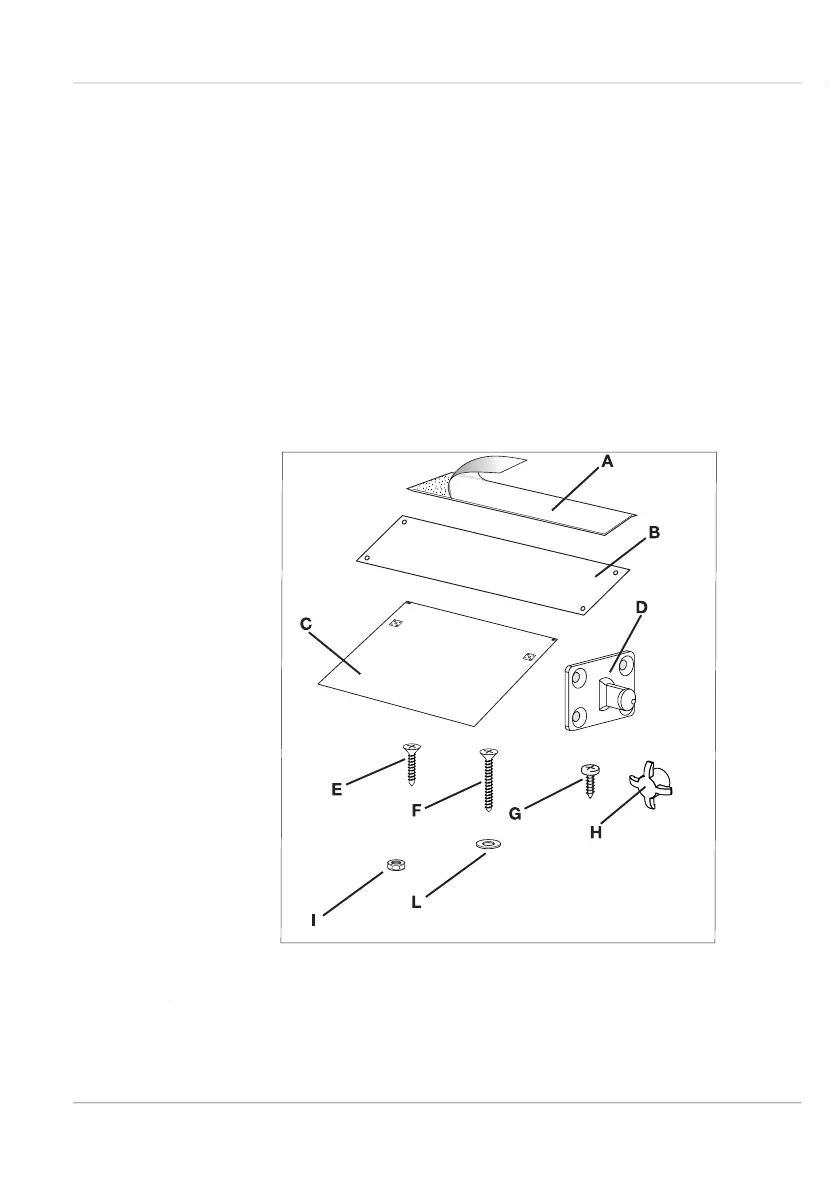

Fig. 2
3.1 Kit supplied with dishwasher
The kit supplied with the dishwasher comprises:
1 adhesive steam guard or 1 steel steam guard (ref. A or B fi g. 2)*;
1 template for door panel (ref. C fi g. 2);
2 hooks for door panel (ref. D fi g. 2);
8 screws for securing the door panel hooks (ref. E fi g. 2);
2 screws for securing the door (ref. F fi g. 2);
2 screws for fi xing the dishwasher to the adjacent walls (ref.G fi g.2);
2 screw caps (ref. H fi g.2).
2 adjustment feet (only for some models) (ref. I fi g.2);
•
•
•
•
•
•
•
•
(fully integrated)
Ÿ 2 nuts (only for some models) (ref. L fig. 2);
