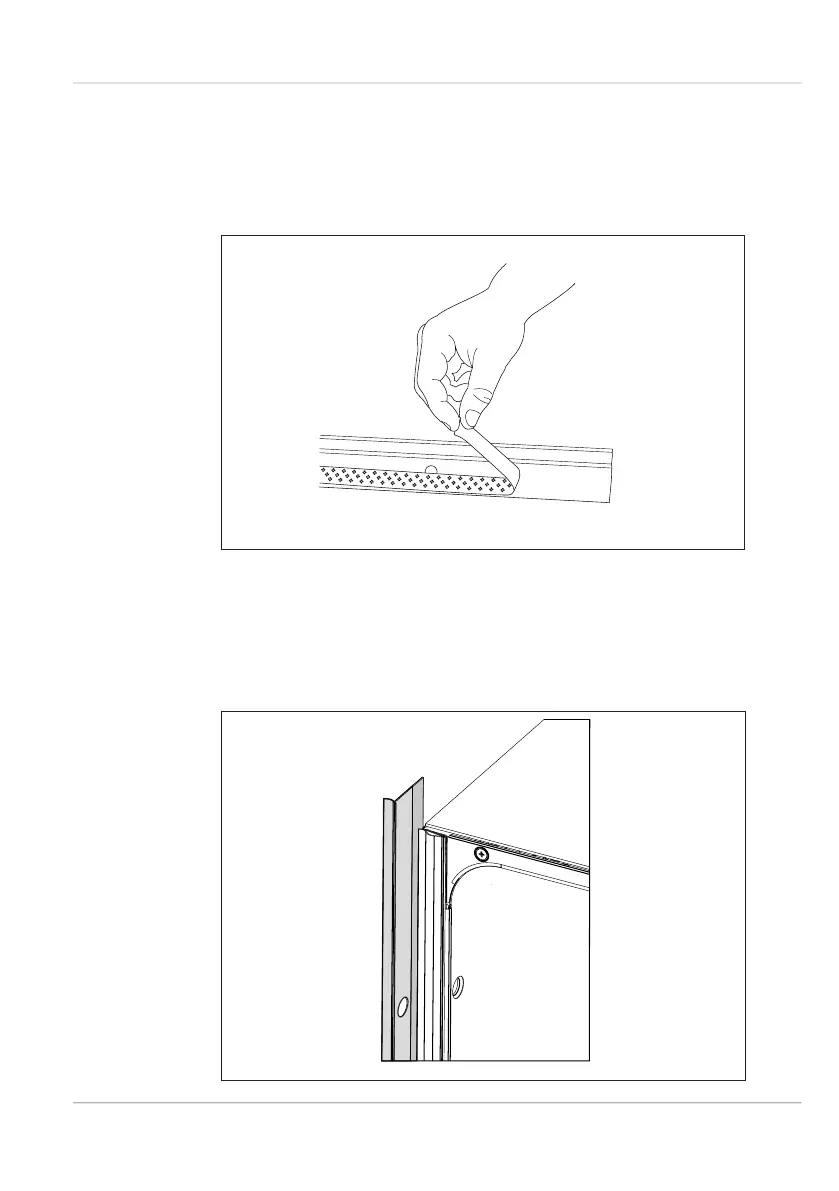

Before securing the dishwasher to the adjacent units, attach the gaskets to
the sides. Remove the adhesive band on the gasket (see Fig. 43)
Fix the gasket to the dishwasher, inserting it in the seat on the sides
towards the front (see Fig.43), and making sure that the long side of the
gasket, the one with the hole for inserting the screw, is attached to the
outside of the dishwasher; the hole in the long side must match the hole in
the dishwasher (see ref. A Fig.44) . Make sure the gasket adheres perfectly
to the dishwasher.
Fig.43
INSTALLATION INSTRUCTION
5.5 Apply the gaskets - Type B
(the shape of the gaskets depends on the model)
Fig.44
4
4
EN
34
