3.2 Kit supplied with dishwasher
(integrated)
*The adhesive protection is suitable for kitchens with worktops that do not
allow the steel protection to be fixed with screws (e.g.+ marble or
masonry), but it can be also used with other materials.

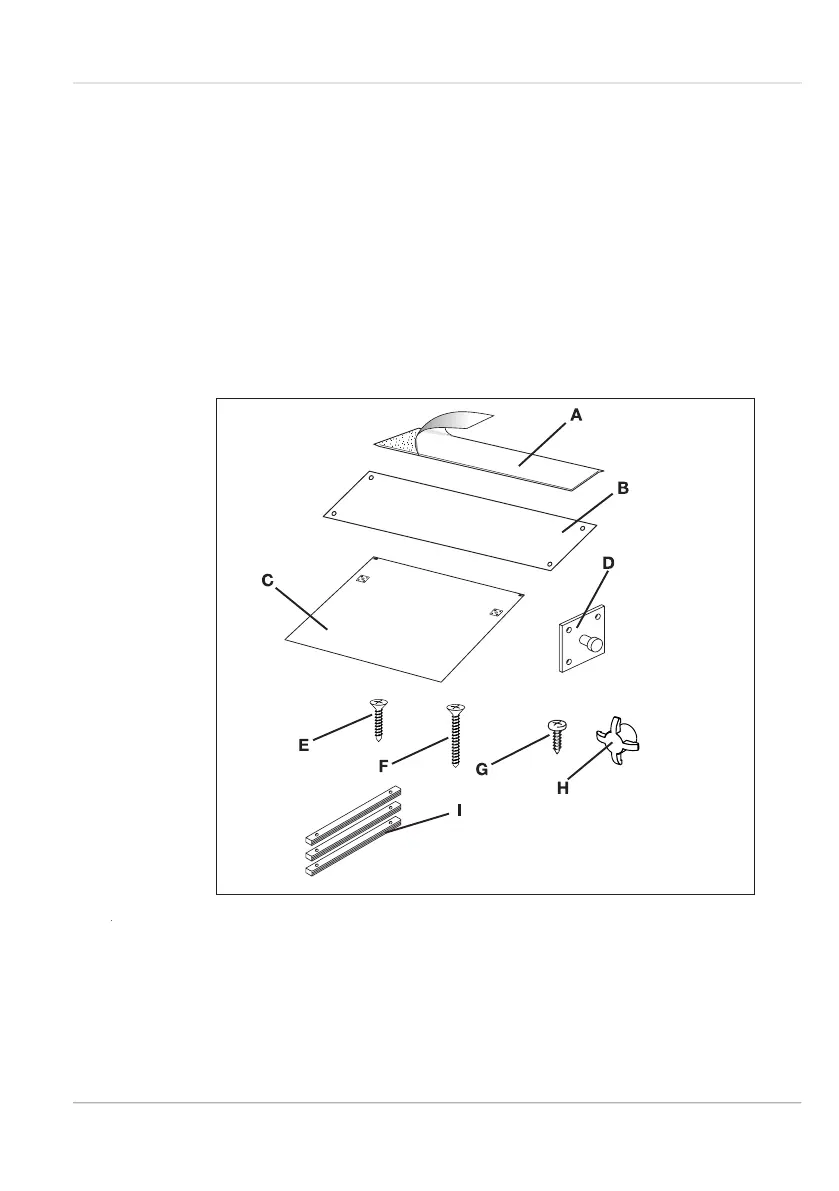

The kit supplied with the dishwasher comprises:
1 adhesive steam guard or 1 steel steam guard (ref. A or B fi g. 2)*;
1 template for door panel (ref. C fi g.3);
2 hooks for door panel (ref. D fi g.3);
8 screws for securing the door panel hooks (ref. E fi g.3);
2 screws for securing the door (ref. F fi g.3);
2 screws for fi xing the dishwasher to the adjacent walls (ref. G fi g.3);
2 screw caps (ref. H fi g.3).
3 compensation strips (ref. I fi g.3).
•
•
•
•
•
•
•
•
