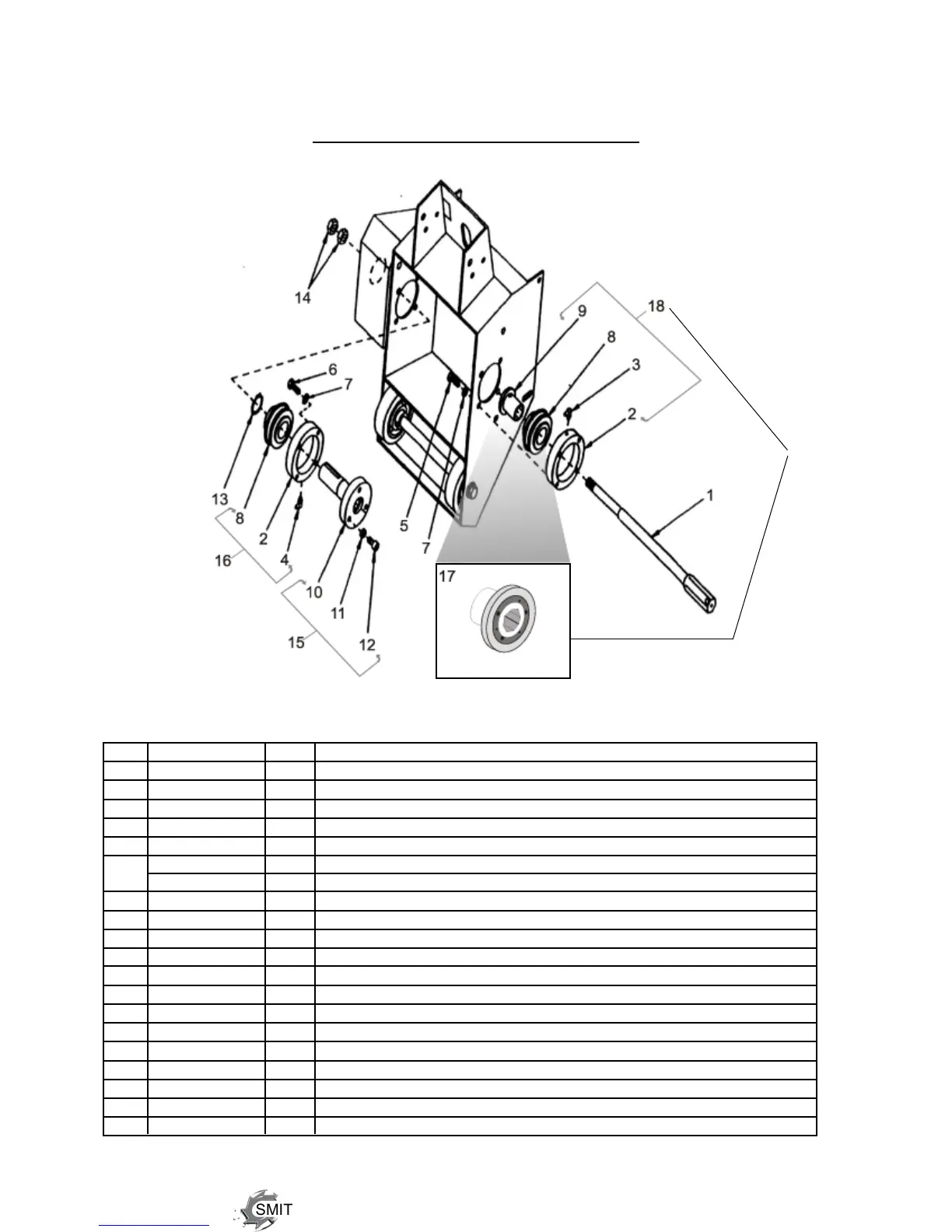

SHAFT & BEARING ASSEMBLY
ILL# P/N Oty. Description
1 65037A 1 Drum/Hub Shaft Assembly (ILL #14 included)
2 65031 2 Retainer Bearing
3 10808 1 Grease Fitting, Straight
4 10961 1 Grease Fitting, Elbow
5 10022 4 Hex Bolt, 3/8-24 x 1 1/2
(on machines w/ Removable Sideplate)
6 1010021 4 Cap Screw, 3/8-24 x 1 1/4 (on machines w/out Removable Sideplate)
1010022 4 Cap Screw, 3/8-24 x 1 1/2
7 10811 8 Lock Washer
8 65030 2 Bearing & Snap Ring (*optional non greasing Bearing - 65030-SM)
9 65033 1 Hex Bushing
10 65038 1 Shaft Driver
11 10113 3 Spacer (9/16 x 3/8 x 7/32)
12 10859 3 Cap Screw, 3/8-24 x 1”
13 10873 1 Retainig Ring, 1-1/4
 14 65039  2 JamNut,LH
15 65038.A 1 Shaft Driver Assembly (incl. ILL #10, 11 & 12)
16 65031.A 1 Bearing Retainer Assembly, Pulley Side (incl. ILL #2, 4 & 8)
17 65033.A 1 Hex Bearing Assembly (ILL #8 & 9)
18 1065033A 1 Hex Bearing Assembly, outside (incl. ILL #2, 3, 8 & 9)
19 1065033/31A 1 Set of 2 (#17 + #18) Hex Drive Bearings (*optional non greasing Assemblies)
(replaces ILL. # 8 - 9)
Hex Bearing Assembly
*
