Smithco 13-550-C - Hydraulic Diagram

14
Diagrams

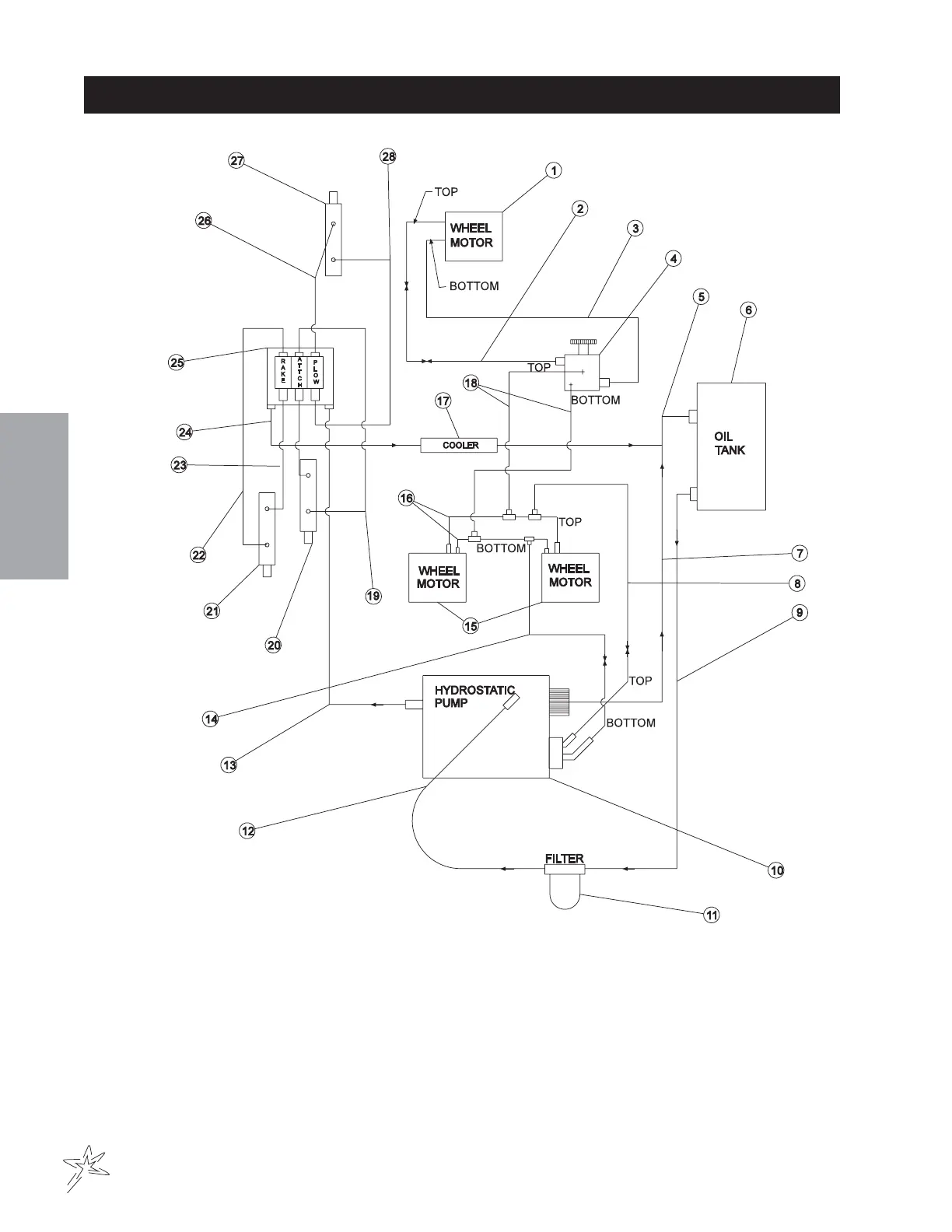

HYDRAULIC DIAGRAM
HYDRAULIC PRESSURESHYDRAULIC PRESSURES
HYDRAULIC PRESSURESHYDRAULIC PRESSURES
HYDRAULIC PRESSURES
Pump Displacement .913 in.
3
/ rev
Pump Input Speed (up to) 3600 RPM
Max. Operating Pressure 3500 PSI, 4500 Peek PSI
Charge Pump Displacement .33 in.
3
/ rev
Max. Inlet Vacuum 5 in. Hg
Max. Case Pressure 25 PSI
Implement Setting 700 - 1000 PSI
Relief Valve Pressure (set at) 3600 PSI
13-261 Hydraulic Valve (2 bank) 700 PSI
13-355 Hydraulic Valve (3 bank) 700 PSI
