56
Accessories

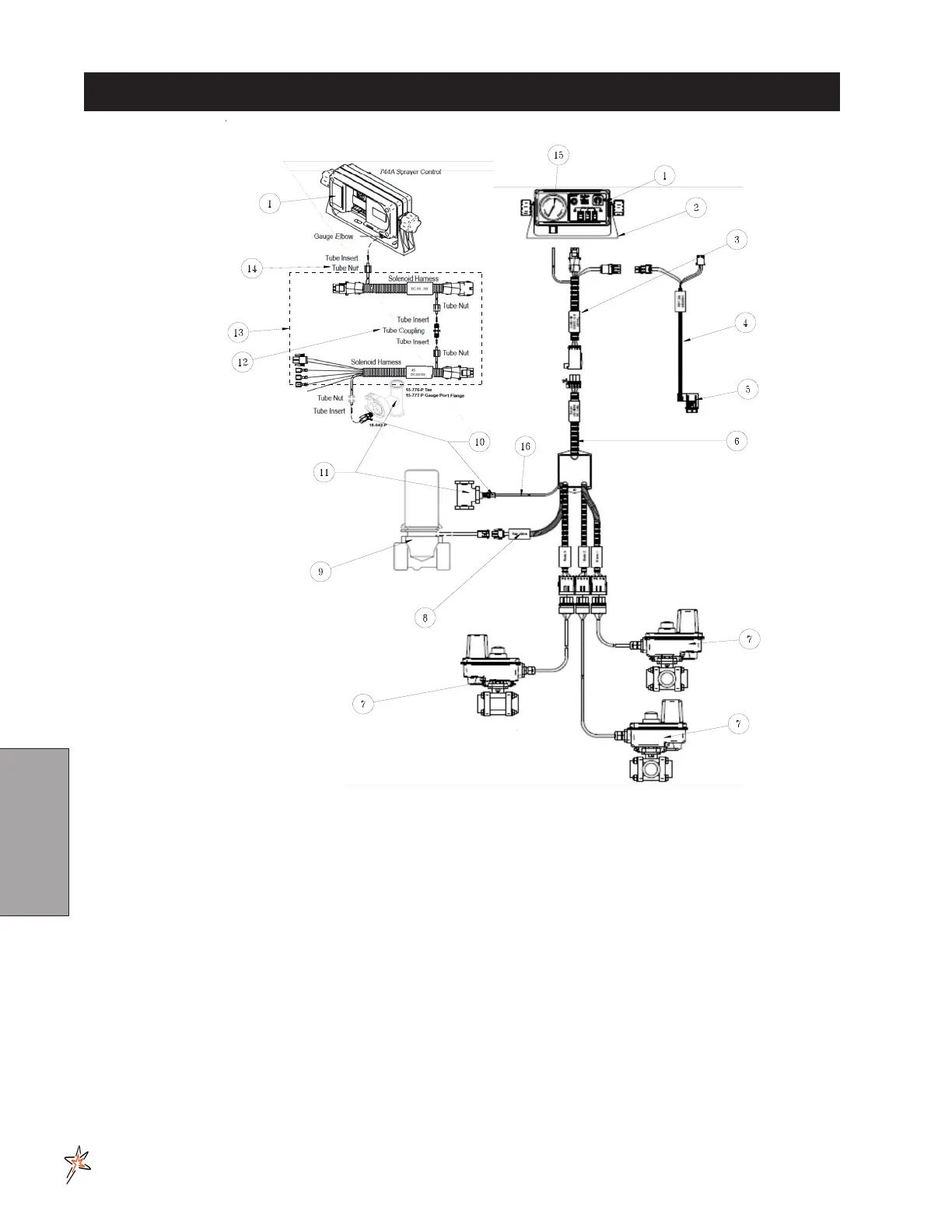

WIRING 2004 SYSTEM (TEEJET
®
744)
REF# PART# DESCRIPTION QUANTITY
1* 20-688-02 744A Console 1
20-688-01 200PSI Gauge 1
2 20-727 Mount Bracket 1
20-540 Ram Mount 1
3* Console harness 1
4* Fused Power Cable 1
5 33-271 Fuse Block 1
6* Ball Valve Wire Harness 1
7 15-743 Manifold Ball Valve 1
8* Regulator Valve Adapter 1
9 16-524 Regulating Valve 1
10 18-042 Reducer Bushing 1
11 15-776 Tee, 50 Series 1
15-777 Gauge Port Flange 1
12* 20-688-05 TUbe Coupling 1
13* Tube Nut Kit 1
14* 20-688-06 Tube Nut 1
15* 20-688-01 PSI Liquid Gauge 1
* 20-688 744A Kit Complete (includes * items)
