4
Service
MAINTENANCE
Before servicing or making adjustments to machine, stop engine and remove
key from ignition.
Use all procedures and parts prescribed by the manufacturer's. Read the en-

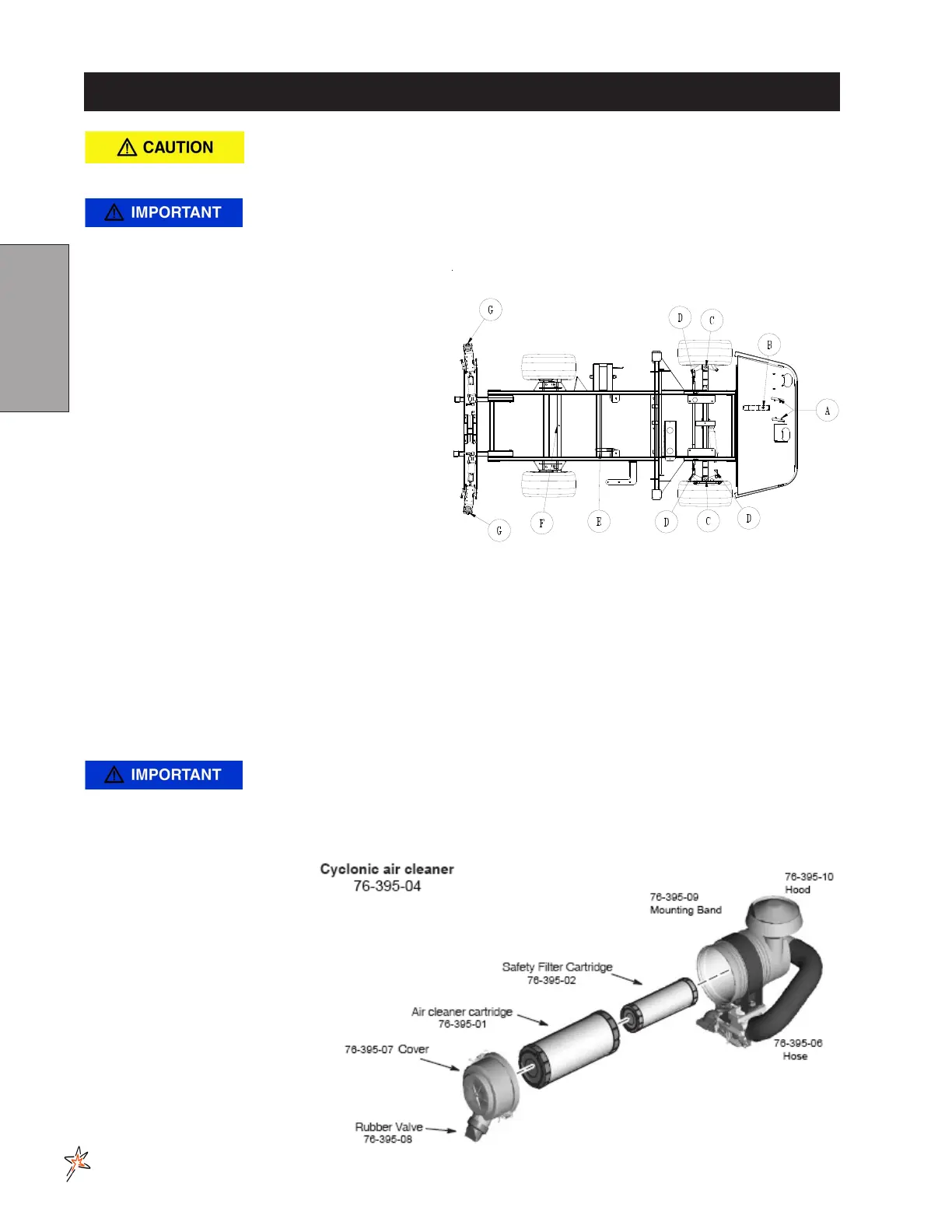

gine manual before operation.Use No. 2 General purpose lithium base grease
and lubricate every 100
hours. The Spray Star 2000 has 14
grease ttings.
A. One on each pedal mount.
B. Pedal relay.
C. Right and left spindles.
D. All three rod ends.
E. Idler arm.
F. Brake relay.
G. Top and bottom pivot bolts on boom
Electrical Connections
Use dielectric grease on all electrical connections.
Air Cleaner on Engine
1. Unclip the two clips, remove the cover and pull out the element.
3. Clean out the inside of the body and cover.
4. Place the element into the body and put the cover back on..
Do not use petroleum solvents, e.g.., kerosene, which will cause cartridge to
deteriorate. Do not use pressurized air to clean cartridge. Pressurized air can
damage cartridge.
