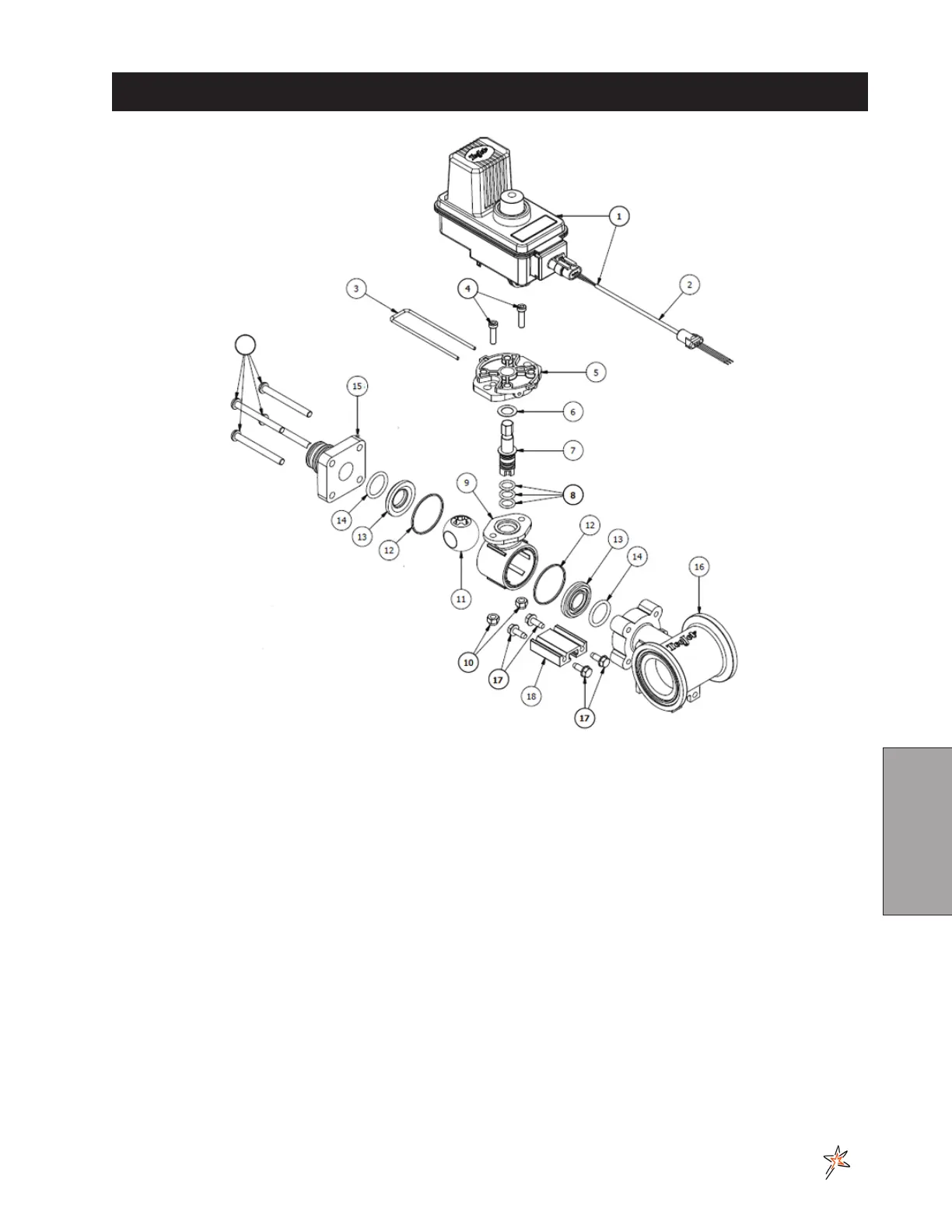

15-743 MANIFOLD VALVE DRAWING
REF# PART# DESCRIPTION QUANTITY
1 15-552-23 Motor
2 15-878 Metri-Pack Cable (comes with motor) 1
3 15-552-24 Retaining Clip 1
4 15-552-25 Socket Head Cap Screw, Stainless Steel 2
5 15-552-26 Motor Adapter, Polypropylene 1
7 15-552-27 Stem, Stainless Steel 1
8* 15-552-05 O-ring, Viton 3
9 15-517-16 Body, Nylon 1
10 Lock Nut, Stainless Steel 2
11 15-743-04 Ball, Polypropylene 1
12* 15-552-13 Gasket, Viton 2
14* 15-517-20 O-ring, Viton 2
15 15-743-01 End Cap 1
16 15-743-02 #75 Tee Body 1
17 15-743-06 Screw, SS 4
18 15-743-03 Mounting Rail Aluminum 1
* 15-552-10 Spare Parts Kit (includes all * items)
15-743-05 Single Valve (shown)
