17-580 20' HD SUPER BOOM PARTS LIST
REF# PART# DESCRIPTION QUANTITY
31 17-587 Boom Lock 2
32 42-116 Rubber Insert 4
33 8803-2.75 Trim Lace, 2
3
/
4
2
34 17-588 Lock Hinge, RH 1
35 17-597 Torsion Spring, RH 1
36 17-589 Limit Hinge, RH 1
37 HB-516-18-100 Bolt,
5
/
16
-16 x 1 2
HNFL-516-18 Flange Lock Nut,
5
/
16
- 18 2
38 17-593 Limit Hinge, LH 1
17-598 Torsion Spring, LH 1
39 17-592 Lock Hinge, LH 1
40 HB-38-16-100 Bolt,
3
/
8
- 16 x 1 2
HNFL-38-16 Flange Lock Nut,
3
/
8
- 16 2
HW-38 Washer,
3
/
8
2
41 17-635 Clean Load Mount 1
8803-13 Black Trim, 13" 1
43 30-258 1" 10-14ga Ribbed Plug 10

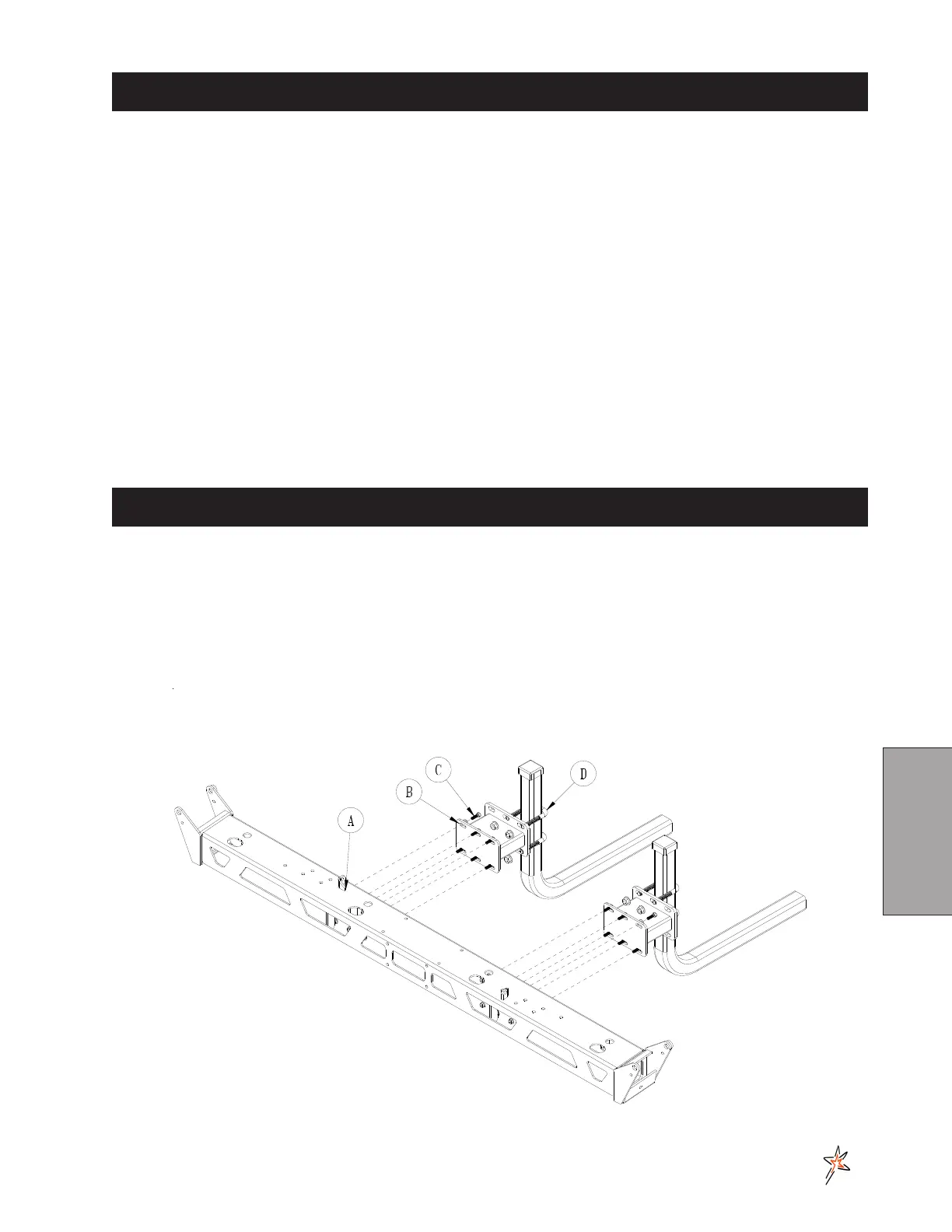

BOOM MOUNT TO TRUCK
REF# PART# DESCRIPTION QUANTITY
A Center Boom Mount 1
B 17-614 Boom Spacer 2
C HB-516-18-100 Bolt,
5
/
16
-18 x 1 12
HNTL-516-18 Lock Nut,
5
/
16
-18 12
D 20-555 U-Bolt 4
HNFL-12-13 Flange Lock Nut,
1
/
2
- 13 8
