Accessories

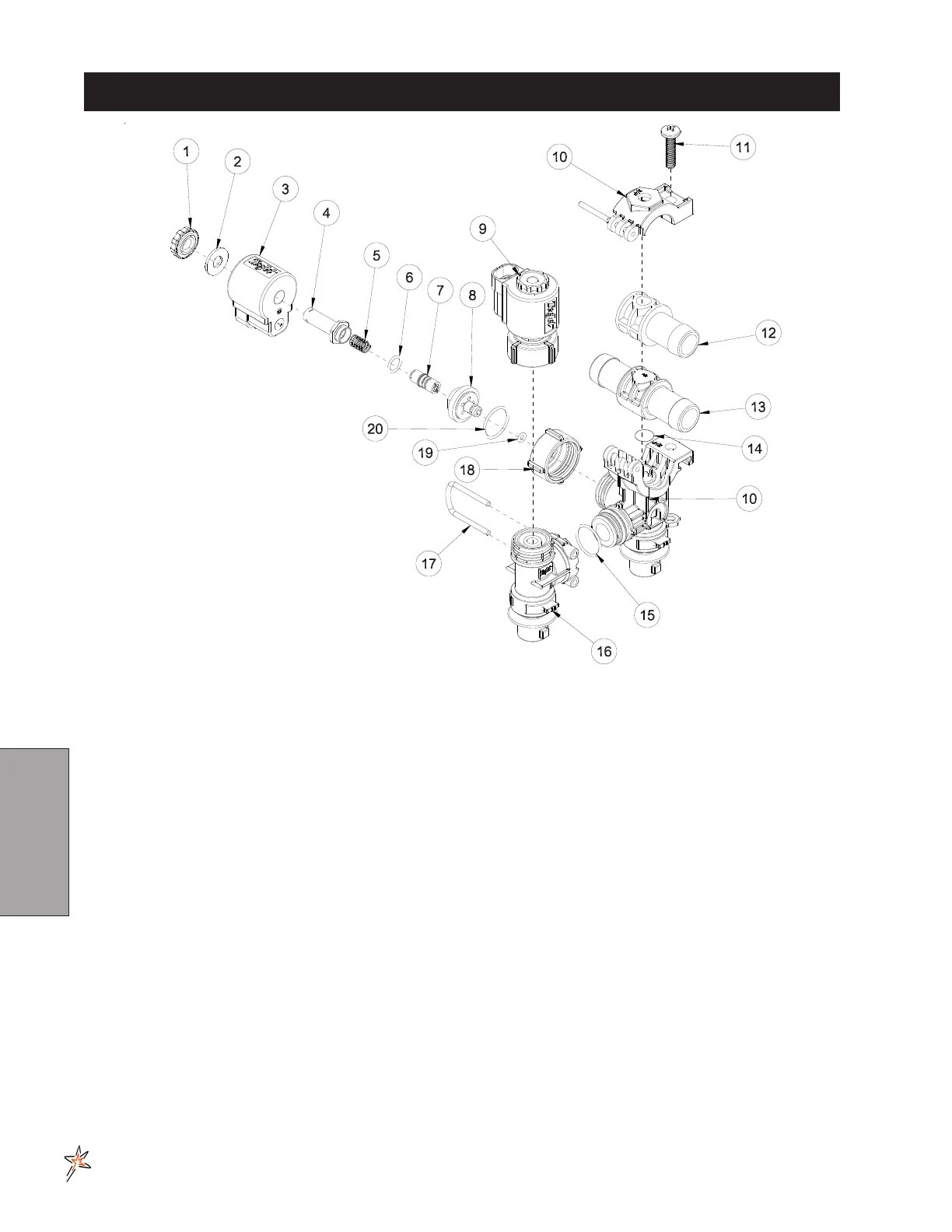

QJS NOZZLE DRAWING
REF# PART# DESCRIPTION QUANTITY
1 Nylon Black Nut 1
2 303 Stainless Steel Washer 1
3 20-673-03 12V Coil Assembly 1
4 Tube Sub Assembly 1
5* 302 Stainless Steel Spring 1
6* Viton Oring 1
7* Plunger 1
8 303 Stainless Steel Cap 1
9 20-673-02 E-Chemsaver Solenoid 1
10 20-673-04
3
/
4
" Mount Assembly 1
11 Pan Head Screw 1
12 18-417 Single Barb (part of 20-674-P and 20-675-P) 1
13 18-416 Double Barb (part of 20-673-P) 1
14 Oring 1
15 Oring 1
16 20-673-05 End Body Sub-assembly 1
17 Retaining Clip 1
18 Locking Ring 1
19* 20-673-07 Viton Oring 1
20* 20-673-06 Viton Gasket 1
* 20-673-01 Spare Parts Kit
