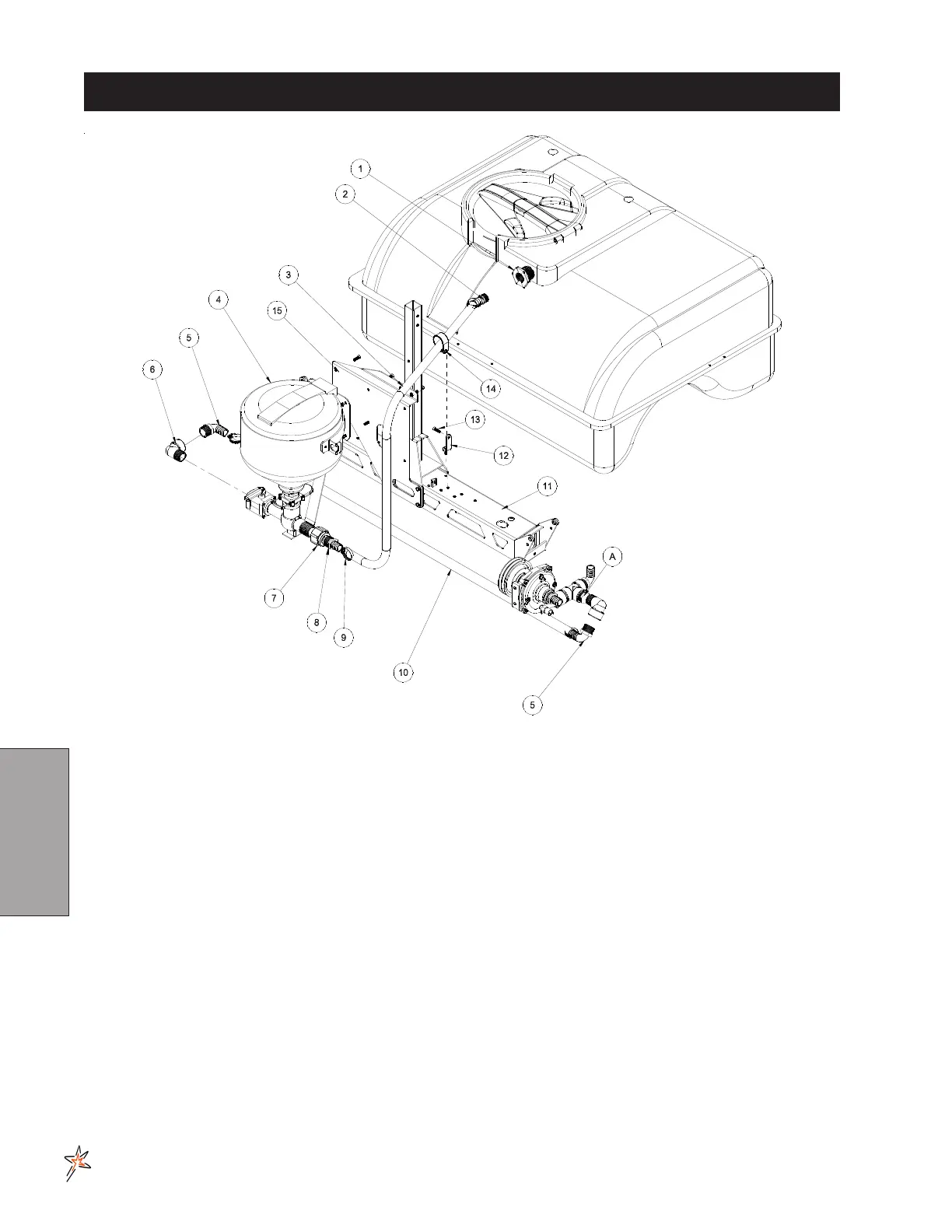

20-503 CHEMICAL CLEAN-LOAD DRAWING
REF# PART # DESCRIPTION QUANTITY
1 16-945 Fitting (part of tank) 1
2 16-159 Fitting 1
3 8897-43 1
1
/
4
" Discharge Hose 43" 1
4 15-620 Clean-load Assembly 1
5 16-156 Elbow 2
6 16-972 90° Elbow 1
7 18-391 Coupling 1
8 16-161 Fitting 1
9 18-116 Hose Clamp 4
10 8897-116 1
1
/
4
" Discharge Hose 116" 1
11 Center Boom
12 14-604 Loom Clamp Mount 1
13 HB-516-18-100 Bolt
5
/
16
- 18 x 1 2
HNFL-516-18 Flange Lock Nut
5
/
16
- 18 2
14 HLC-A-200 Loom Clamp 1
15 17-635 Clean Load Mount (Part of boom) 1
