6.2.3Assembly of tap selector and diverter switch’s oil compartment
Lift the oil compartment to be above the tap selector and connect them two. The steps are as follows:
a. Put the tap selector on a horizontally flat table
b. Remove its positioning plate (See Figure-6-7)
c. Use the special tool to lift up the diverter switch’s oil compartment (see Figure-6-8)

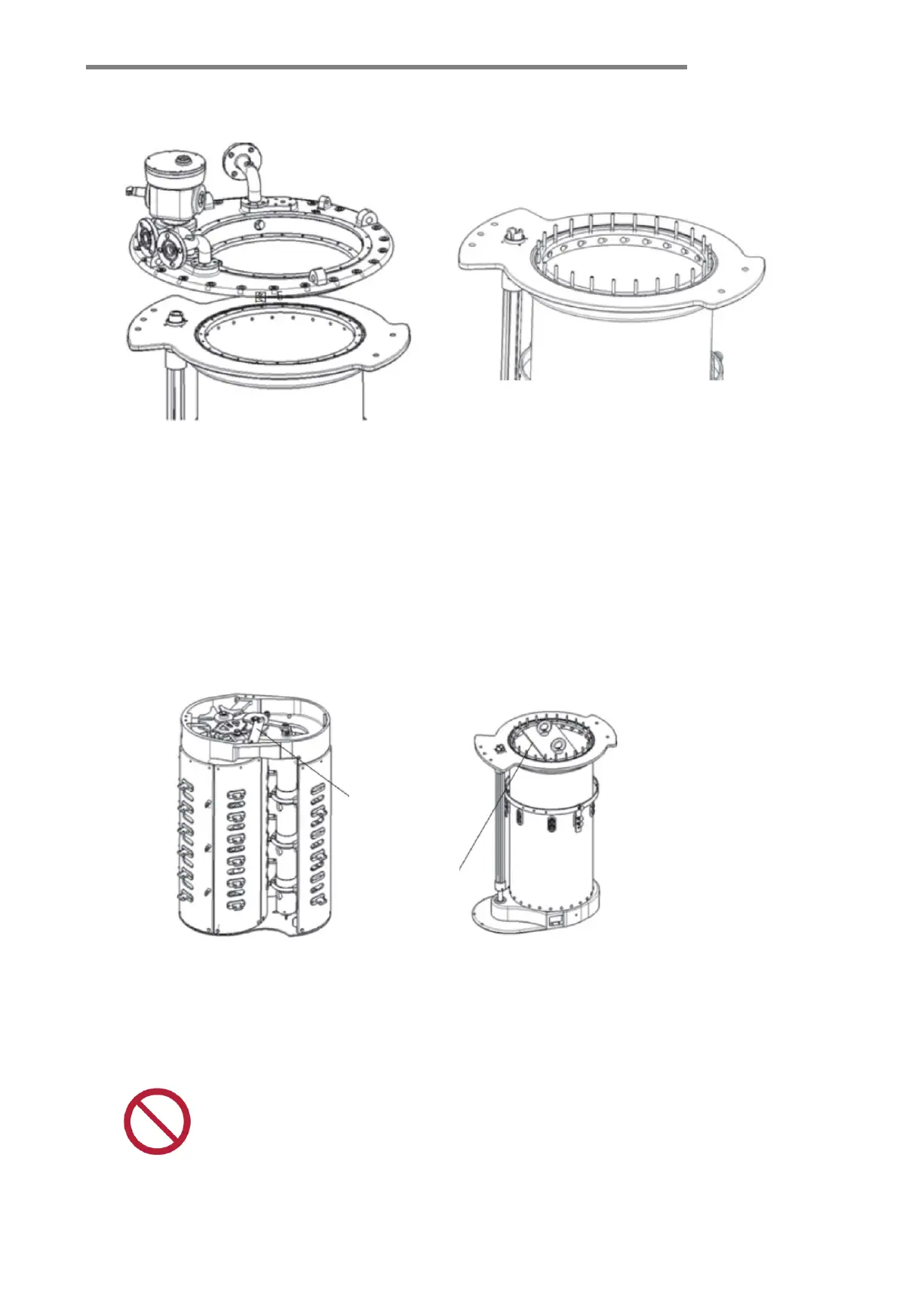

Figure 6-7 Figure 6-8
d. Carefully put the oil compartment above the tap selector (see Figure- 6-9)
e. Align two coupling pieces. The convex parts of the upper and lower coupling pieces should be staggered
when they are connected, and be careful not to bump them.
Do not turn the coupling after removing the positioning pin.
positioning
lifting plate
