 CLEAR DATA - Clears stored torque and angle data.
 CYCLE COUNT - Displays torque/angle cycle count screen.
 LANGUAGE - Displays language selection menu.
 SETTINGS - Displays advanced settings menu (see Advanced Settings Section).
 CONFIGURE - Displays advanced configuration menu (see Advanced Configuration Section).

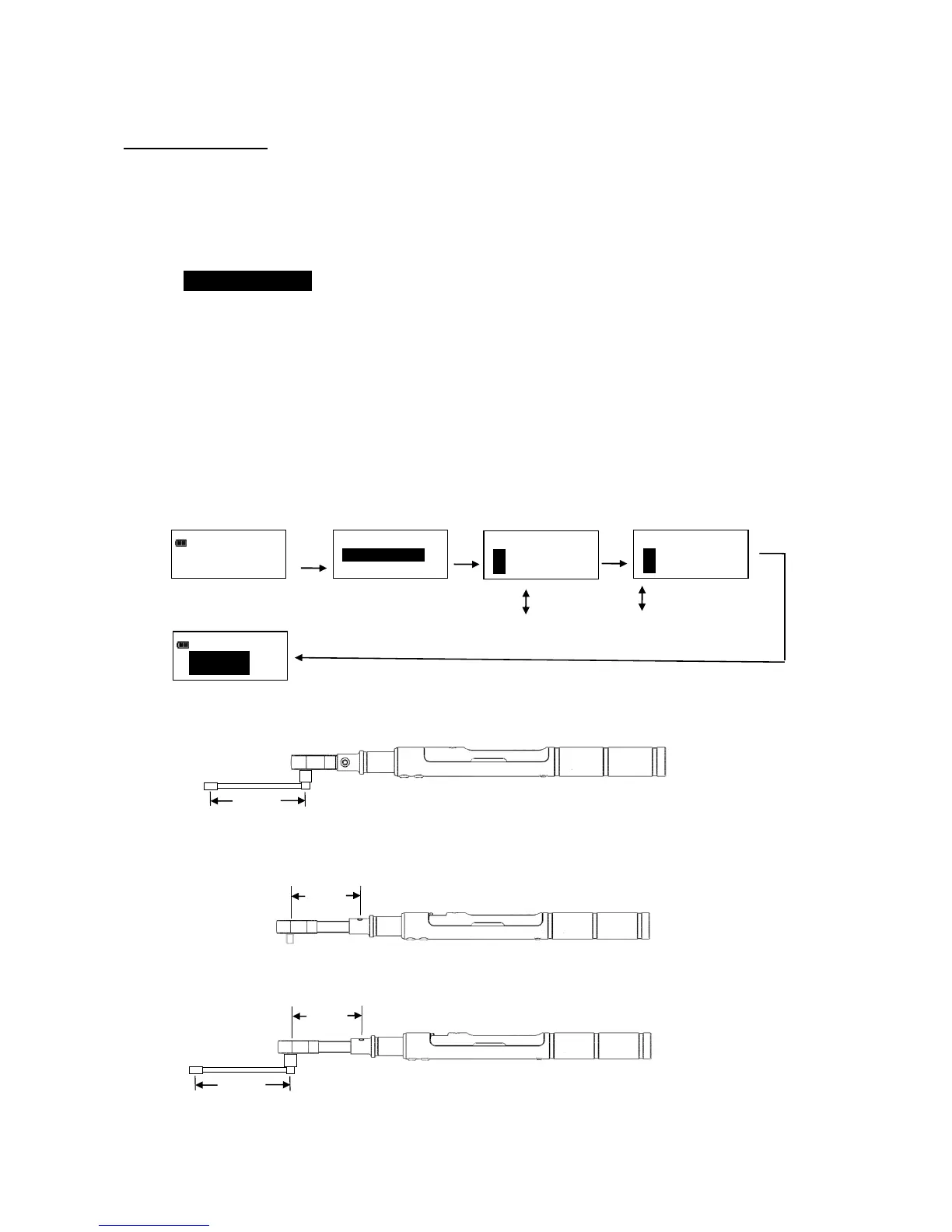

Setting Head Length
Note: If wrench has an interchangeable head or an adapter or extension is added, length of head,
adapter and/or extension being used can be entered to correct for a different length than head
used to calibrate wrench, without requiring re-calibration.
1. To enter a head length, from target torque or angle screen, press and hold ENTER button for 3
seconds.
2. With SET HEAD LENGTH menu selection highlighted, momentarily press ENTER button.
3. Set Head Length screen is displayed next. Default head length is length of head at calibration (zero
for fixed head wrench) and is displayed with most-significant digit highlighted. Use UP/DOWN
buttons to increment/decrement head length. Pressing and holding UP/DOWN buttons will
progressively increment/decrement value faster.
4. Press ENTER button to accept digit and highlight next-significant digit.
5. Default units of length is in inches. Press UNITS button to change to millimeters.
6. Pressing ENTER button after least-significant digit is set returns to main menu. If length is changed
from default, the target torque is highlighted in black.
Note: If UP/DOWN buttons are pressed simultaneously while on Set Head Length screen, displayed
head length resets to zero or calibration head length for interchangeable head wrenches.
Note: For a fixed length head, head length entered is offset length measured from center of drive to
center of fastener.
Note: For an interchangeable head, head length is measured from locking pin to center of drive. SET
HEAD LENGTH is set during calibration. If a different length head is used, enter new head length
and offset is calculated automatically.
Note: For an interchangeable head with an adapter, head length entered is sum of head length and
offset length.
ℎ𝑒𝑎𝑑
𝑜𝑓𝑓𝑠𝑒𝑡
ℎ𝑒𝑎𝑑
𝑜𝑓𝑓𝑠𝑒𝑡
UP/DOWN/ENTER
buttons
ENTER button (while least-significant digit highlighted)
00
100.0 IN-LB
ENTER
button
held
ENTER
button
UNITS
button
Target Screen
UP/DOWN/ENTER
buttons
EXIT
SET HEAD LENGTH
SHOW DATA
SET HEAD LENGTH
3.000 IN
SET HEAD LENGTH
076.2 MM
00
100.0 IN-LB
