FILLING THE PAG OIL CONTAINER
Types of oil: use only oils recommended by the manufacturer or
by the car manufacturers. Always refer to the information
provided by the A/C system manufacturer. Never use waste oil.
Procedure:
Open the upper door on the right side (ref 4, Fig. 29).
Press quick connection button (ref 1, Fig. 29) to disconnect the
PAG oil container (ref j, Fig. 29).
Remove the container from its lodging.
Hold the container and unscrew the cap (ref 2, Fig. 30).
Fill the container (Fig. 31) with the correct quantity of PAG oil for
compressors, of suitable type and grade.
NOTE: in order to reduce humidity and air contamination of new
oil, the collapsible container has to be filled almost to the brim.
Screw the cap (ref 2, Fig. 30) back into the container.
Replace the container and hook it up to the quick connection
taking care not to exert pressure on the scale in order not to
damage it.
1
j
4

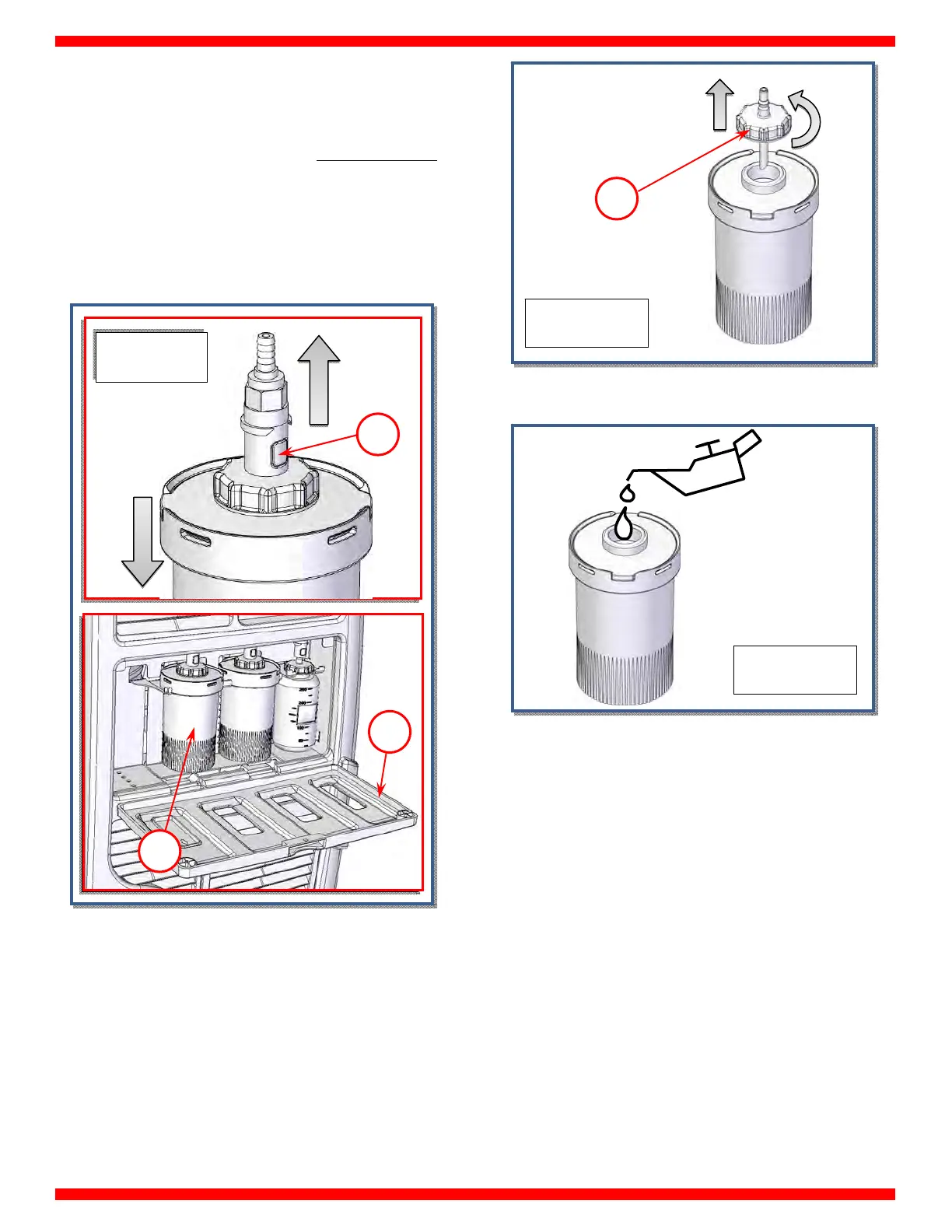

FIG. 29
FIG. 31
FIG. 30
2
