Snap-On POLARTEK PLUS EEAC331 - Filling the Oil2\Dye Container

• 41 •
FILLING THE OIL2\DYE CONTAINER
NOTE: Using DYE not recommended by the manufacturer will
invalidate the warranty.
Procedure:
Open the upper door on the right side (ref 4, Fig. 32).
Press quick connection button (ref 1, Fig. 32) to disconnect the
OIL2\DYE container.
Lift the OIL2\DYE container out of its lodging (ref l, Fig. 32).
Hold the container and unscrew the cap (ref 2, Fig. 33).
Fill the container (Fig. 34) with the required quantity of OIL2\DYE
for compressors.
Screw the cap (ref 2, Fig. 33) back into the container.
Replace the container and hook it up to the quick connection
taking care not to exert pressure on the scale in order not to
damage it.
NOTE: in order to reduce humidity and air contamination of
OIL2\DYE, the collapsible container has to be filled almost to the
brim.

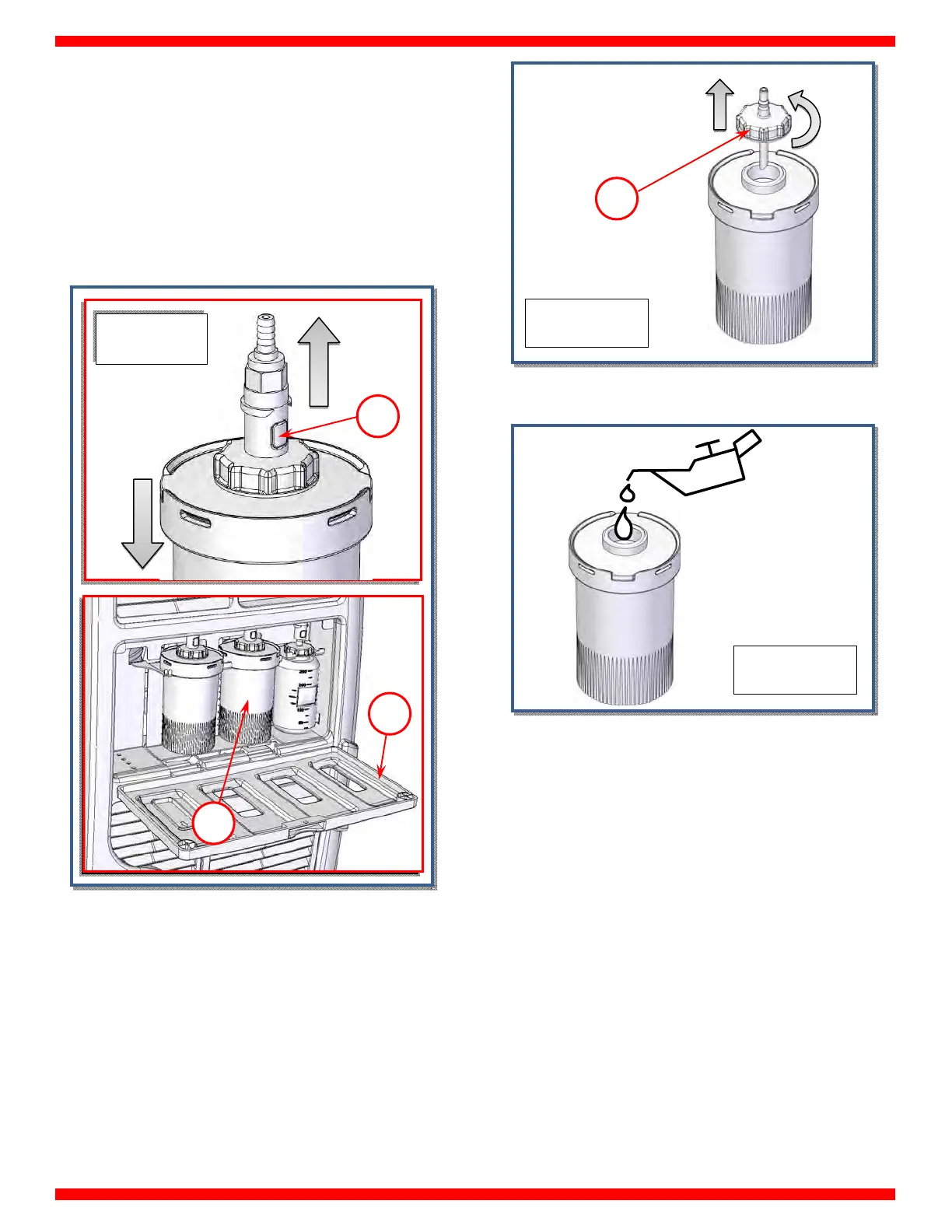

FIG. 34
FIG. 33
2
1
l
4
FIG. 32
