12
x Advanced Settings

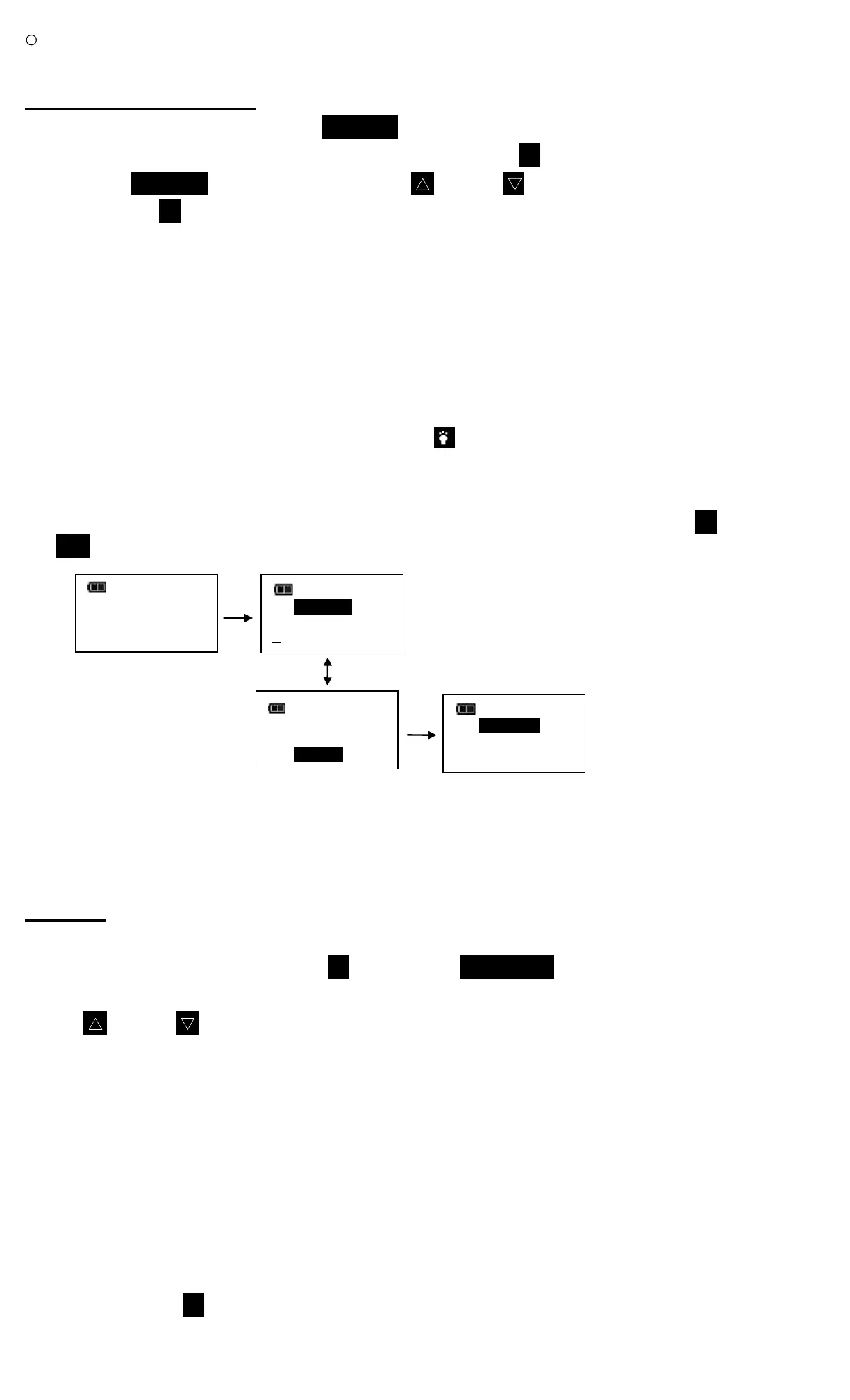

Accessing Advanced Settings
Advanced settings are accessed from SETTINGS menu selection on main menu.
1. From target torque or angle screen, press and hold ENTER button for 3 seconds.
2. Highlight SETTINGS menu selection using UP S /DOWN T buttons.
3. Press ENTER button to display Settings menu.
Menu Selections:
x EXIT - Exits Settings menu and returns to target screen.
x SHOW INFO - Displays wrench operational information.
x SLEEP TIME - Displays power down interval setup screen.
x LCD CONTRAST - Displays LCD contrast setup screen.
x KEY BEEP - Displays button press beep enable/disable setup screen.
x AUTO BACKLIGHT - Displays auto backlight enable/disable screen to turn on backlight during
measurement.
x TOGGLE BACKLGHT - Displays BACKLIGHT button toggle or timeout enable/disable
screen.
x VIBRATOR CONFIG - Displays vibrator ON/OFF configuration for when target reached.
4. To exit Settings menu and return to target torque or angle screen, press ENTER button while
EXIT menu selection is highlighted.
Note: All user configurable settings are stored in non-volatile memory and are retained while power
is off.
Show Info
Show Info menu selection displays wrench operational information.
1. From Settings menu, press ENTER button while SHOW INFO selection is highlighted.
2. SHOW INFO screen is displayed.
3. UP S /DOWN T buttons are used to scroll screen.
Operational Information:
x CAL: Date of last wrench calibration.
x ISD: In-Service Date.
x TCF: Torque Calibration Factor.
x ACF: Angle Calibration Factor.
x VER: Software version.
x OVR CNT: Overtorque Counter tracks how many times an over-torque event occurred on
wrench (torque >125% of full scale).
x TQZ: Torque Zero Offset.
x ANZ: Angle Zero Offset.
4. Pressing ENTER button exits Show Info screen and returns to Settings menu.
FT-LB
SHOW DATA
CLEAR DATA
CYCLE COUNT
ENTER
EXIT
LANGUAGE
SET HEAD LENGTH
M SHOW DATA
EXIT
SHOW INFO
SLEEP TIME
LCD CONTRAST
To Next Page
