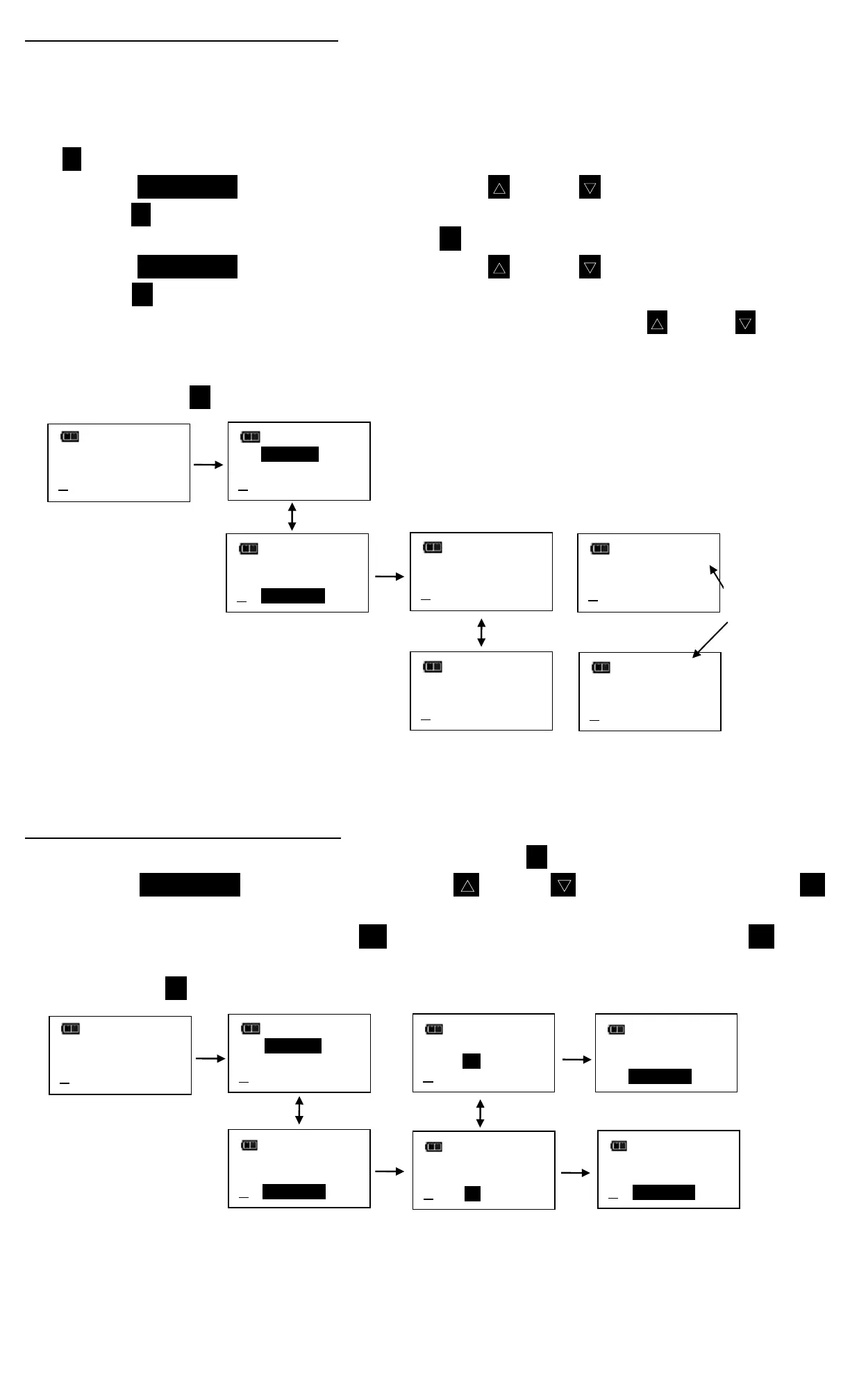

Viewing Stored Torque and Angle Data
Torque data is stored in memory after each torque cycle if applied torque has reached target value.
Torque and angle data is stored in memory after each angle cycle if applied angle has reached target
value. Memory Indicator is displayed when data is stored in non-volatile memory.
1. To view stored torque and angle data, from target torque or angle screen, press and hold ENTER
  button for 3 seconds.
2. Highlight SHOW DATA menu selection by pressing UP S  /DOWN T  buttons then press
ENTER   button to display Show Data screen. To view stored torque and angle data, from target
torque or angle screen, press and hold ENTER   button for 3 seconds.
3. Highlight SHOW DATA menu selection by pressing UP S  /DOWN T  buttons then press
ENTER   button to display Show Data screen.
4. In Show Data screen, scroll through each stored data record by pressing UP S  /DOWN T  buttons.
Example: 02 = Show Data List Counter: TQ = Peak torque value
01 = Show Data List Counter: TQ = Peak torque value: ANG = Peak angle value
5. Pressing ENTER   button while on Show Data screen returns to main menu.
Note: A maximum of 50 data records can be stored in memory. Memory full icon will be displayed when
full. New data will replace oldest record until memory is cleared.
Deleting Stored Torque and Angle Data
1. From target torque or angle screen, press and hold ENTER   button for 3 seconds.
2. Highlight CLEAR DATA menu selection using UP S  /DOWN T  buttons then press ENTER  
button to display CLEAR ALL DATA screen.
3. In CLEAR ALL DATA screen, highlight YES menu selection to delete all stored data, or NO menu
selection to exit without deleting data.
4. Press ENTER   button after making selection.
00
M
100.0
FT-LB
LANGUAGE
SET HEAD LENGTH
SHOW DATA
CLEAR DATA
LANGUAGE
SET HEAD LENGTH
SHOW DATA
M CLEAR DATA
LANGUAGE
SET HEAD LENGTH
SHOW DATA
M CLEAR DATA
CLEAR ALL DATA
YES
M NO
CLEAR ALL DATA
YES
M NO
EXIT
LANGUAGE
SET HEAD LENGTH
M SHOW DATA
ENTER
button
held
Target Screen
ENTER
button
UP/DOWN buttons
UP/DOWN buttons
ENTER
button
ENTER
button
00
M
100.0
FT-LB
02: 15:40:15
2014/01/26
TQ: 14.2 FT-LBS
M
EXIT
LANGUAGE
SET HEAD LENGTH
M SHOW DATA
OR
UP/DOWN buttons
If clock has been
set data
timestamp will
be displayed
(see Advanced
Configuration).
01 : 15:35:05
2014/01/26
TQ: 15.3 FT-LBS
M ANG: 84°
01:
TQ: 15.3 FT-LBS
M ANG: 84°
EXIT
LANGUAGE
SET HEAD LENGTH
M SHOW DATA
02:
TQ: 14.2 FT-LBS
M
ENTER
button
held
Target Screen
ENTER
button
UP/DOWN buttons
OR
