8

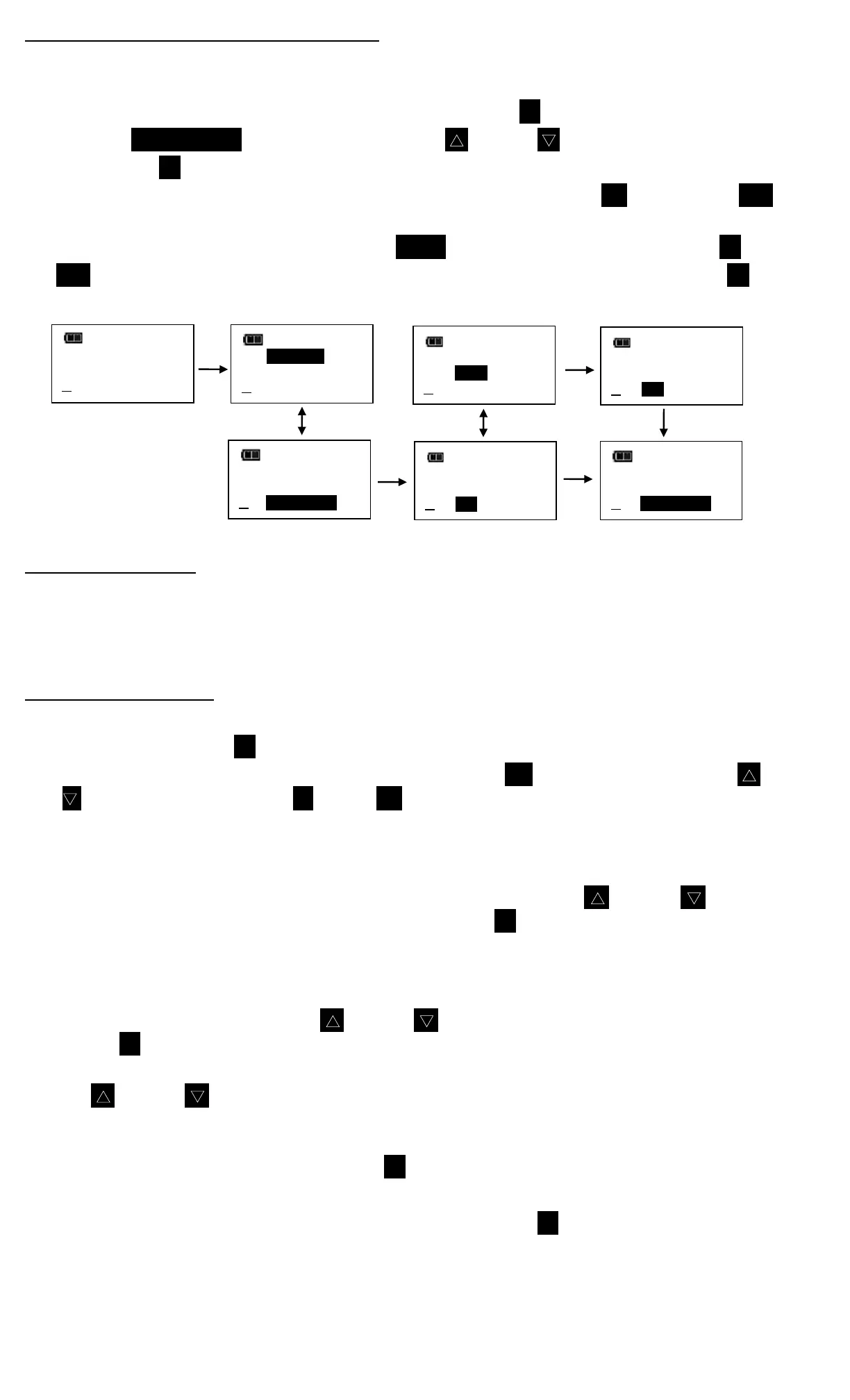

Viewing and Clearing Wrench Cycle Counter
Each time torque or angle target is reached, wrench cycle counter is incremented. Maximum cycle
count is 999999.
1. From target torque or angle screen, press and hold ENTER button for 3 seconds.
2. Highlight CYCLE COUNT menu selection using UP S /DOWN T buttons.
3. Press ENTER button to display COUNT screen.
4. To exit CYCLE COUNT screen without clearing count, press ENTER button while EXIT menu
selection is highlighted.
5. To reset wrench cycle count to 0, highlight CLEAR menu selection then press ENTER button.
6. EXIT menu selection is automatically highlighted after count is cleared. Press ENTER button to
return to main menu.
Target Presets (PSET)
PSET function gives user ability to configure 10 preset target torque or target angle settings, each with
a minimum (target), maximum (over range) and batch count value. PSETs are stored in non-volatile
memory so that they are retained while power is off.
Adding a Torque Preset
1. From target torque screen, select units of measure.
2. Press and hold UNITS U button for 3 seconds.
3. ADD PRESET confirmation screen is displayed. Highlight YES menu selection using UP S /DOWN
T buttons then press ENTER button. NO menu selection returns to main menu without adding
a PSET.
4. MINIMUM TORQUE is target value at which green progress lights, audible alert and vibrator turn
on. Initial MINIMUM TORQUE value is value from target torque screen. MINIMUM TORQUE can
be set to any value within wrench torque range by pressing UP S /DOWN T buttons. Once
desired target torque value has been set, press ENTER button.
5. MAXIMUM TORQUE screen is displayed next. MAXIMUM TORQUE is torque value above which
red progress lights turn on. Initial MAXIMUM TORQUE value will be MINIMUM TORQUE plus 4%.
Maximum torque value can be set greater than MINIMUM TORQUE value to 10% above wrench
maximum range by pressing UP S /DOWN T buttons. Once desired value has been set, press
ENTER button.
6. BATCH COUNT screen is displayed next. Default value is zero. Batch count range is 0 to 99. Press
UP S /DOWN T buttons to increment/decrement batch count. Mode Count increments each
time target torque is reached if a batch count of zero is entered. Mode Count decrements if a
non-zero batch count is entered and resets to batch count value when count reaches zero. Once
desired value has been set, press ENTER button.
7. PSET target screen is displayed labeled with next available PSET number from 01 to 10.
8. To enter additional torque presets, repeatedly press ENTER button until target torque screen
is displayed and repeat steps above.
SET HEAD LENGTH
SHOW DATA
CLEAR DATA
M CYCLE COUNT
M
FT-LB
COUNT: 12
CLEAR
M
EXIT
COUNT: 12
CLEAR
M
EXIT
SET HEAD LENGTH
SHOW DATA
CLEAR DATA
M CYCLE COUNT
EXIT
LANGUAGE
SET HEAD LENGTH
M SHOW DATA
COUNT: 0
CLEAR
M
EXIT
