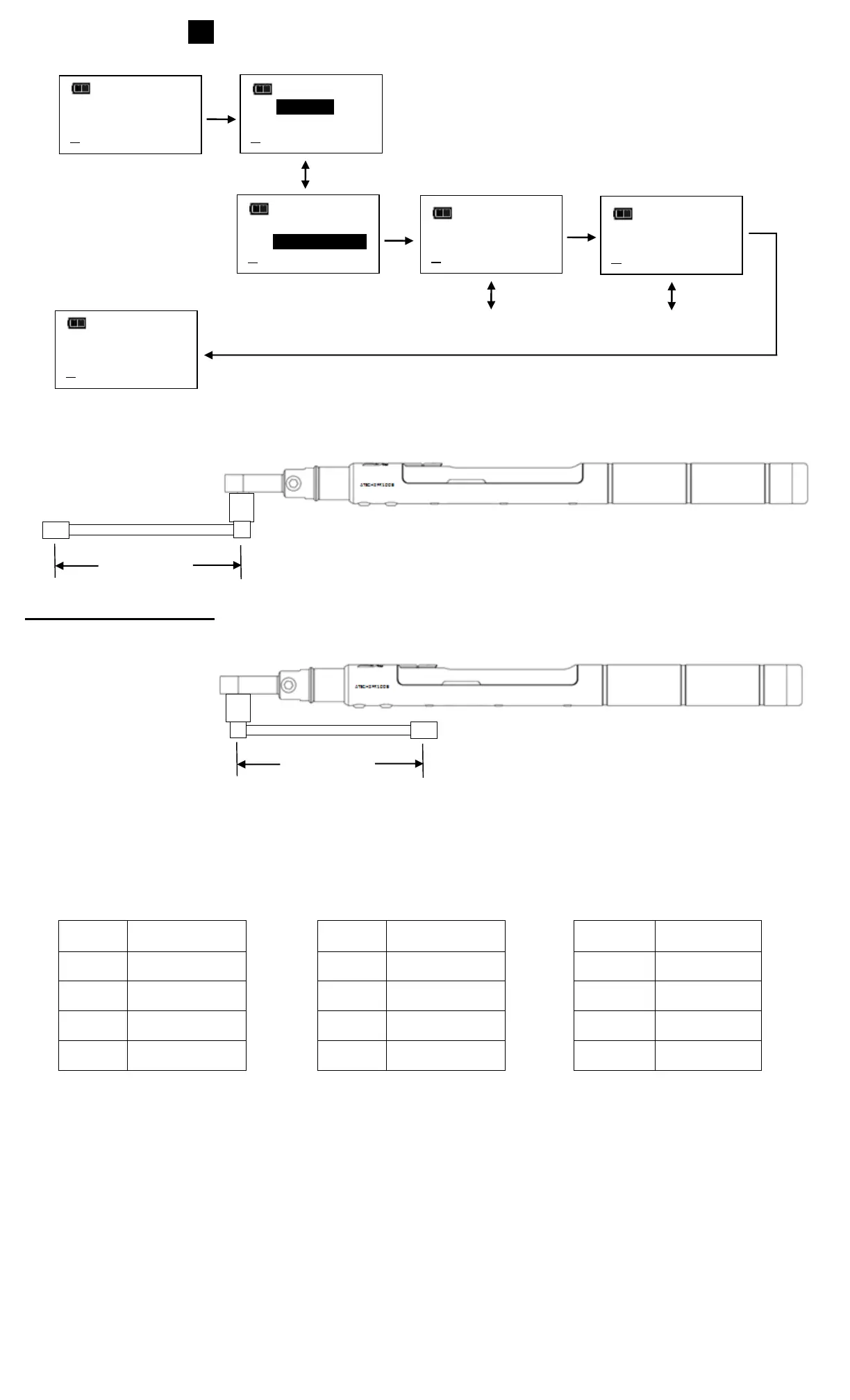

6. Pressing ENTER   button after length is set returns to main menu. If length is changed from
default, "OFFSET IN USE" message will be displayed on target screen.
Note: Head length entered is offset length measured from center of drive to center of fastener.
Use of Negative Offsets
Note: Enter a negative value for offset when used in reverse direction.
When length of an offset is negative, maximum fastener target is limited by following formulas:
100 ft-lb wrench:
Maximum Target Torque =
offset * 8 + 100
250 ft-lb wrench:
Maximum Target Torque =
offset * 12 + 250
600 ft-lb wrench:
Maximum Target Torque =
offset * 14 + 600
Offset
Max Target
Offset
Max Target
Offset
Max Target
-1"
92 ft-lb
-1"
238 ft-lb
-1"
586 ft-lb
-2"
84 ft-lb
-2"
226 ft-lb
-2"
572 ft-lb
-3"
76 ft-lb
-3"
214 ft-lb
-3"
558 ft-lb
-4"
68 ft-lb
-4"
202 ft-lb
-4"
544 ft-lb
Note: When using a negative offset, entering a target torque greater than maximum values above
may cause an overtorque error before reaching fastener target torque and possibly damage
wrench.
EXIT
LANGUAGE
SET HEAD LENGTH
M SHOW DATA
UP/DOWN buttons
݋݂݂ݏ݁ݐ
݋݂݂ݏ݁ݐ
00
M
100.0
FT-LB
00
OFFSET IN USE
M
100.0
FT-LB
ENTER button (after length change)
EXIT
LANGUAGE
SET HEAD LENGTH
M SHOW DATA
SET HEAD LENGTH
M
0.000
IN
M
ENTER
button
held
Target Screen
ENTER
button
UP/DOWN buttons
UNITS
button
SET HEAD LENGTH
M
0.0
MM
M
UP/DOWN buttons
