Scope Multimeter Operations Operations
View Controls
Use the view controls to set display attributes.
z To adjust view controls:
1. Select Setup from the Scope Multimeter toolbar.
The Scope Multimeter Preferences dialog box opens.
2. Select View to open a submenu.
3. Select an option from the submenu dialog box. Option details are explained below.
Four options are available on the submenu:
– Display—use to adjust what information displays and how it appears
– Layout—use to set how many traces display and how they display on the screen
– Units—use to adjust time and voltage interval settings
– Back— use to return to the Preferences dialog box, or select Exit to close the dialog box
and return to the scope.
Display Settings
Selecting Display from the View submenu opens the Display dialog box (Figure 9-14).

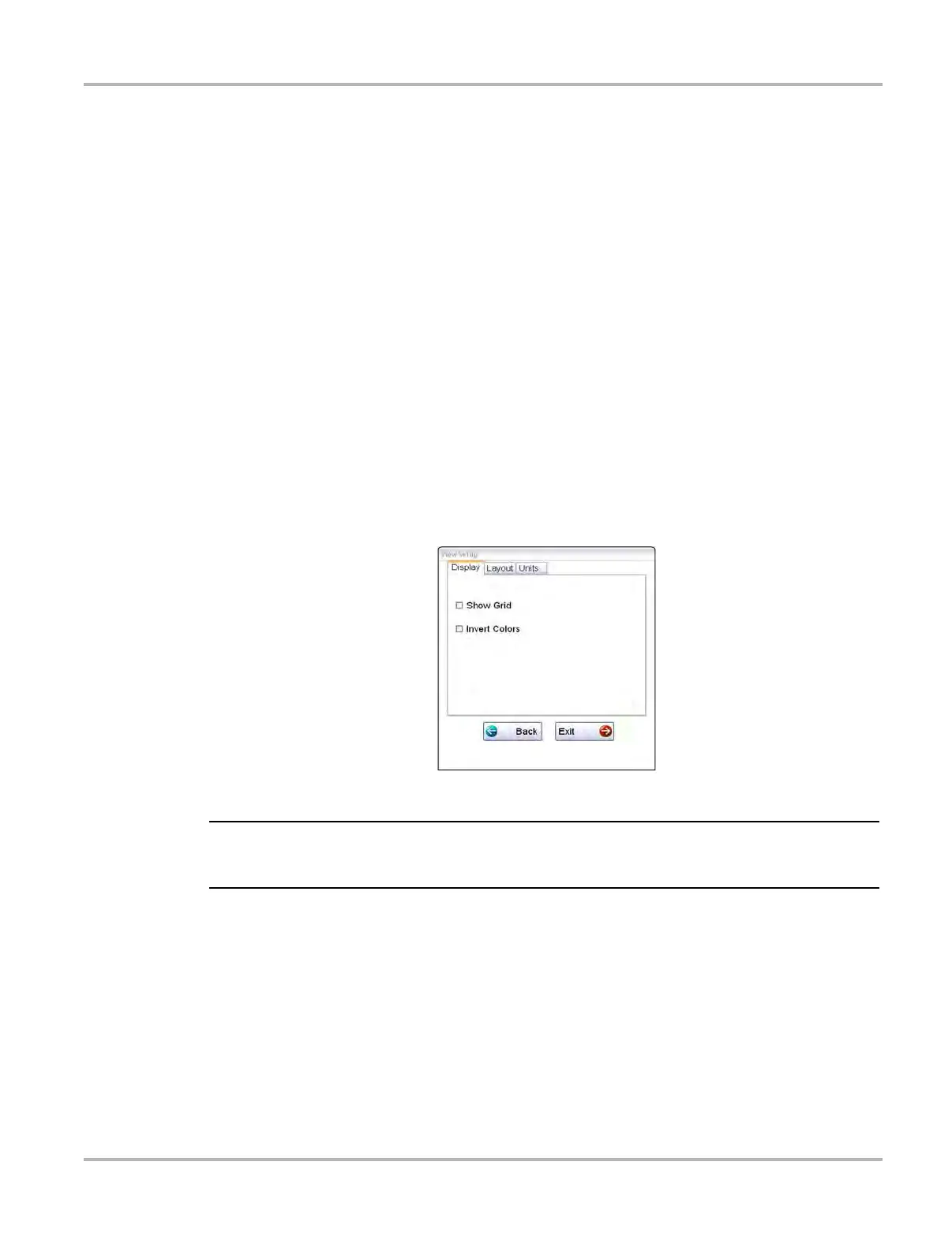

Figure 9-14 Sample Display dialog box
i The tabs on the view setup dialog box allow you to quickly switch between the three available
settings without exiting back to the preferences menu.
The following options are available from the Display dialog box:
• Show Grid—switches grid lines on the screen off and on.
• Invert Colors—switches the screen background to white.
