Maintenance M2 Scope/Meter
Risk of electric shock.
• Prior to recycling the battery pack, protect exposed terminals with heavy insulating tape
to prevent shorting.
• Disconnect all test leads and turn diagnostic tools off before removing the battery pack.
• Do not attempt to disassemble the battery or remove any component projecting from or
protecting the battery terminals.
• Do not expose the Diagnostic Tool or battery pack to rain, snow, or wet conditions.
• Do not short circuit the battery terminals.
Electric shock can cause injury.
Be aware of all applicable safety considerations when replacing, handling, and recycling batteries.
Refer to "Battery Safety Guidelines‚" on page 197 for details.
z To replace the battery pack:

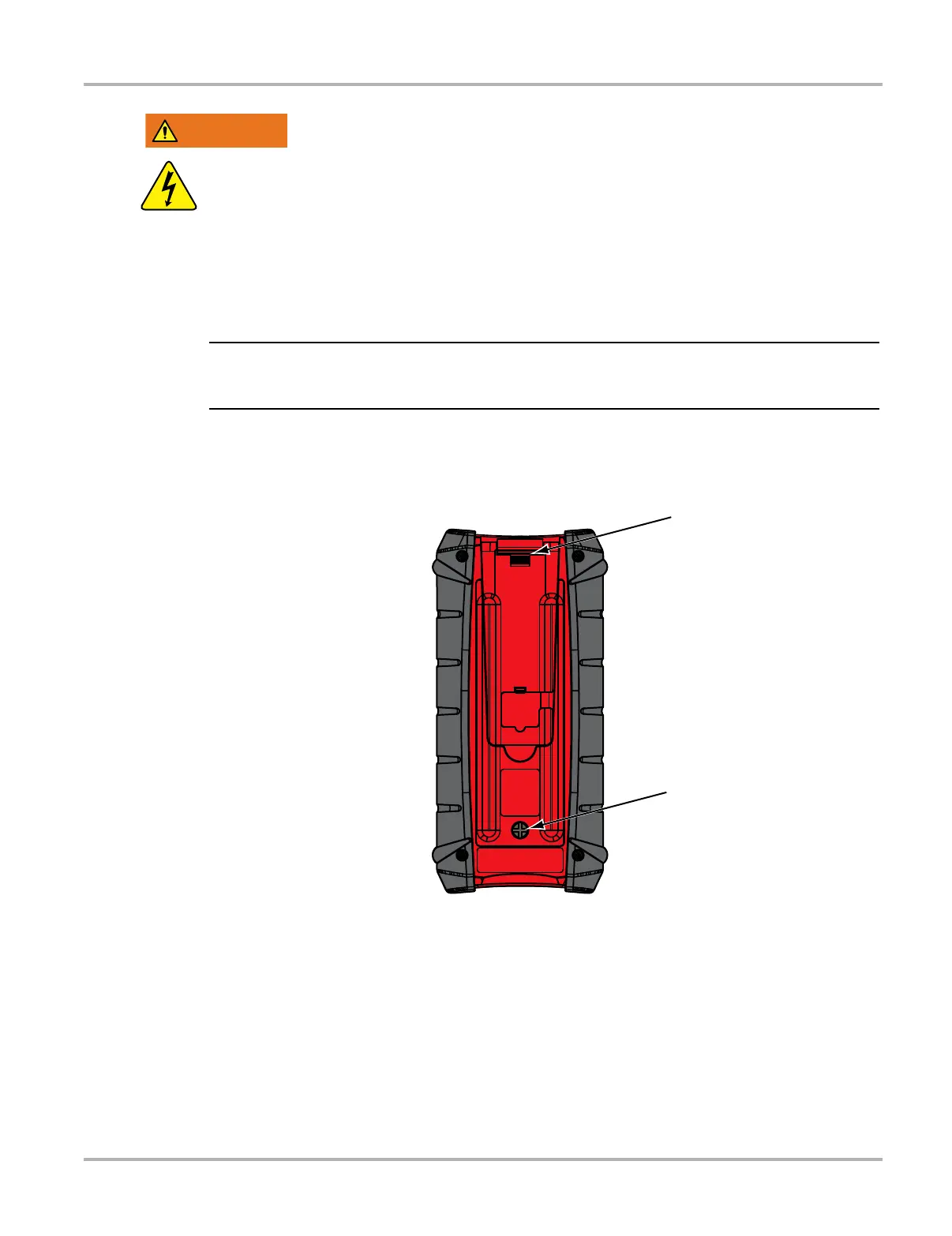

1. Refer to Figure 17-8:
1— Hanger Catch
2— Captive Screw
Figure 17-8 M2 Scope/Meter battery pack replacement
2. Press to release the hanger catch on the back of the M2 Scope/Meter (Figure 17-8), then
swing the hanger up (180º) so that it is fully extended.
3. Loosen the captive screw that secures the battery cover (Figure 17-8).
4. Remove the battery cover.
5. Remove the battery pack from the M2 Scope/Meter housing to access the electrical
connector.
