Snapmaker Enclosure
|
13
Enclosure Assembly
05
/28

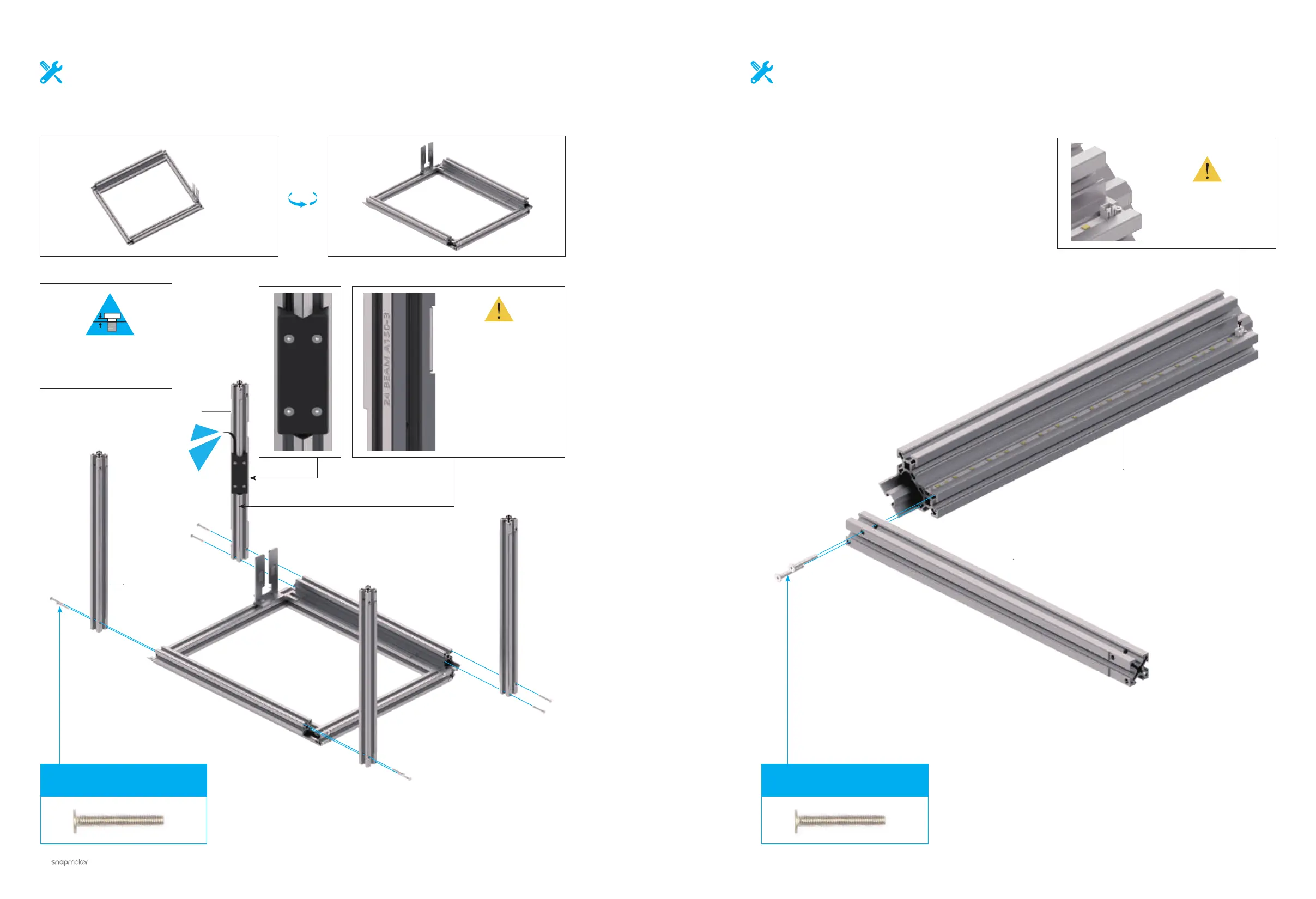

Attach four 24 Beams.
24 BEAM A150-2
× 3
STEP 04
06
/28
Assemble the top rectangular frame – 1.
24 BEAM A150-1
× 1
48CA BEAM A150-1
× 1
90°
Do not tighten the
screws until Step 9.
M4 × 28 Hex Socket Short Head
Screw
× 8
1:1
Make sure to place
the 24 BEAM A150-
3 in accordance
with the direction
of the text, with the
Hall Switch’s outer
covering towards the
inside.
M4 × 28 Hex Socket Short Head
Screw
× 2
1:1
24 BEAM A150-3
× 1
Notice the position of
the LED Strip Port.
