Snapmaker Enclosure
|
15
Enclosure Assembly
08
/28

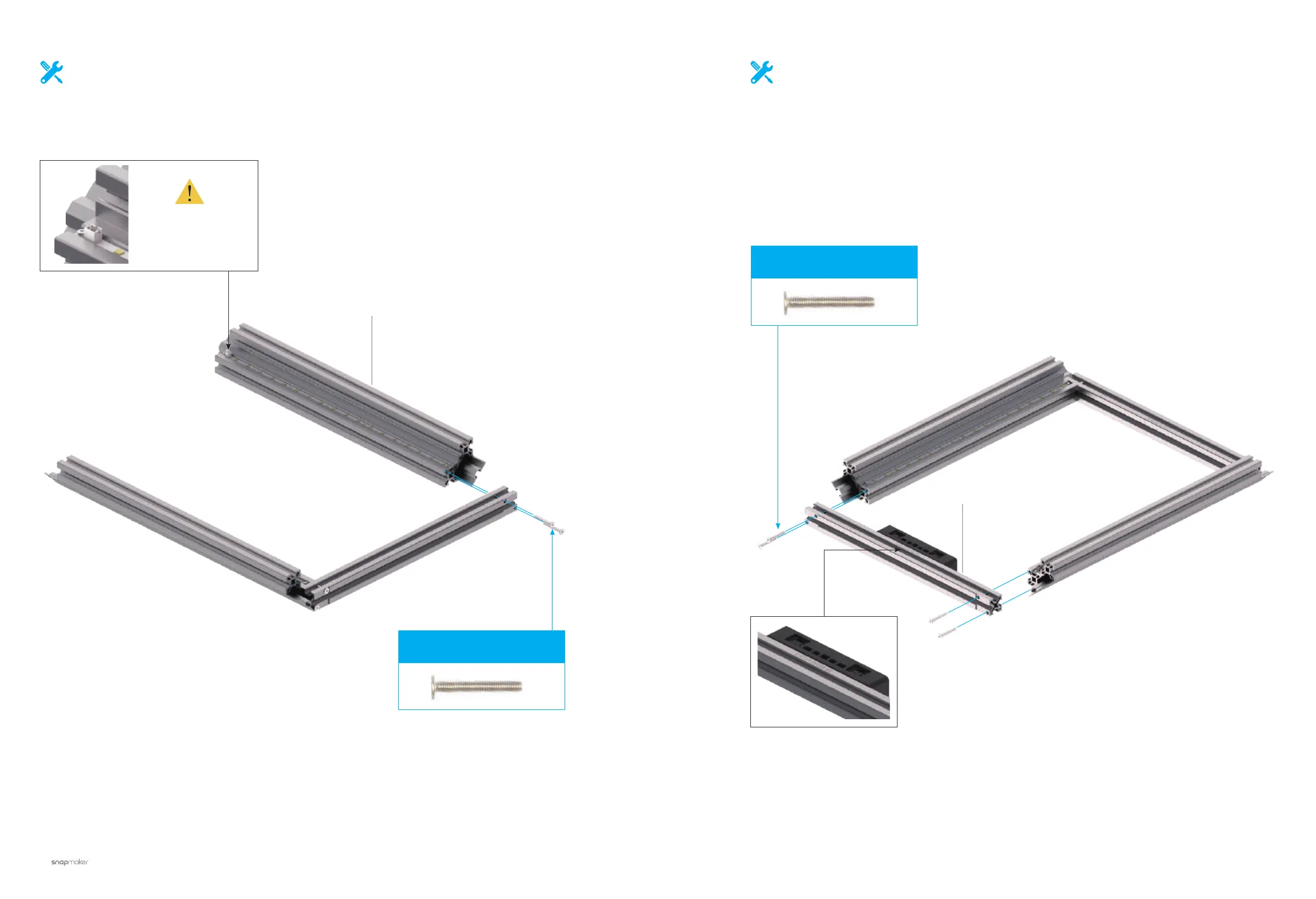

Assemble the top rectangular frame – 3.
07
/28
Assemble the top rectangular frame – 2.
48CA BEAM A150-1
× 1
24 BEAM A150-1
× 1
M4 × 28 Hex Socket Short Head
Screw
× 2
1:1
M4 × 28 Hex Socket Short Head
Screw
× 4
1:1
Notice the position of
the LED Strip Port.
