Snapmaker Enclosure
|
17
Enclosure Assembly
09
/28

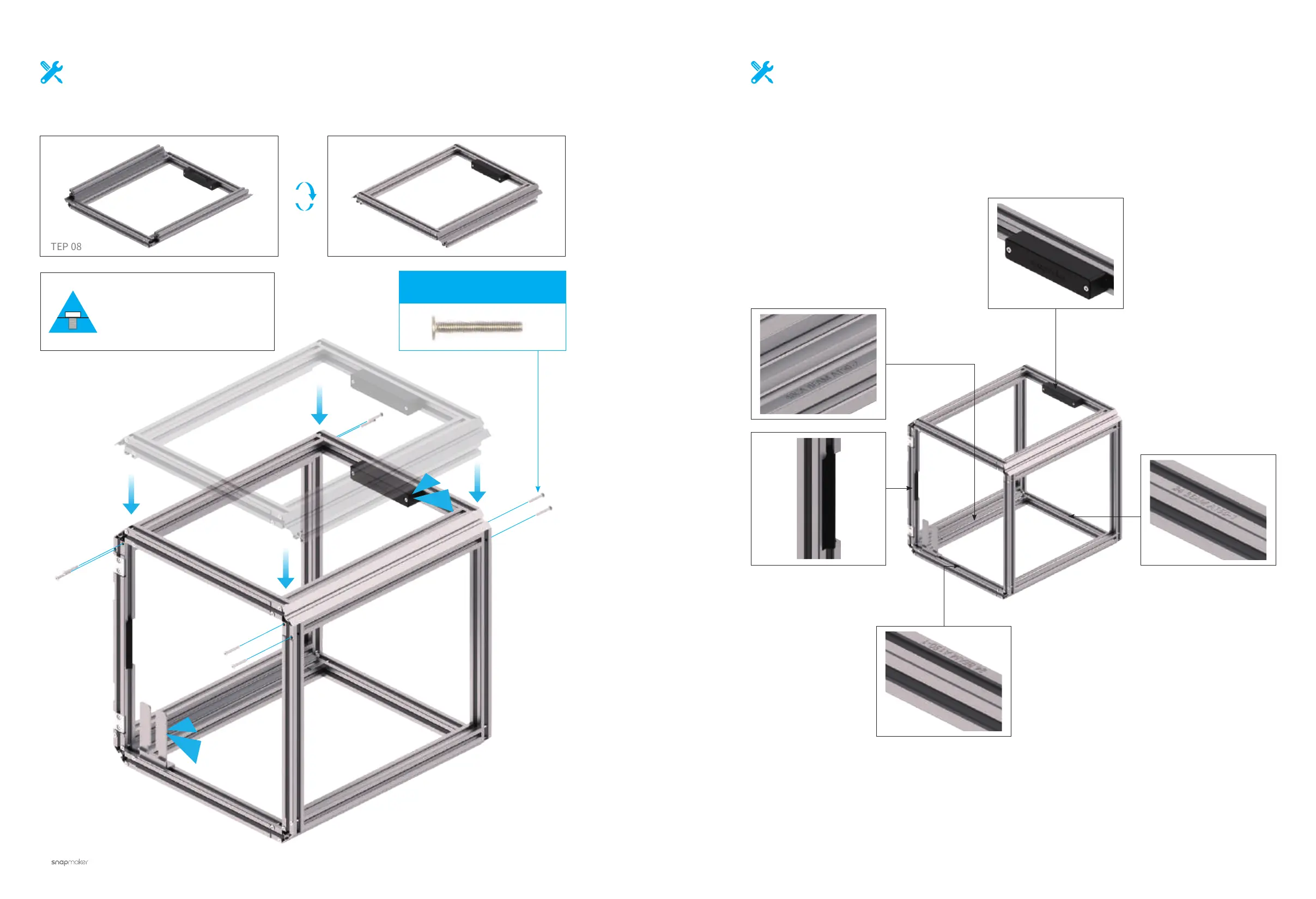

Fix the top rectangular frame.
STEP 08
10
/28
Make sure the Enclosure frame is properly assembled by checking the
features below.
180°
M4 × 28 Hex Socket Short Head
Screw
× 8
1:1
Attach 8 M4 × 28 screws, and
tighten all the 16 M4 × 28
screws that are attached in
Step 5 and Step 9.
To Next Page
