Snapmaker Enclosure
|
19
Enclosure Assembly
11
/28

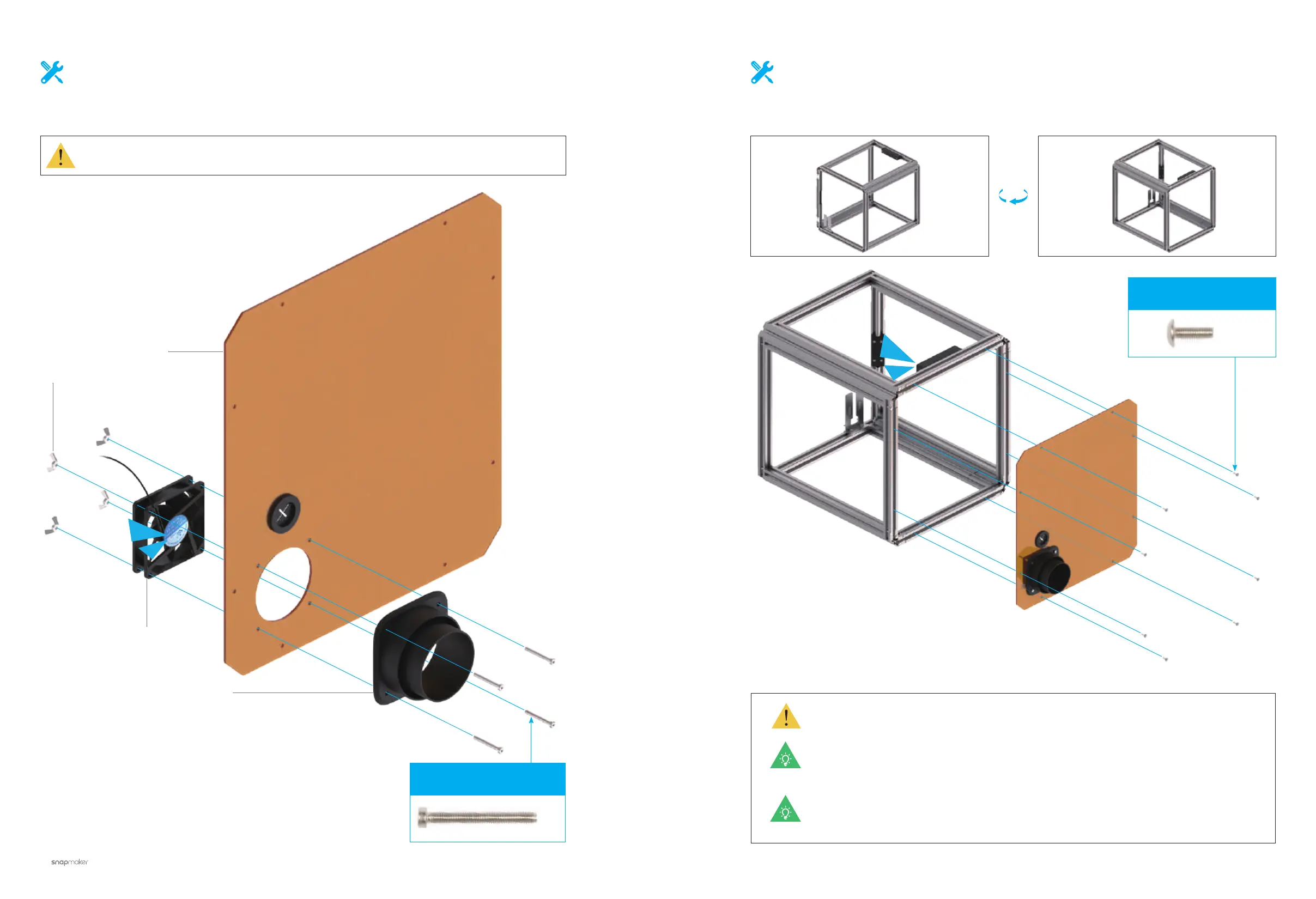

Assemble the Back-Panel Kits.
12
/28
Fix the Back-Panel Kits to the frame.
STEP 09
M4 × 35 Hex Socket Head
Screw
× 4
Back Panel × 1
80×20 Exhaust Fan × 1
Exhaust Duct Connector × 1
1:1
Be sure to put the labeled side of the Exhaust Fan against the Back Panel, with the fan's cable
outlet facing up, otherwise the fan will not work properly.
M4 Wing Nut × 4
1:1
M4 × 12 Hex Socket Round
Head Screw
× 8
90°
Do not tighten the screws excessively lest the acrylic boards should be damaged.
It's recommended not to tighten the screws until all 8 screws are attached onto the
frame.
When having difficulty in aligning the Back Panel's screw holes with those of the frame,
it's suggested to slightly loosen the screws that are attached in Step 5 & Step 9 and fine-
tune the shape of the frame.
