Snapmaker Enclosure
|
31
Enclosure Assembly
23
/28

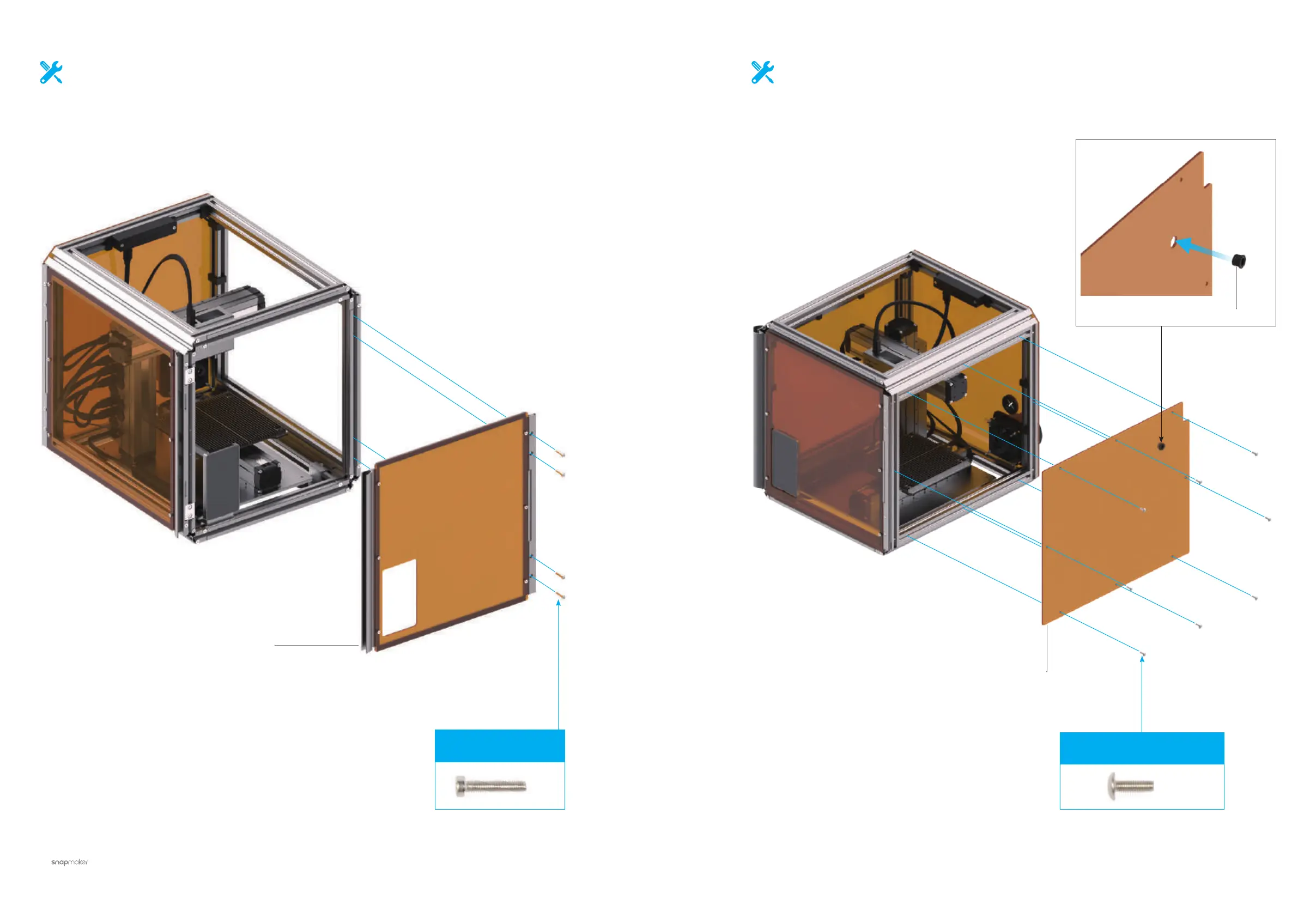

Align the Front Door with the front face of the frame, then fix the Front
Door with screws.
24
/28
Attach the Side Panel.
1:1
M4 × 20 Hex Socket Head
Screw
× 4
Front Door × 1
Side Panel × 1
1:1
M4 × 12 Hex Socket Round Head
Screw
× 8
Snap Bushing ×
1
