Assembling the Machine
Y-axis Linear Module × 1
03
/37

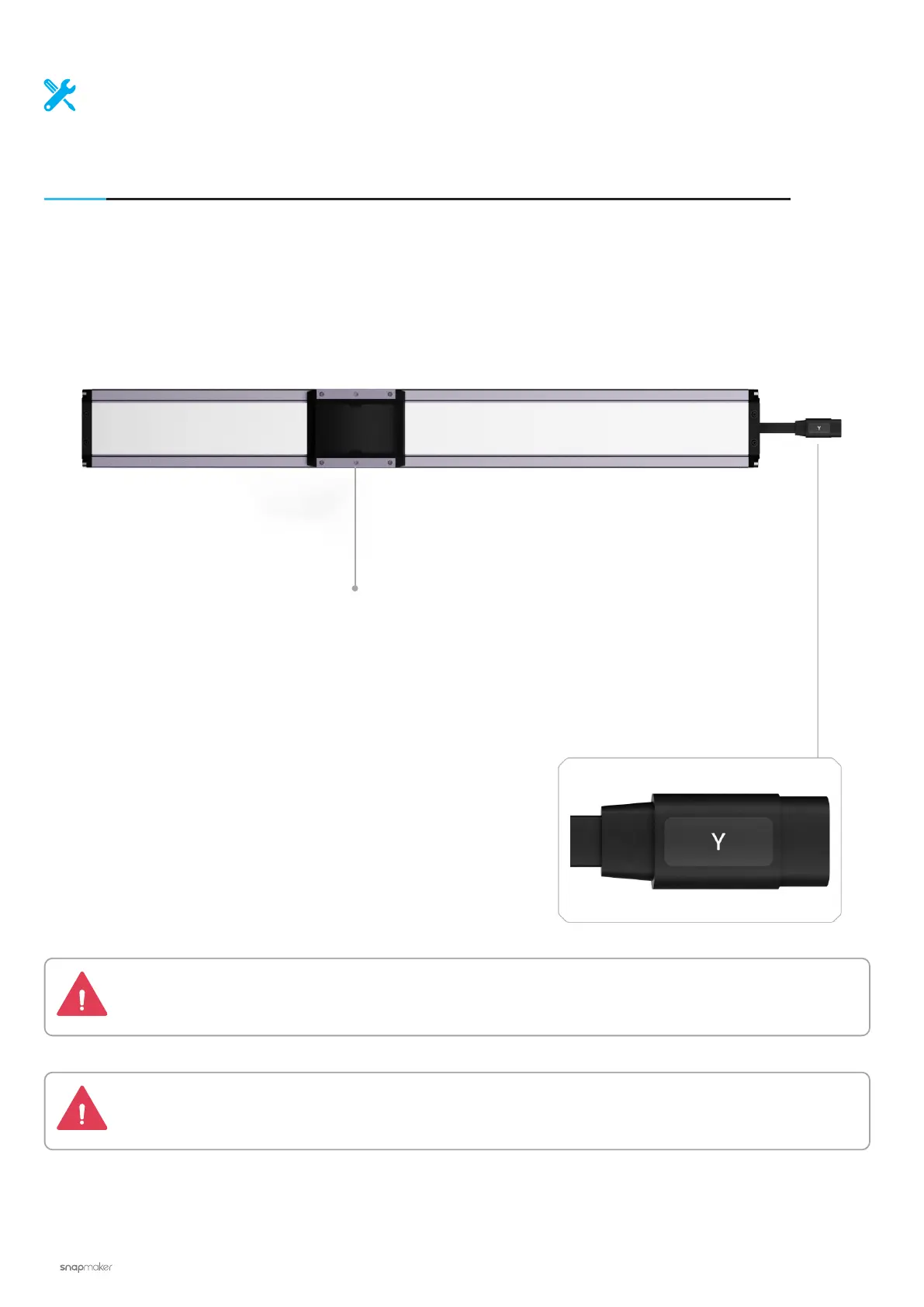

Identify one Linear Module labeled with "Y" on the cable connector. It will
be the left Y axis.
Take care to avoid injury from sharp edges of the steel strip.
Do not press the steel strip.
