Figure 15. Arbor Lubrication
(3-Blade Model Shown, All Models Similar)
Figure 14. Mower Lubrication - 42” Deck
Lubrication
Lubricate the unit at the locations shown in Figures 13
through 18 as well as the following lubrication points.
Grease:
 •frontwheelgreasefittings
 •frontwheelbushings
 •mowerpivots
 •mowerarbors
Use grease fittings when present.
Not all greases are compatible. Use automotive-type
lithium grease.
Oil:
 •hydrolinkage
 •brakelinkage
 •mowerdeckheightadjustmentlinkage
 •groundspeedcontrollinkage
Generally, all moving metal parts should be oiled where
contact is made with other parts. Keep oil and grease
off belts and pulleys. Remember to wipe fittings and
surfaces clean both before and after lubrication.

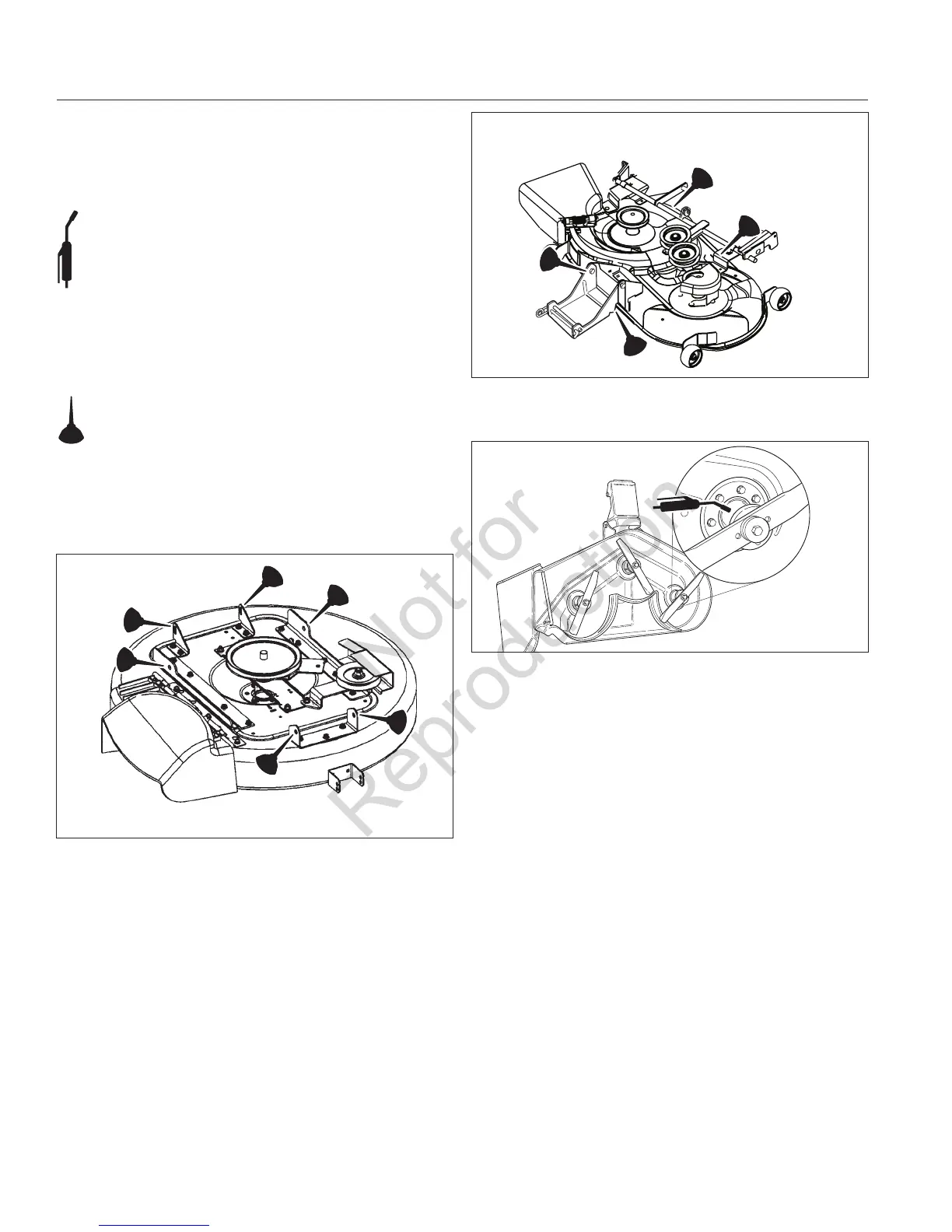

Figure 13. Mower Lubrication - 33” Deck
