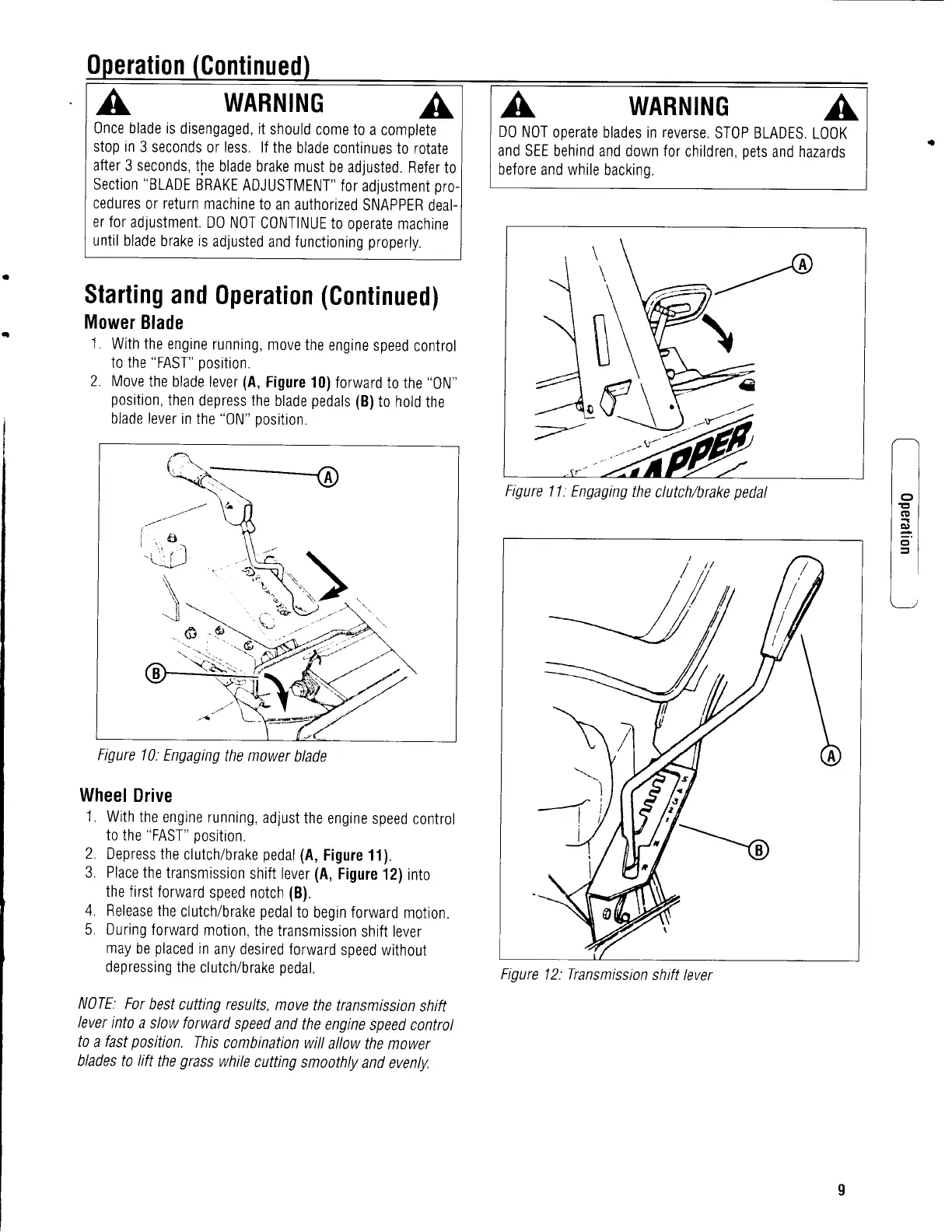

WARNING
0nce blade is
disengaged,
it
should
come to a
complete
stop in
3 seconds
or less. lf
the
blade continues
to rotate
after 3 seconds,
the
blade
brake must
be adlusted.
Refer
to
Section
"BLADE
BRAKE
ADJUSTMENT"
for
adjustment
pro-
cedures
or return
machine to
an
authorized
SNAPPER
deal-
er for
adlustment.
D0 NOT
C0NTINUE
to
operate machine
until blade
brake is
adjusted
and functioning
properly.
Starting
and
0peration
(Continued)
Mower
Blade
1.
With the
engine
running,
move the
engine
speed
control
to the
"FAST"
oosition.
2. Move
the
blade lever
(A,
Figure
10)forward
to the
"0N"
position,
then
depress the
blade
pedals
(B)
to hold
the
blade lever
in the
"0N"
oosition.
Wheel
Drive
1. With
the
engrne running,
adjust
the
engine
speed control
to the
"FAST"
oosition.
2.
Depress the
clutch/brake
pedal
(A,
Figure 11).
3. Place the
transmission
shift lever
(A,
Figure
12)
into
the first
forward
speed notch
(B).
4. Release
the
clutch/brake
pedal
to
begin forward
motion.
5. During forward
motion,
the
transmission
shift lever
may
be
placed
in
any desired
forward
speed
without
depressing
the
clutch/brake
pedal.
N}TE:
For
best cutting results,
move the
transmission
shift
lever
into
a
slow
forward
speed
and the
engine
speed control
to
a
fast
position.
This
combination
will
allow the
mower
blades to lift
the
grass
while
cutting
smoothly
and
evenly.
WARNING
D0
NOT
operate blades in reverse.
STOP BLADES.
L00K
and SEE
behind and
down
for
children,
pets
and hazards
before
and while
backing.
Figure
12: Transmission
shtft lever
f-l
lt
lo
lE I
l(Dl
lqt
l=i
I
l.
-
Figure
1 1: Engaging
the
clutch/brake
pedal
Figure 10:
Engaging
the mower
blade
