snom D7 User Manual Setting up the Expansion Module
Setting up the expansion module

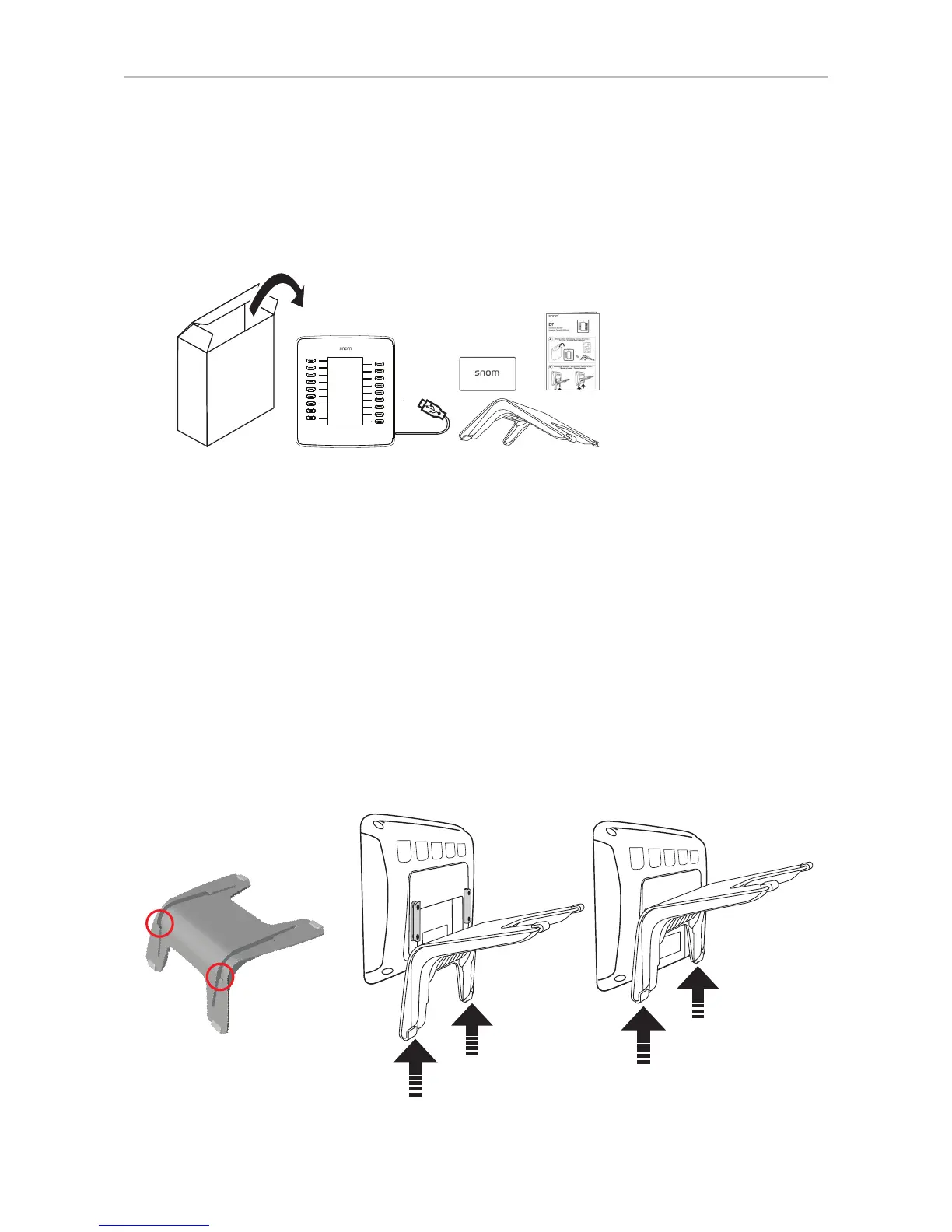

Delivery Content
◦ Base unit with attached USB cable with type A plug
◦ Footstand
◦ Connector
◦ Quick Installation Guide
Attaching the footstand
The footstand can be attached at two dierent angles: 28° and 46°.
1. Place the top of the grooves on the footstand (Fig. 1) below the slideguides on the back of the
device (Fig. 2). For the upright position, the short "legs" of the footstand must be attached to the
device; for the more horizontal position, use the long ones.
2. Push the footstand upwards onto the slideguides until they lock in place (Fig. 3).
Fig./Abb. 1 Fig./Abb. 2 Fig./Abb. 3
3. Place the device on an even, horizontal surface.
