SnowEx Bulk-Pro 1875 - Page 18

© Trynex International 2009 L1040
7 — 18

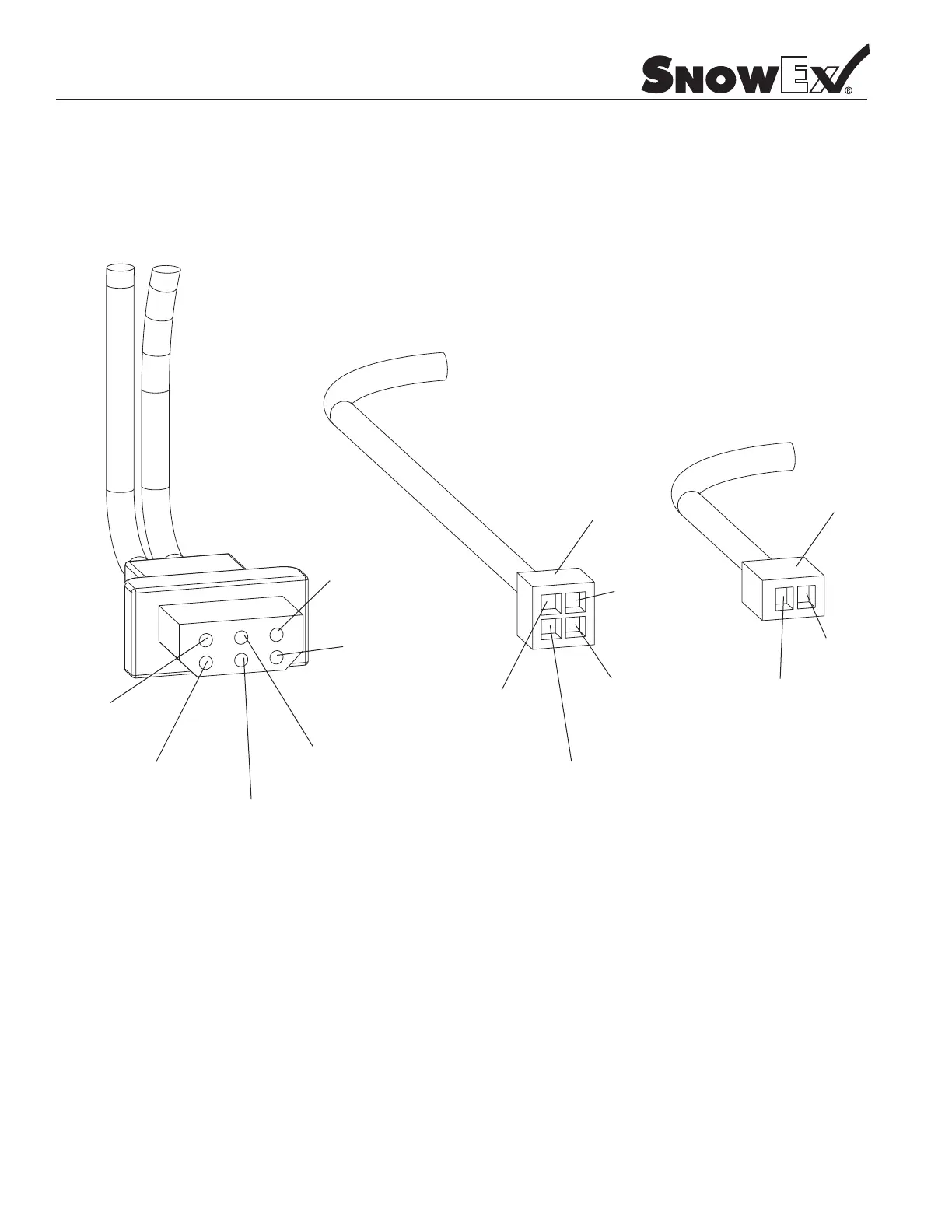

Vehicle Harness Diagram
Model # SP-1875
VIBRATOR
Black Negative (–)
VIBRATOR
White Positive (+)
AUGER
Green Negative (–)
AUGER
Red Positive (+)
SPINNER
Black Negative (–)
SPINNER
White Positive (+)
Red
Positive (+)
White Wire
Black
Negative (–)
Black Wire
Anderson
Block
(2) Pos
Anderson
Block
(4) Pos
AUGER OUTPUT
(housing)
Red Positive (+)
Red Wire
AUGER OUTPUT
(housing)
Black Negative (–)
Green Wire
SPINNER OUTPUT
(housing)
Red Positive (+)
White Wire
SPINNER OUTPUT
(housing)
Black Negative (–)
Black Wire
BUMPER
PLUG
CONTROL
OUTPUT PLUG
SPINNER/AUGER
CIRCUIT
VIBRATOR
CIRCUIT
OUTPUT
* NOTE: Reference Bumper Plug for Color Code
Rev. 05
