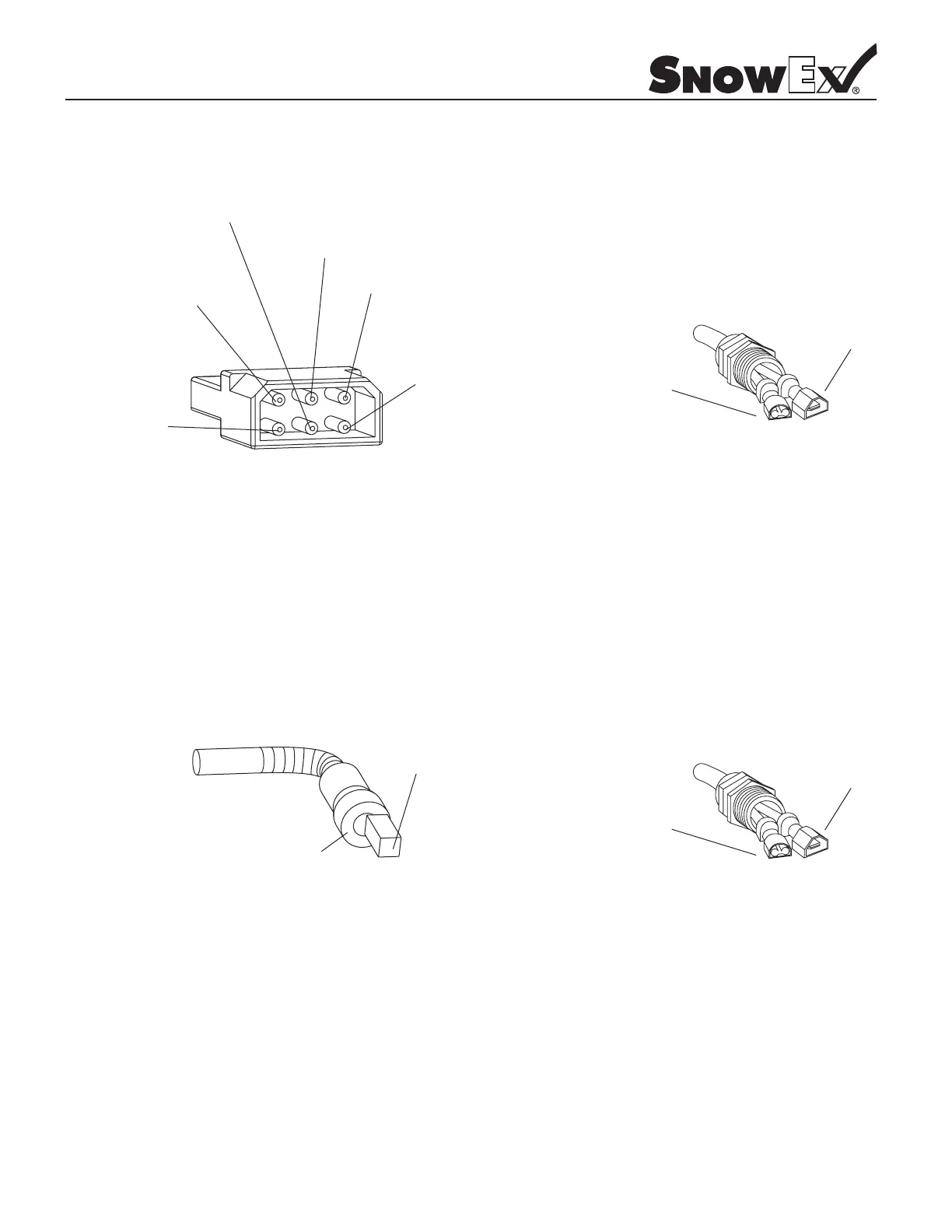

Spreader Harness Diagram
Model # SP-1875
SPINNER
White Positive (+)
MAIN POWER PLUG
SPREADER
SPINNER
Black Negative (–)
AUGER
Red Positive (+)
AUGER
Green Negative (–)
VIBRATOR
White Positive (+)
VIBRATOR
Black Negative (–)
AUGER POWER
CONNECTION
Red
Positive (+)
Black
Negative (–)
White
Positive (+)
Black
Negative (–)
VIBRATOR
POWER PLUG
SPINNER POWER
CONNECTION
Red
Positive (+)
Black
Negative (–)
