Programming
Controller ATyS
OPERATION
53
SOCOMEC - Réf.: 532 214 C

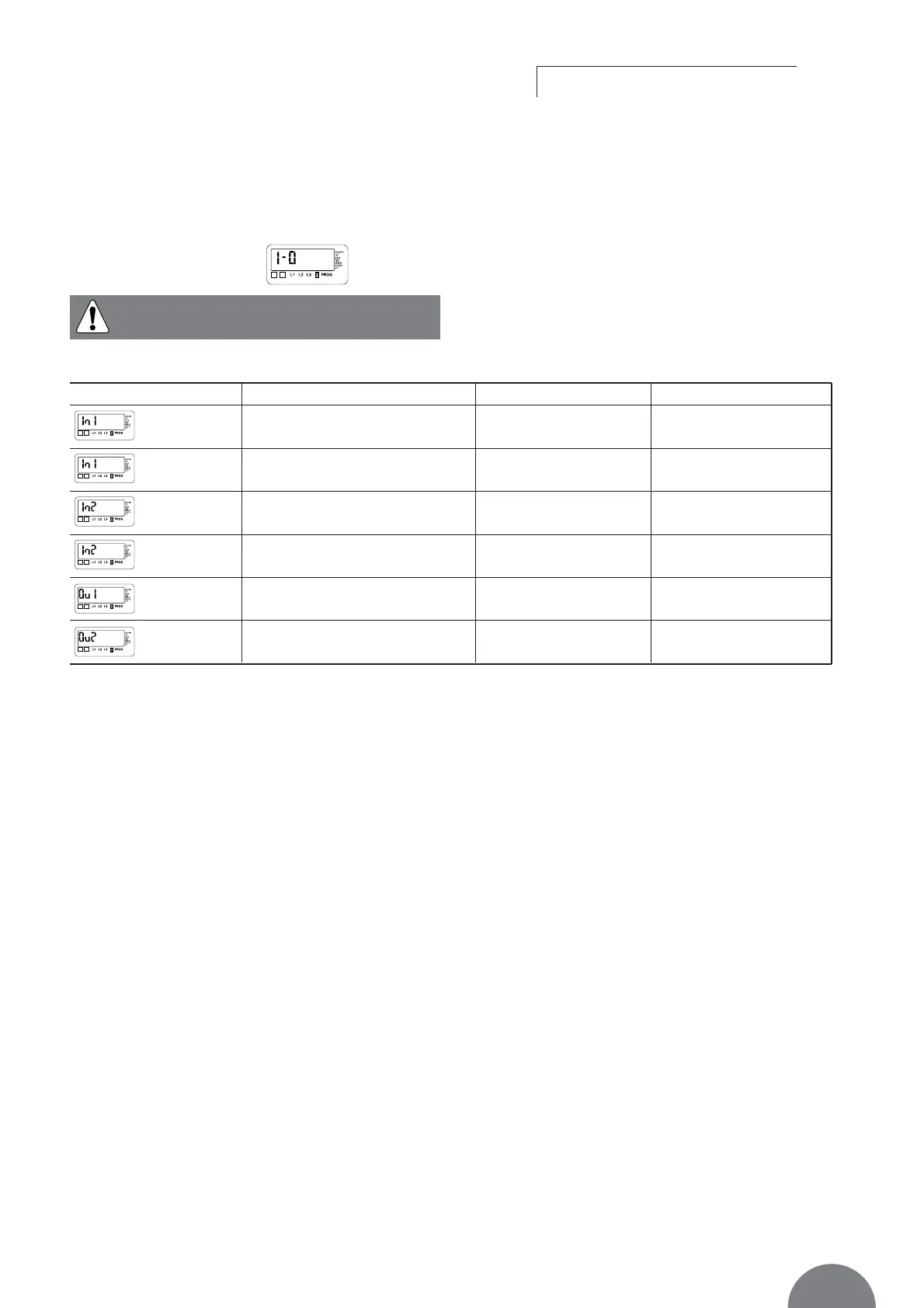

LCD Denomination/ Definition Setting range Default values
Input 1 Ft1, Ft2, Ft3, Ft4, Pri, Mtf,/ /
S2A, MAN, CtS, tol, tfl, EJP
Input 1state NO, NC, / NO
Input 2 Ft1, Ft2, Ft3, Ft4, Pri, Mtf,/ /
S2A, MAN, CtS, tol, tfl, EJP
Input 2 state NO, NC, / NO
Output 1 S1A, S2A, LS, / /
Output 2 S1A, S2A, LS, / /
Input state can be configured: NC or NO.
1 2
1 2
1 2
1 2
1 2
1 2
Output relays are NO type (construction) and
can not be configured as NC.
1 2
> Inputs/Outputs Menu
